Front Brake Speed Sensor: Removal

Turn Over Fender Liner
Remove Speed Sensor
1. Disconnect the sensor connector from the sensor harness.
2. Remove the sensor connector from the body.
3. Remove the harness clamp from the body.
4. Remove the 4 bolts and sensor.

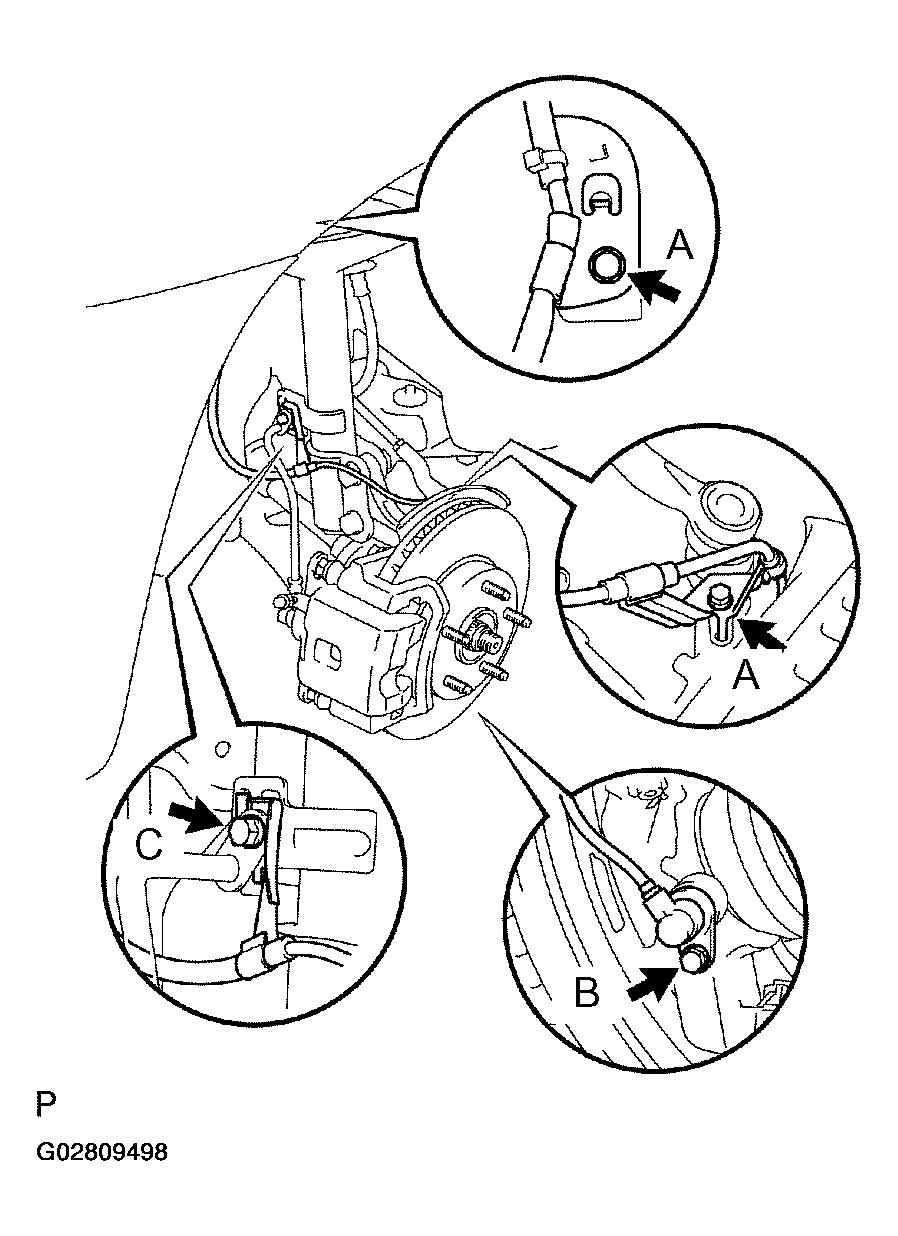

  Fig 1: Removing Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:

  Bolt A: 5.0 N.m (52 kgf.cm, 41 in..lbf)

  Bolt B: 8.0 N.m (82 kgf.cm, 71 in..lbf)

  Bolt C: 18.5 N.m (189 kgf.cm, 14 ft.lbf)
