Rear Brake Speed Sensor: Components

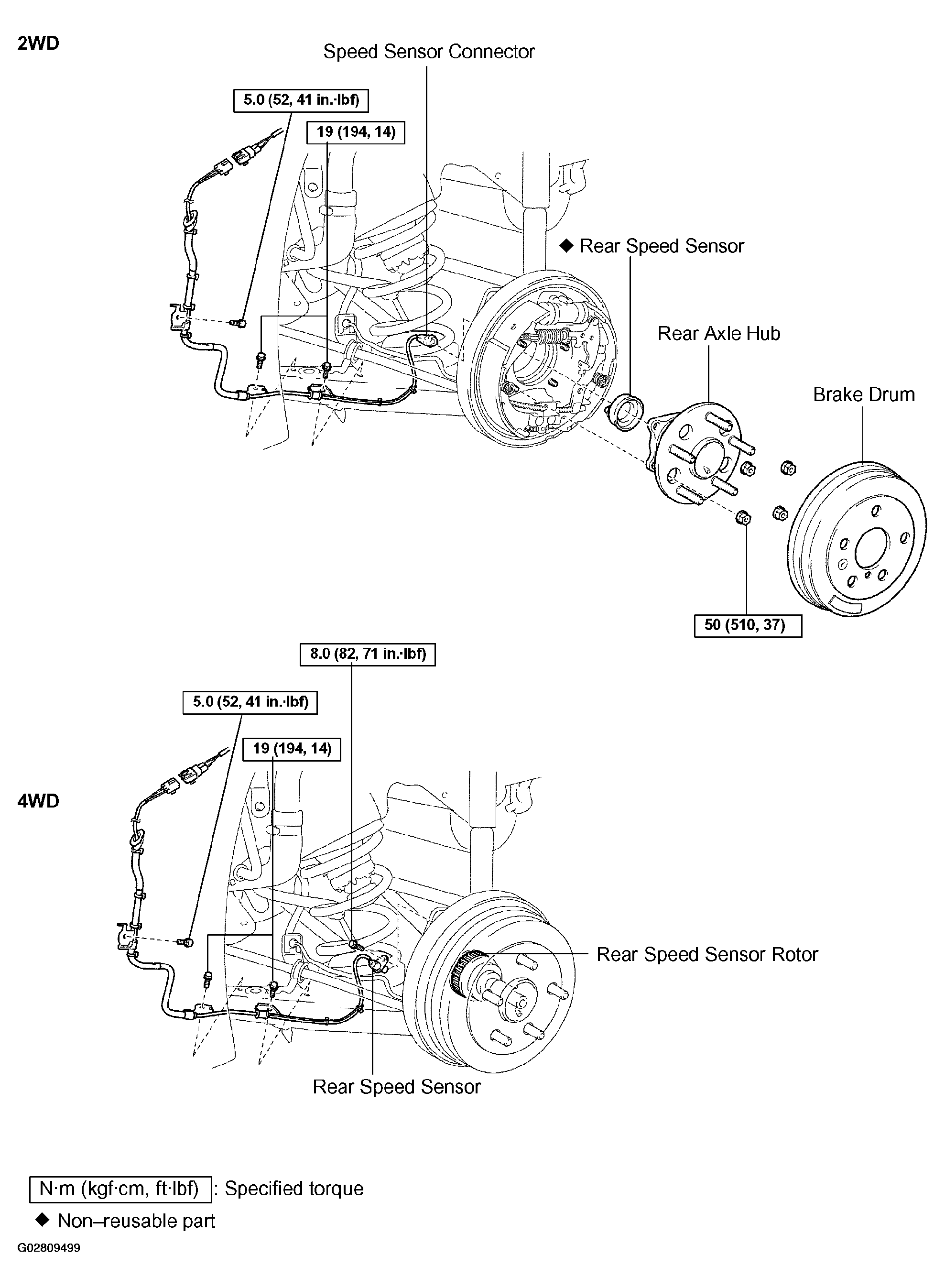

Fig 1: Identifying Components For Rear Speed Sensor Removal
G02809499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
