Diagnostic Trouble Code Chart

Diagnosis Trouble Code
Door ECU (Driver's Side)

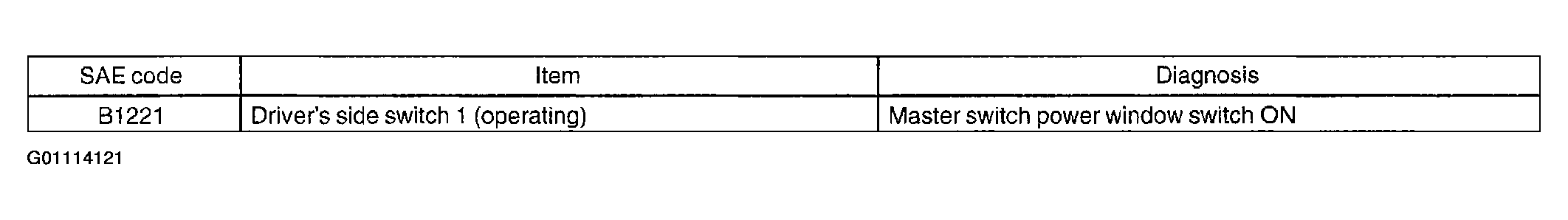

Fig 1: Reviewing Door ECU Information
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Monitor Code
NOTE:
- Monitor code shows the switch condition when a DTC is output.
- When a code is indicated while the switch is not operated, the switch is detected being stuck. When a code is not indicated while the switch is operated, it is detected that the switch contact condition is bad.
Fig 2: Reviewing Monitor Code Information
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
