Charging System - Generators & Regulators: Generator: Components

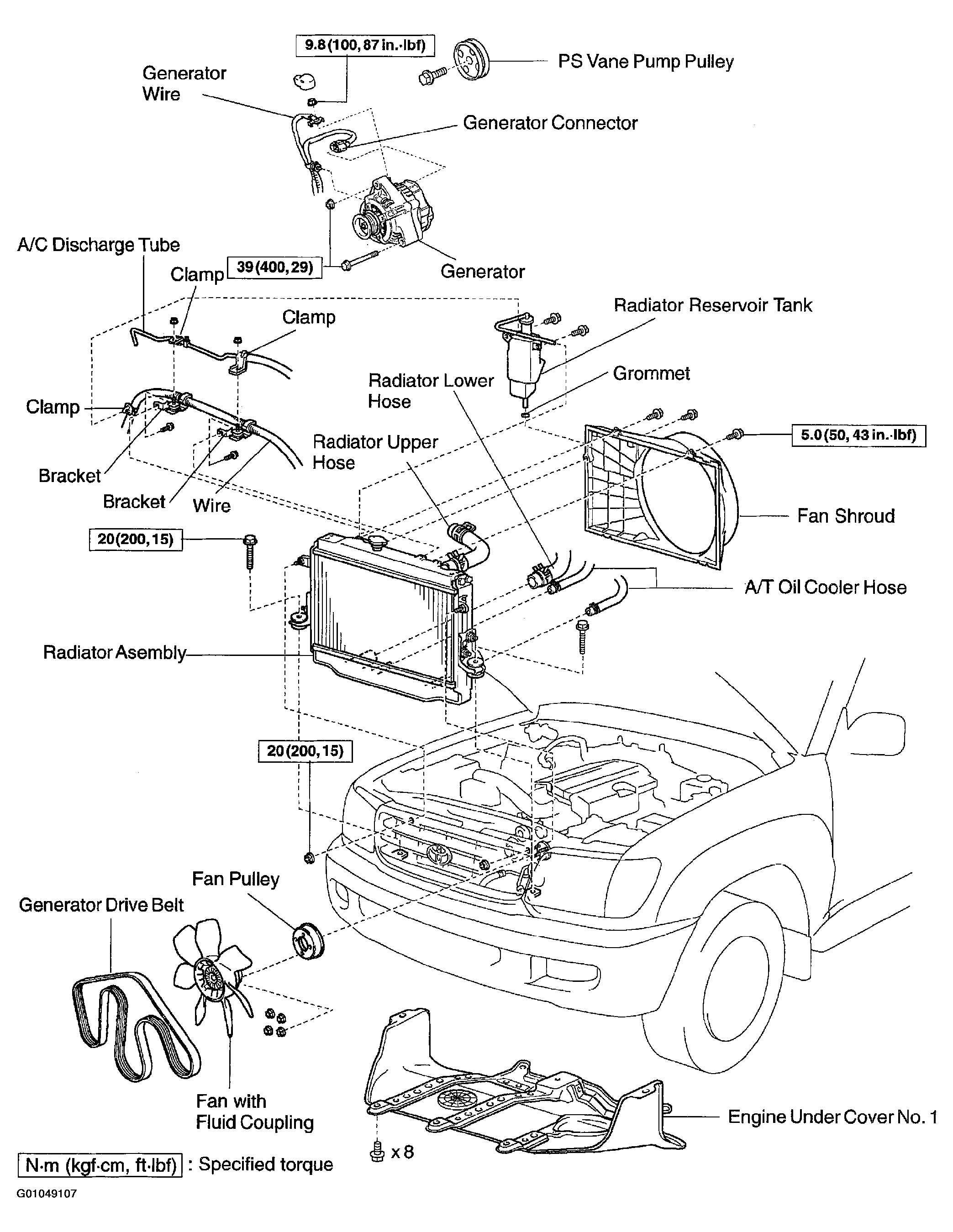

Fig 1: Identifying Components For Generator Removal
G01049107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

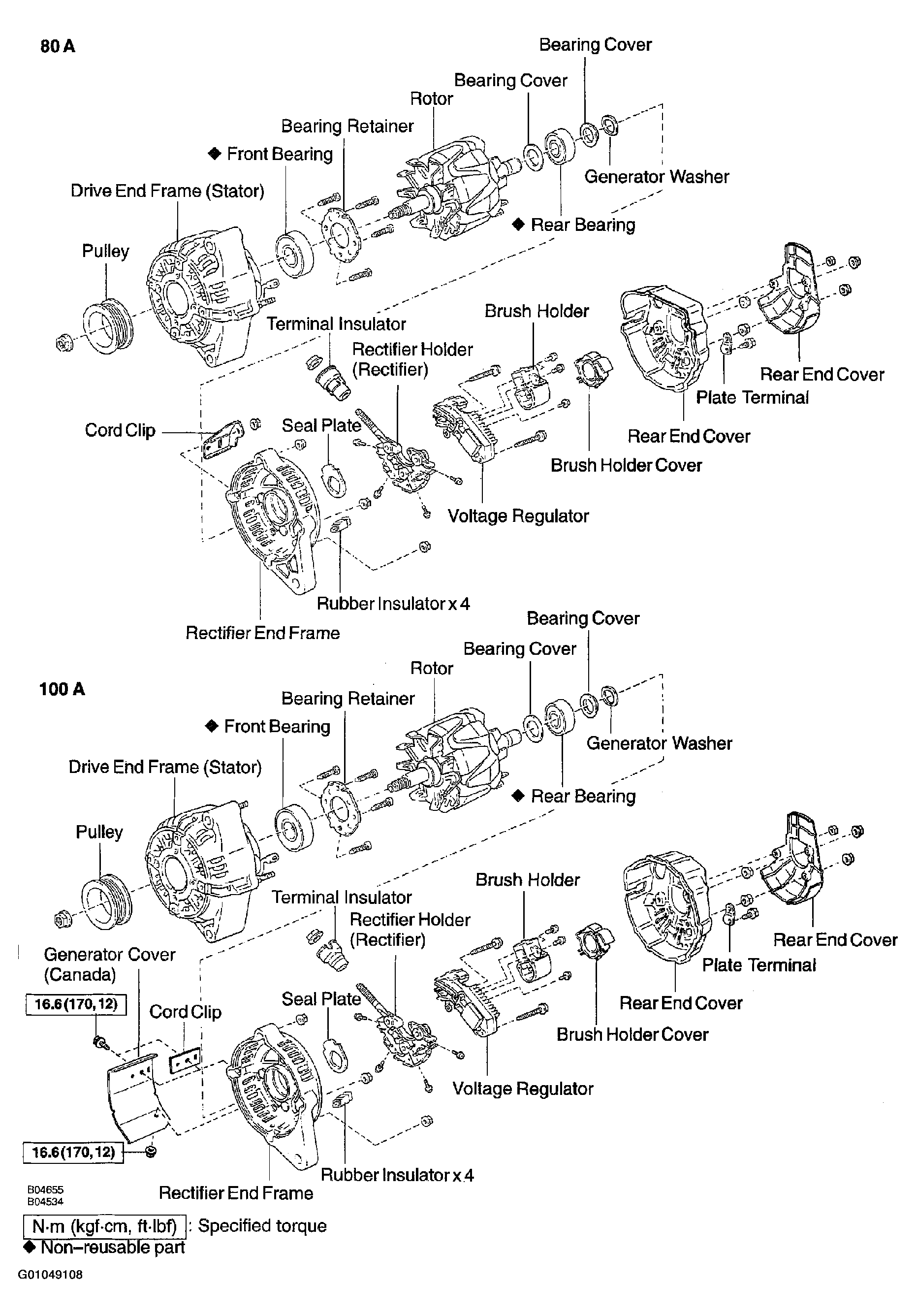

Fig 2: Exploded View Of Alternator
G01049108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
