Power Window Control Switch Circuit: Wiring Diagram

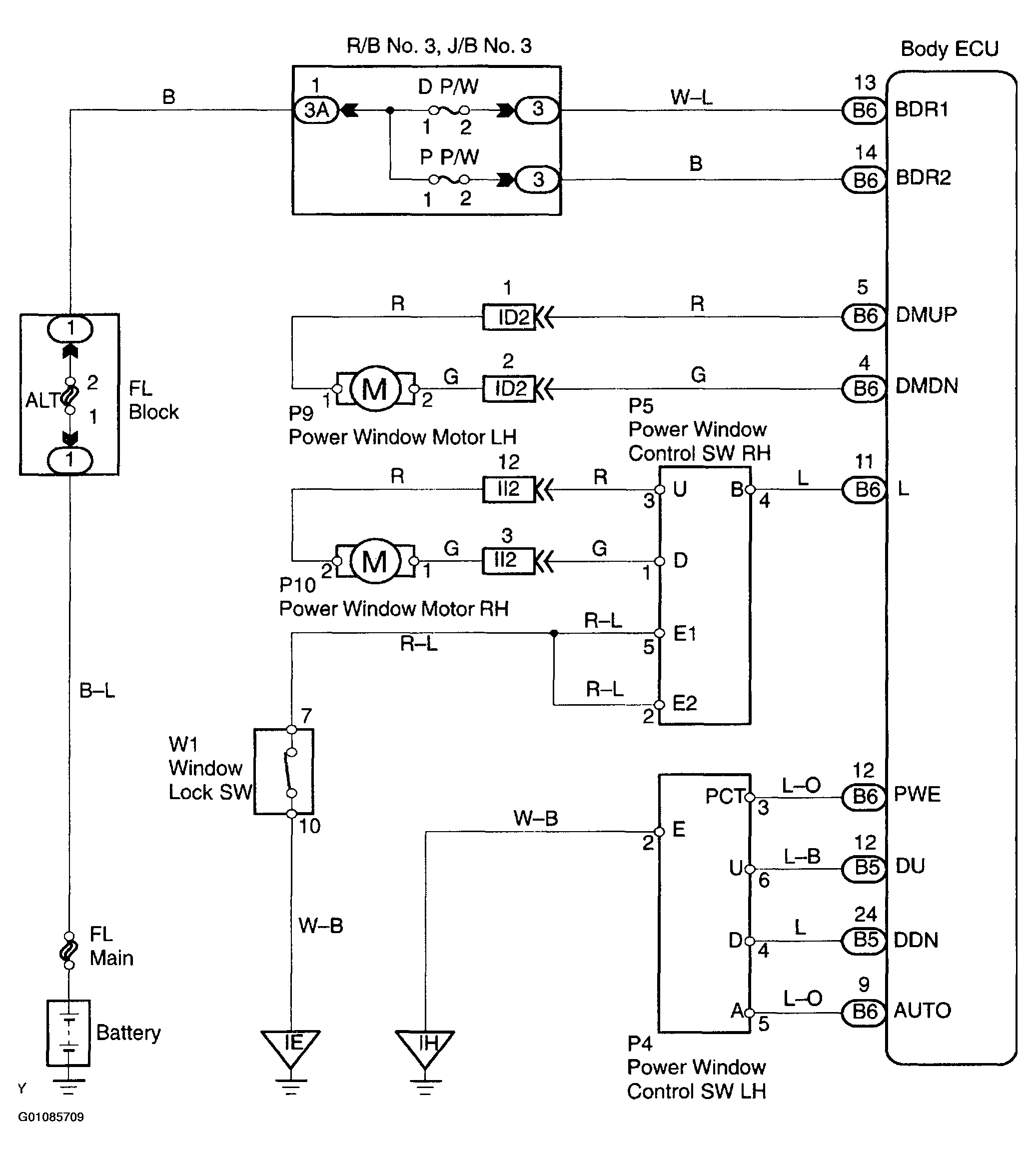

Fig 1: Displaying Power Window Control Switch Circuit
G01085709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
