Terminals Of Ecu

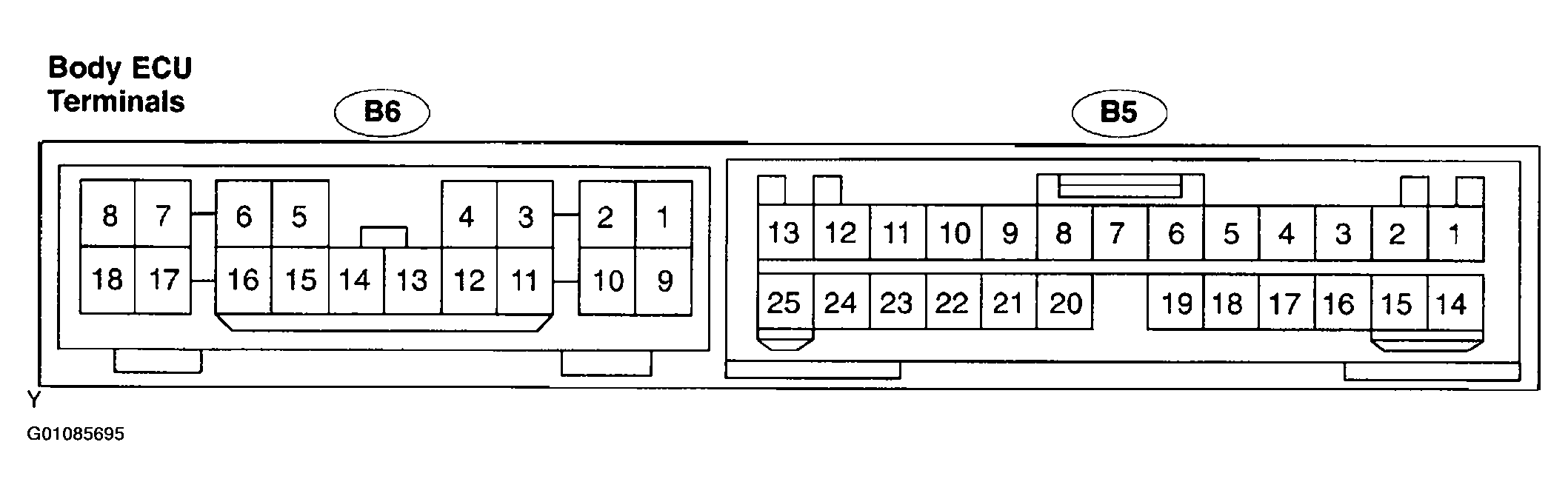

Fig 1: Identifying Body ECU Connectors & Terminals
G01085695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

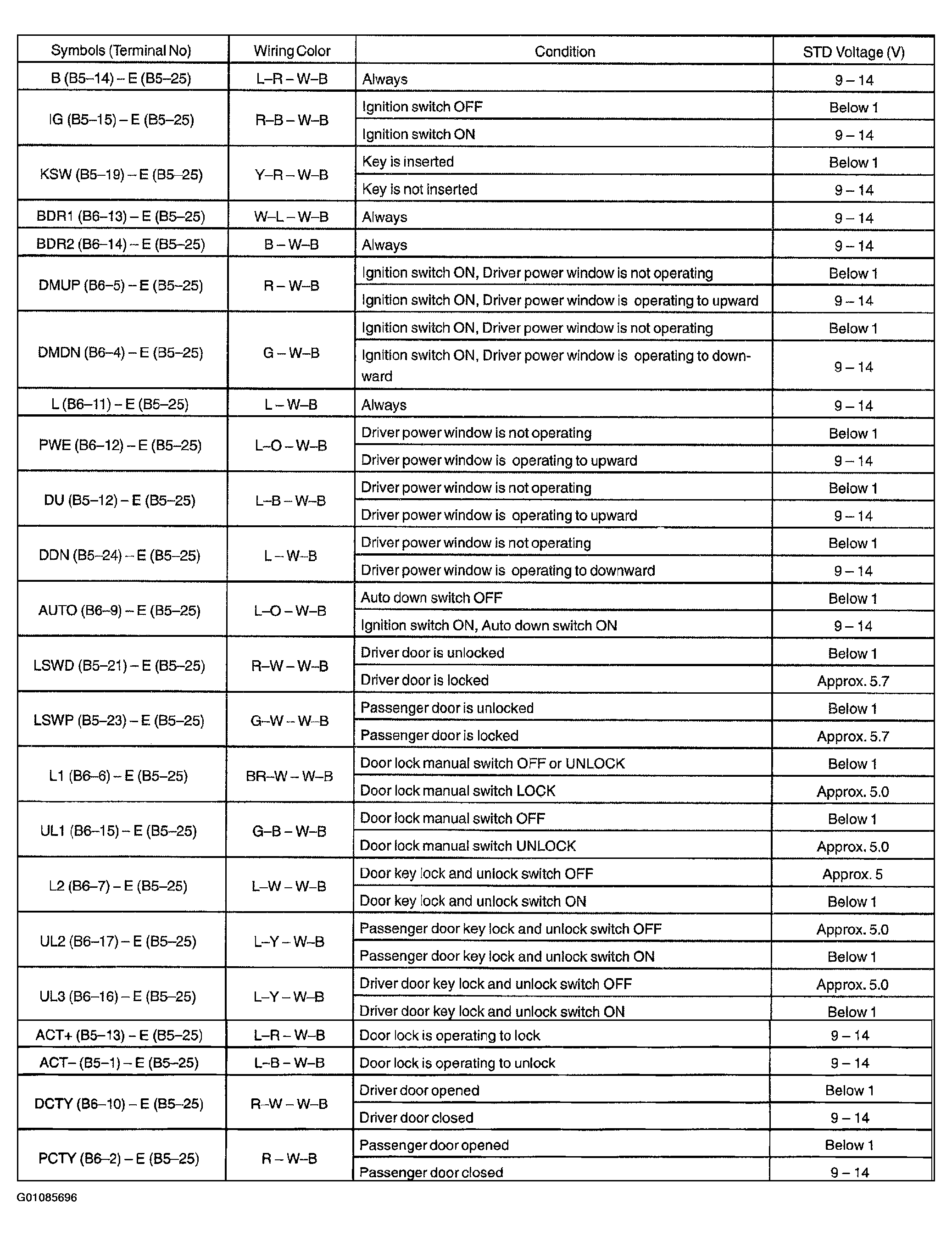

Fig 2: Identifying Body ECU Circuits & Test Parameters
G01085696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
