Engine Control Module Location

Engine Control Module (ECM) is located behind the glove box. See Fig 1.

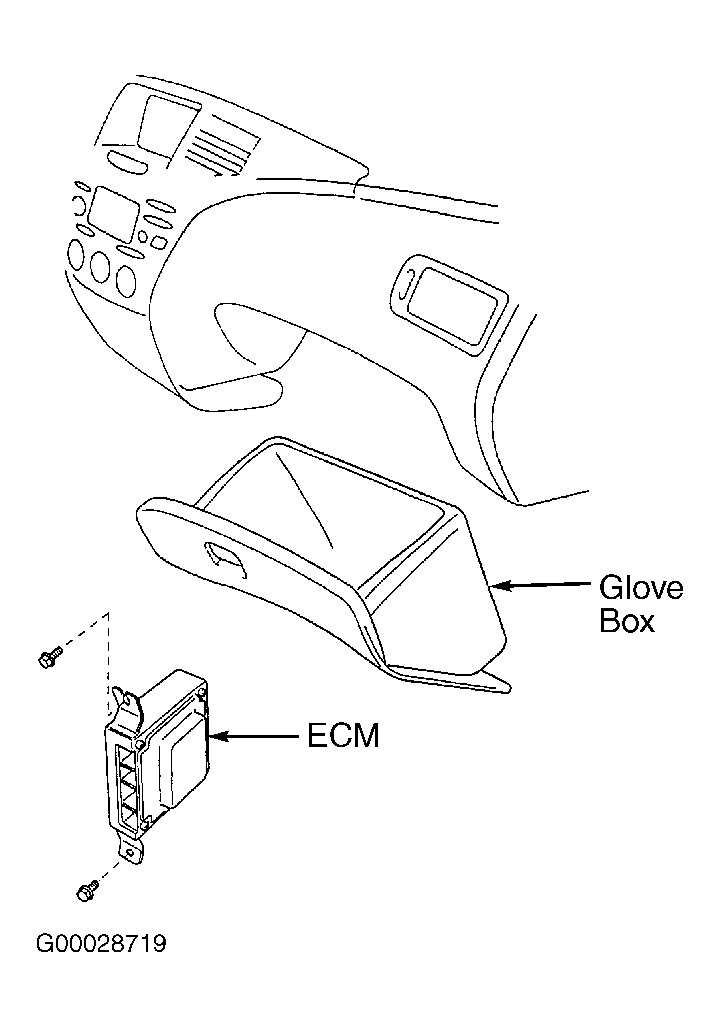

Fig 1: Locating Engine Control Module
G00028719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
