Tilt Steering Column: Components

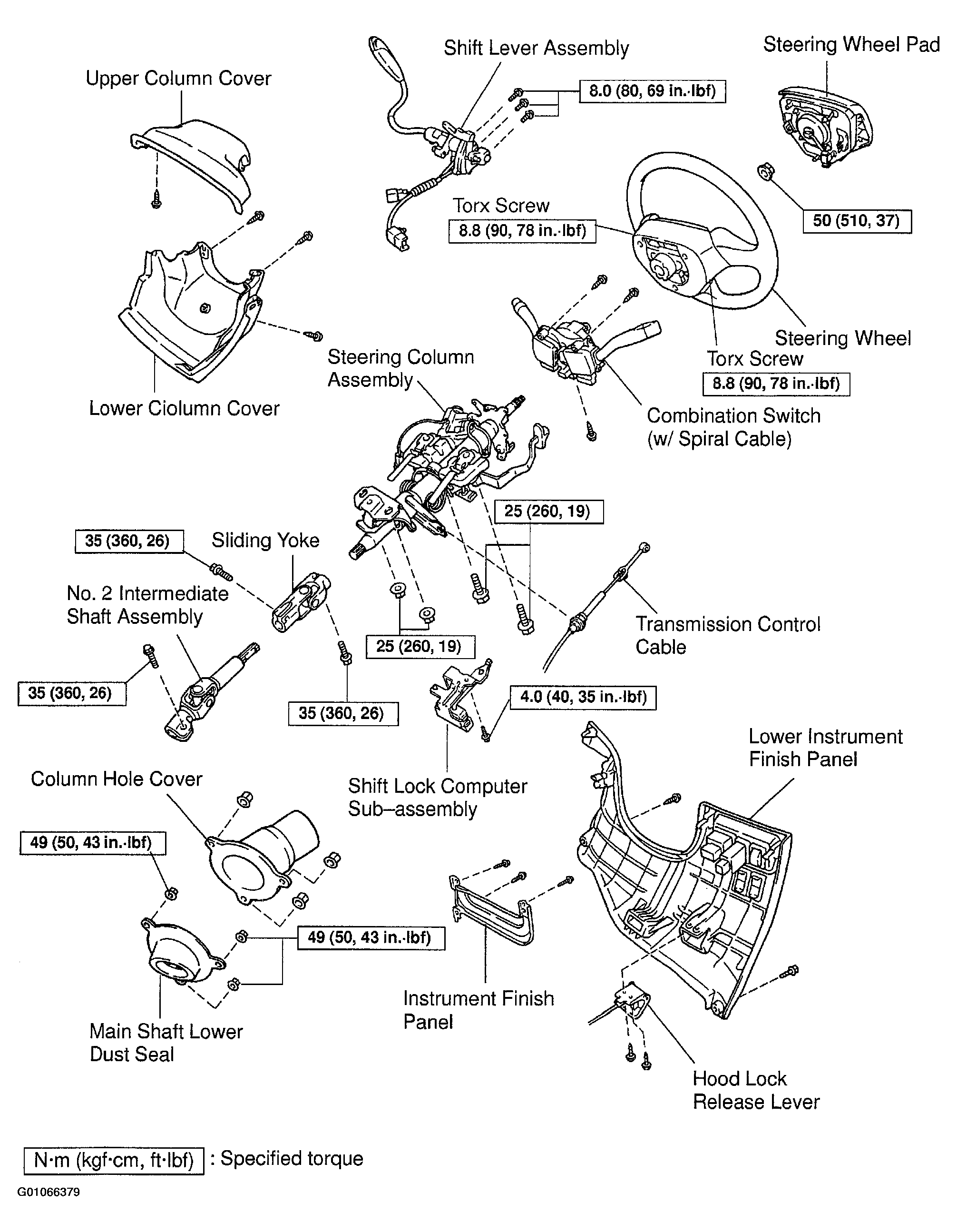

Fig 1: Identifying Tilt Steering Column Related Components
G01066379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

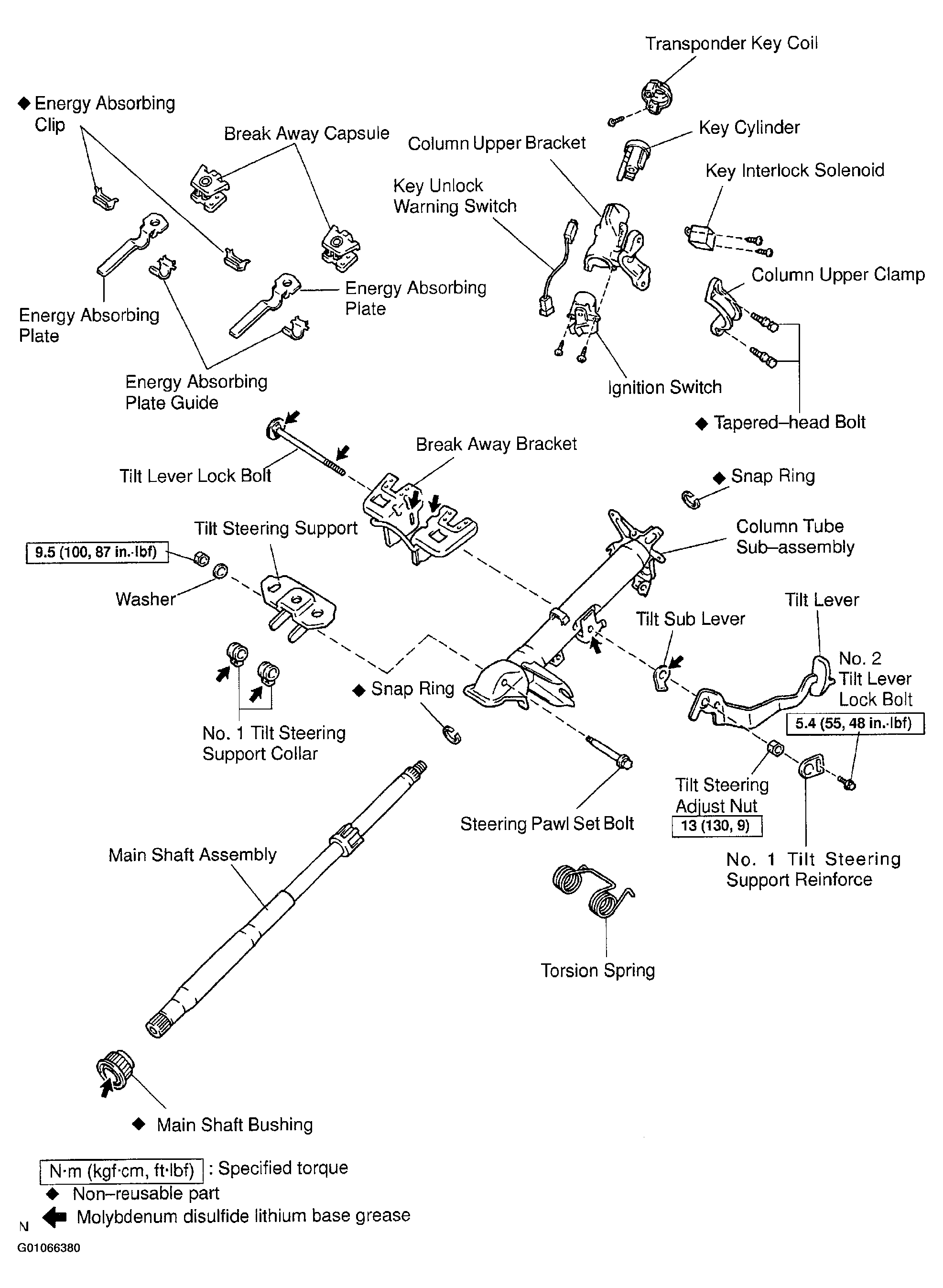

Fig 2: Exploded View Tilt Steering Column
G01066380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
