Wireless Door Lock Control System: Replacement

  1. Replace transmitter (lithium) battery  .
    NOTE: Special caution should be taken for handling each component as they are precision electronic components.
      NOTE: Do not pry out the cover forcibly.
      Push the cover with a finger as shown in Fig 1, so that there becomes clearance, then pry out the cover from that clearance.
      Fig 1: Removing Transmitter Cover
      G01939701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, remove the cover.
    2. Remove the transmitter.
    3. Remove the battery (lithium battery).
      NOTE:
      • Do not push the terminals with a finger.
      • If prying up the battery (lithium battery) forcibly to remove, the terminals are deformed.
      4. CAUTION: Face the battery upward. Take care not to deform the terminals.
      Fig 2: Installing Lithium Battery
      G01939702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install a battery (lithium battery) as shown in Fig 2.
    5. Assemble the transmitter to the key plate and the cover.
  2. Replace door control receiver and transmitter  .
      NOTE:
      • The rewrite mode is used to erase all previously registered codes and register only new recognition codes.
      • The confirmation mode is for confirming how many recognition codes are already registered before you rewrite recognition codes.
    1. Select the operation mode to perform from the following operation modes.
      • Rewrite mode
      • Confirmation mode
      2. NOTE:
      • When procedure is out of the specified, the operation returns to normal operation.
      • Maximum 4 recognition codes can be registered.
    2. Follow Fig 3-Fig 5 to register the transmitter recognition code at the wireless door lock control receiver.

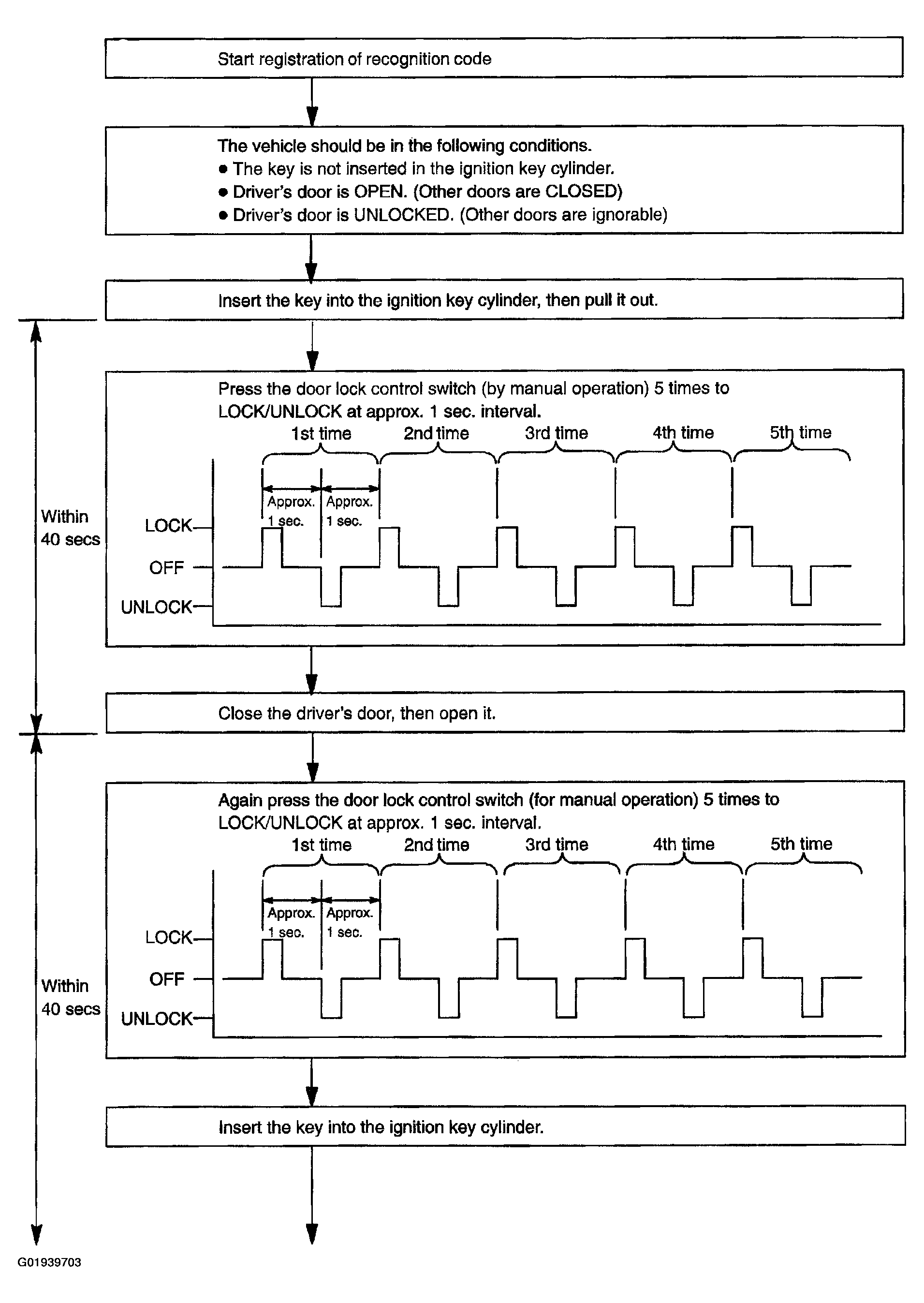

Fig 3: Door Control Receiver & Transmitter Replacement Flowchart (1 Of 3)
G01939703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

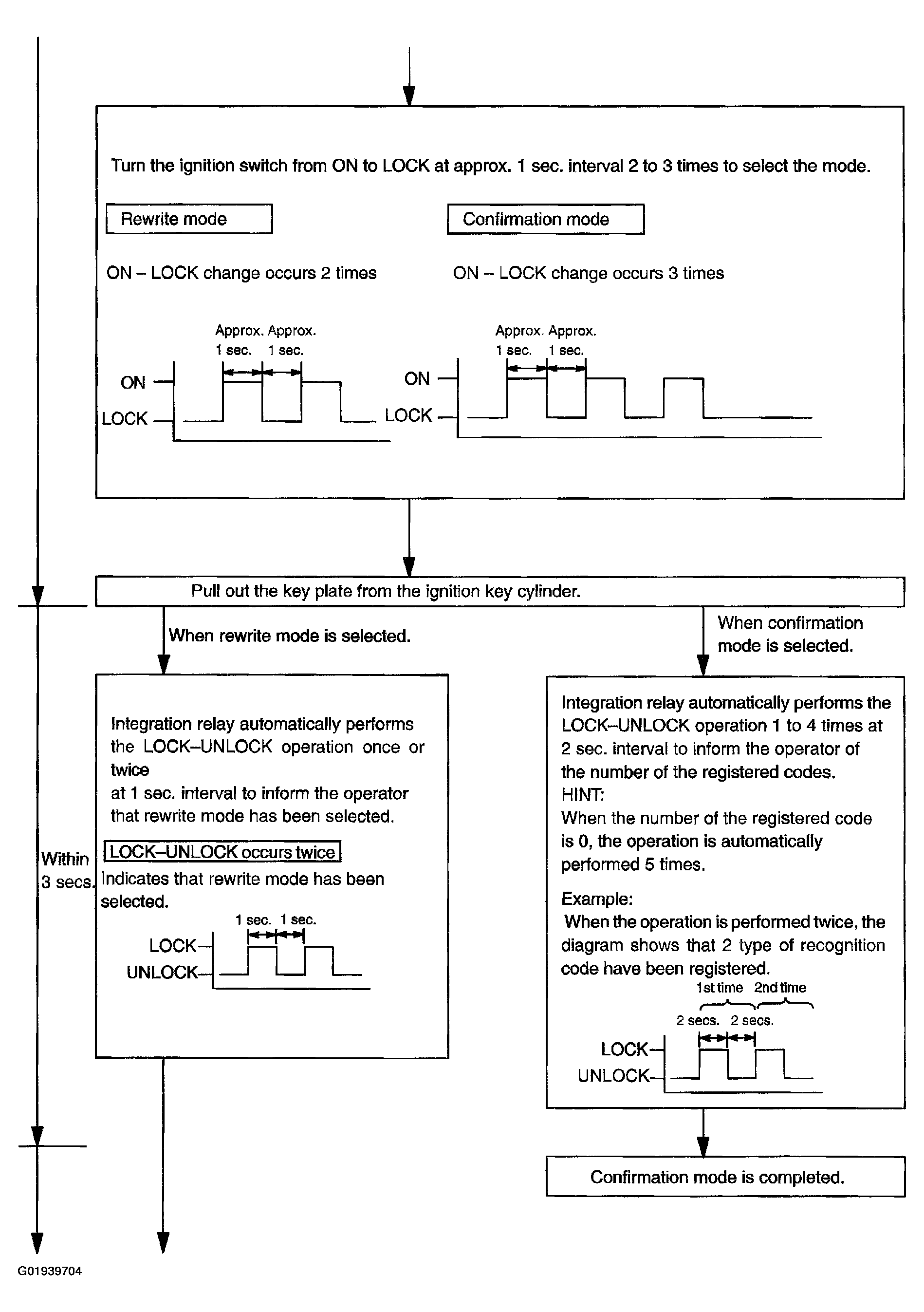

Fig 4: Door Control Receiver & Transmitter Replacement Flowchart (2 Of 3)
G01939704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

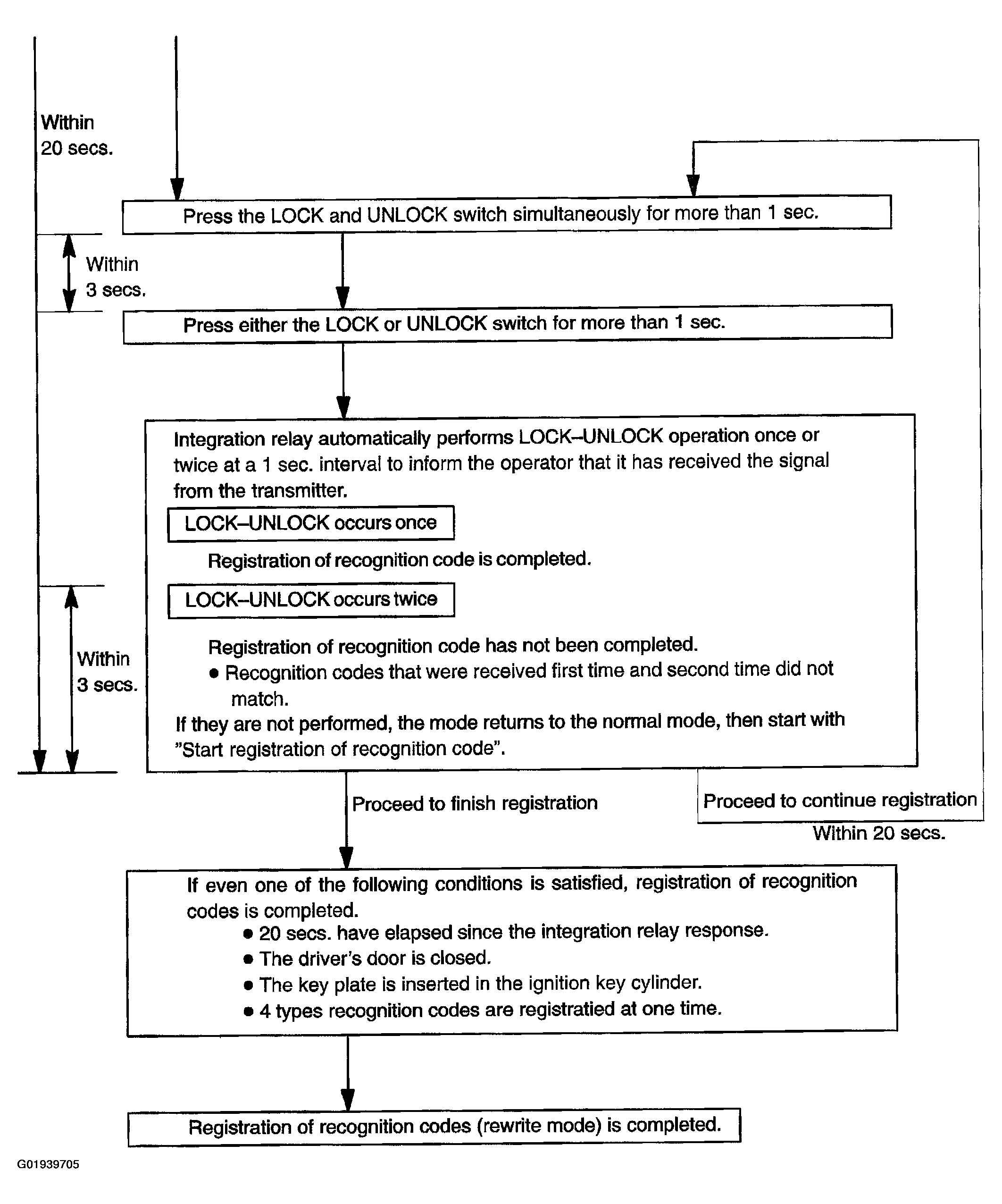

Fig 5: Door Control Receiver & Transmitter Replacement Flowchart (3 Of 3)
G01939705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
