Charging Systems: Generator: Components

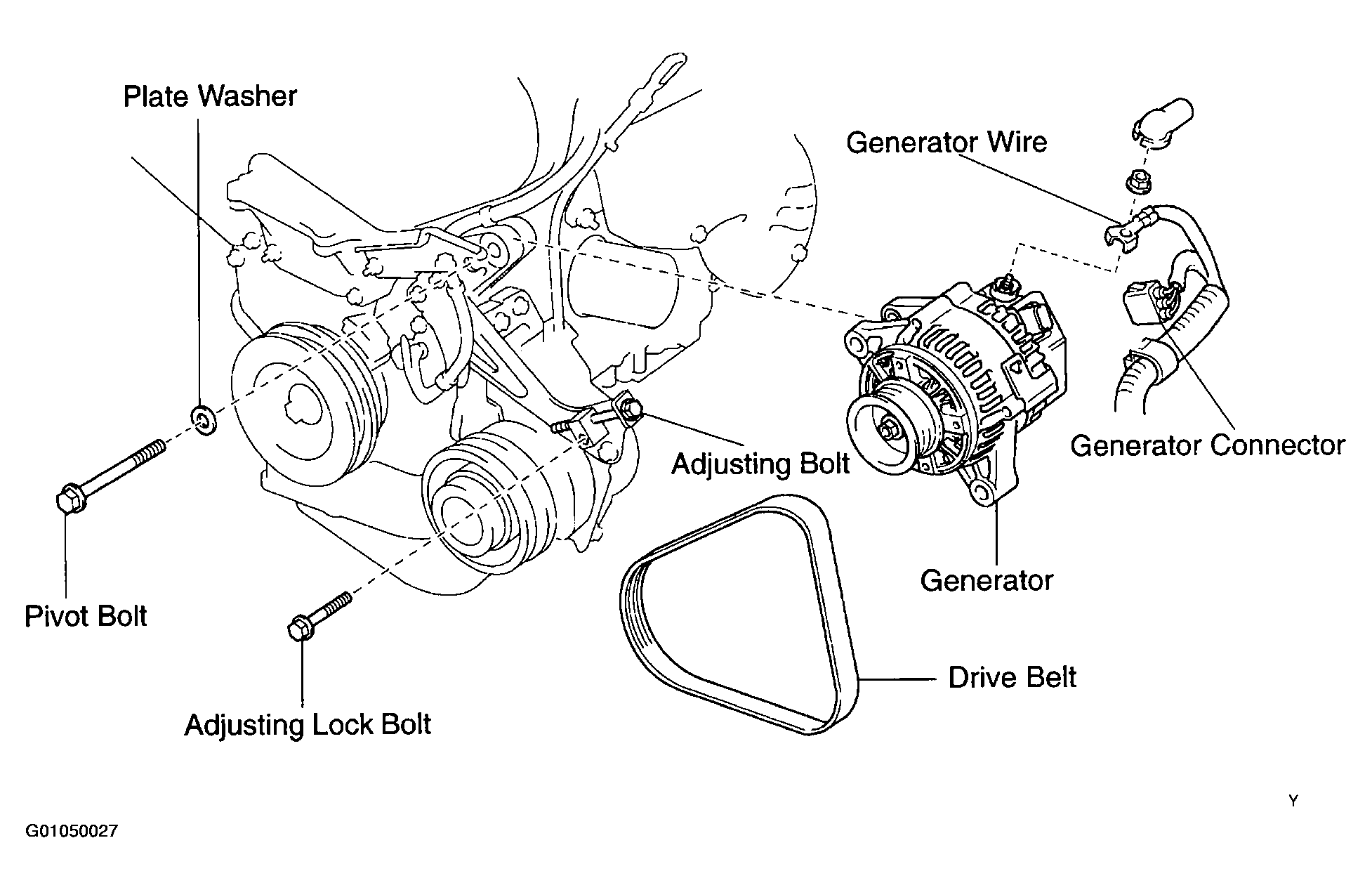

Fig 1: Identifying Generator Components (1 Of 2)
G01050027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

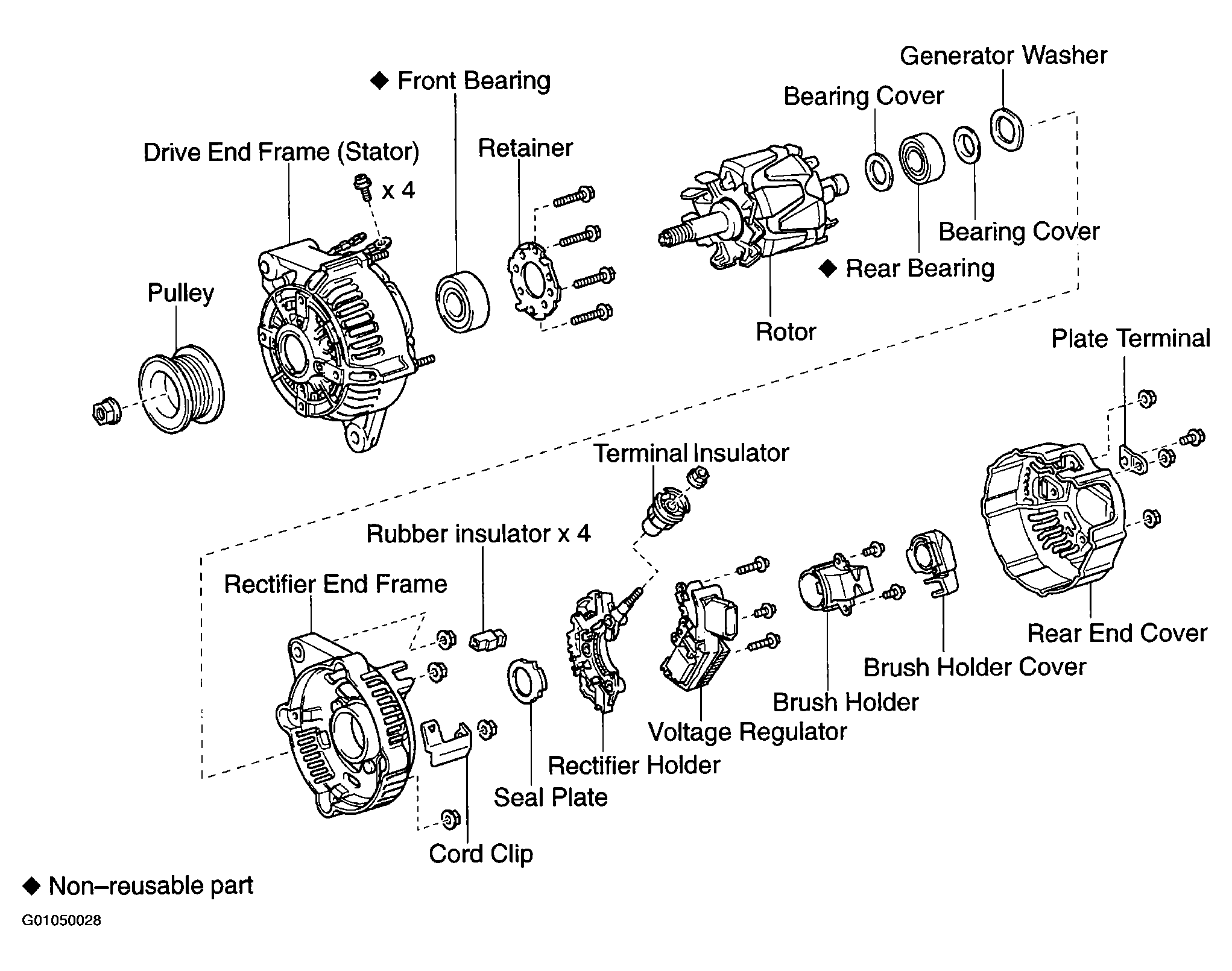

Fig 2: Identifying Generator Components (2 Of 2)
G01050028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
