Column Shift Assembly: Components

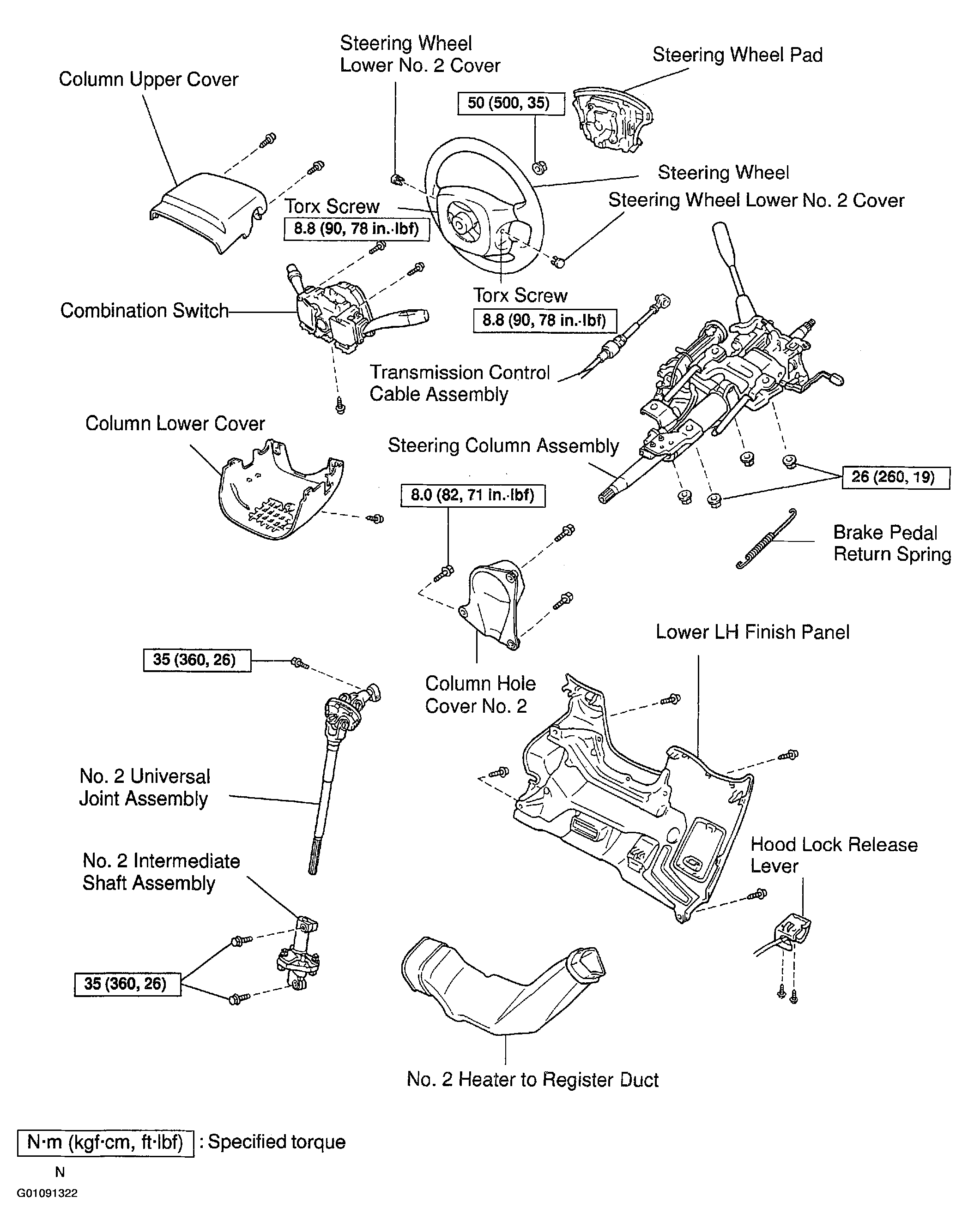

Fig 1: Identifying Column Shift Assembly Components (1 Of 2)
G01091322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

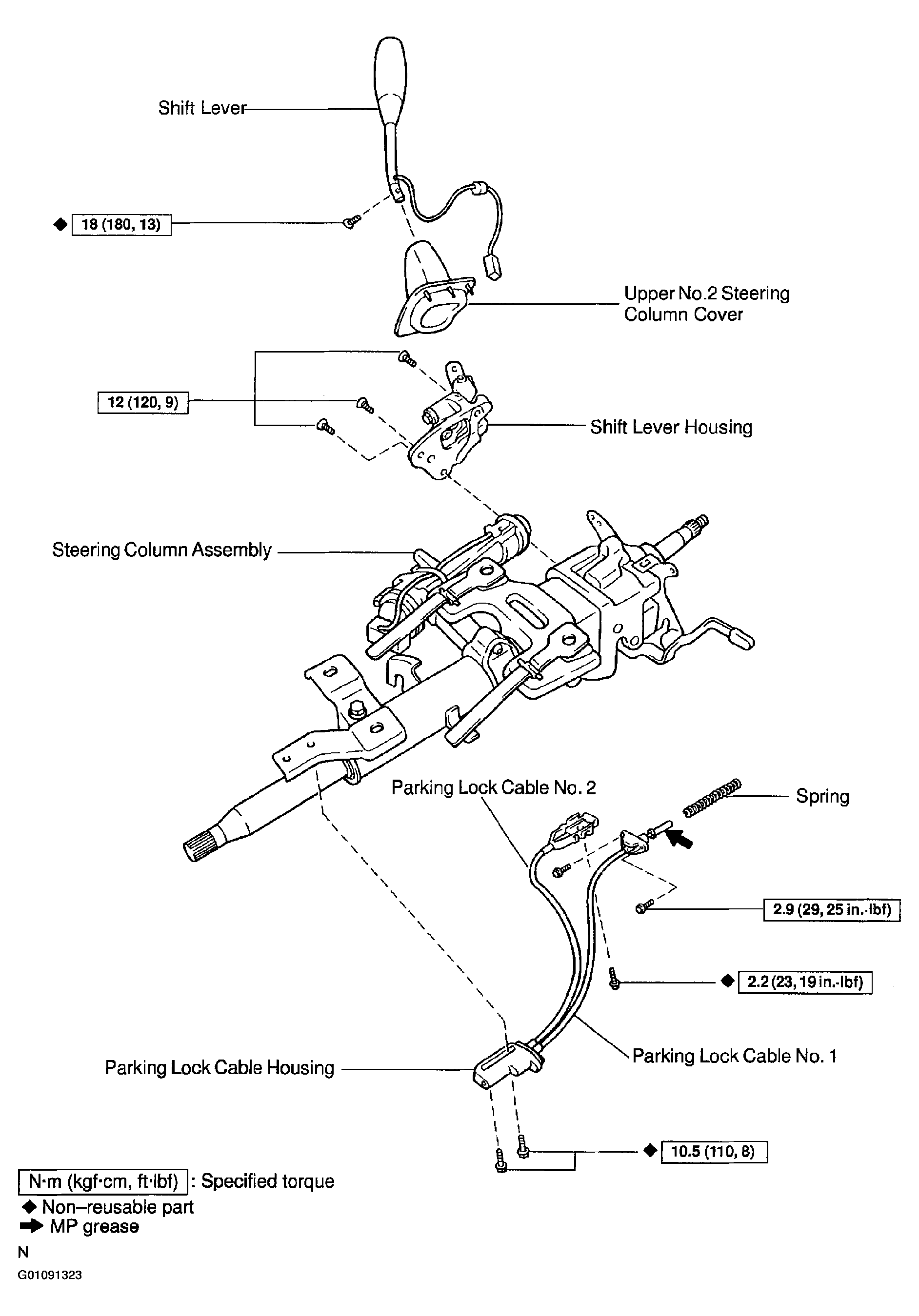

Fig 2: Identifying Column Shift Assembly Components (2 Of 2)
G01091323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
