Rear Wheel Alignment Procedures: Inspection
- INSPECT TIRE (See INSPECTION )
- MEASURE VEHICLE HEIGHT (See ADJUSTMENT
) NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
- INSPECT TOE-IN Rear Wheel Toe-In Specification

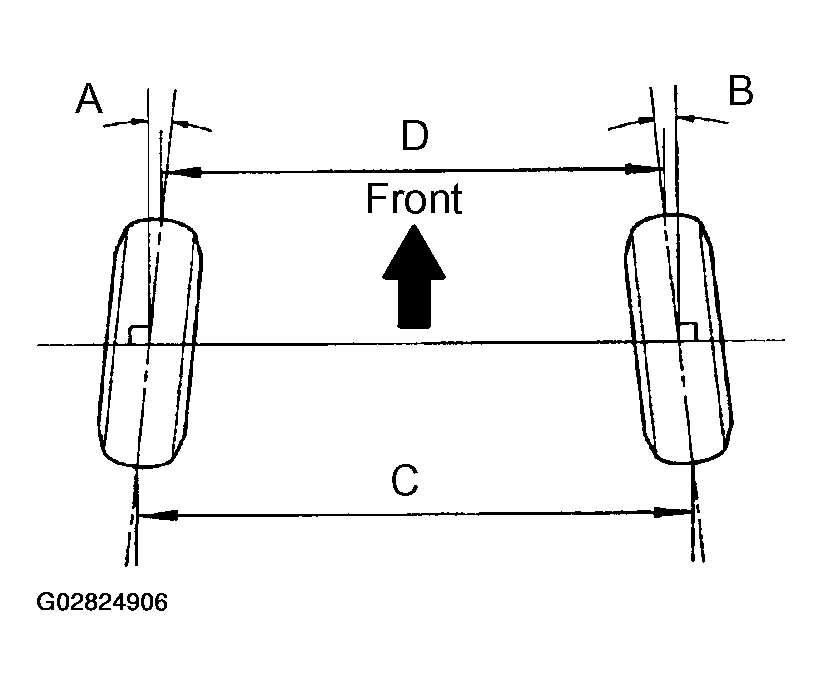

Toe-in A + B: 0°16' +/- 16' (0.26° +/- 0.26°) (total) C - D: 2.6 +/- 2.5 mm (0.10 +/- 0.10 in.) If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.
- INSPECT CAMBER
- Install the camber-caster-kingpin gauge or position vehicle on wheel alignment tester.
- Inspect the camber.

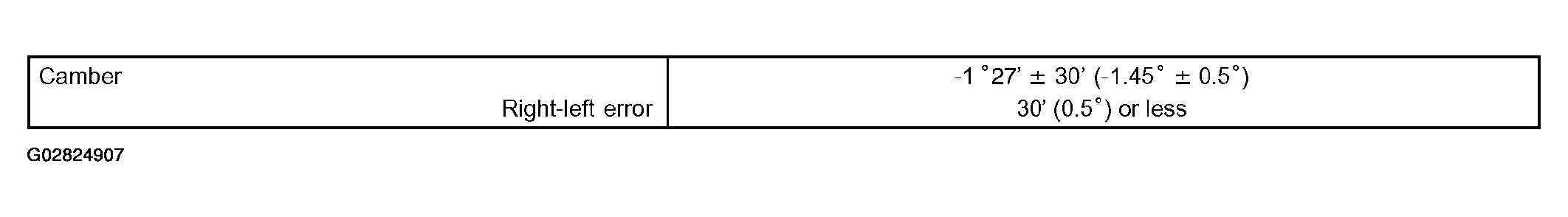

Camber:
If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary become camber is not adjustable.
