Power Steering Gear: Components

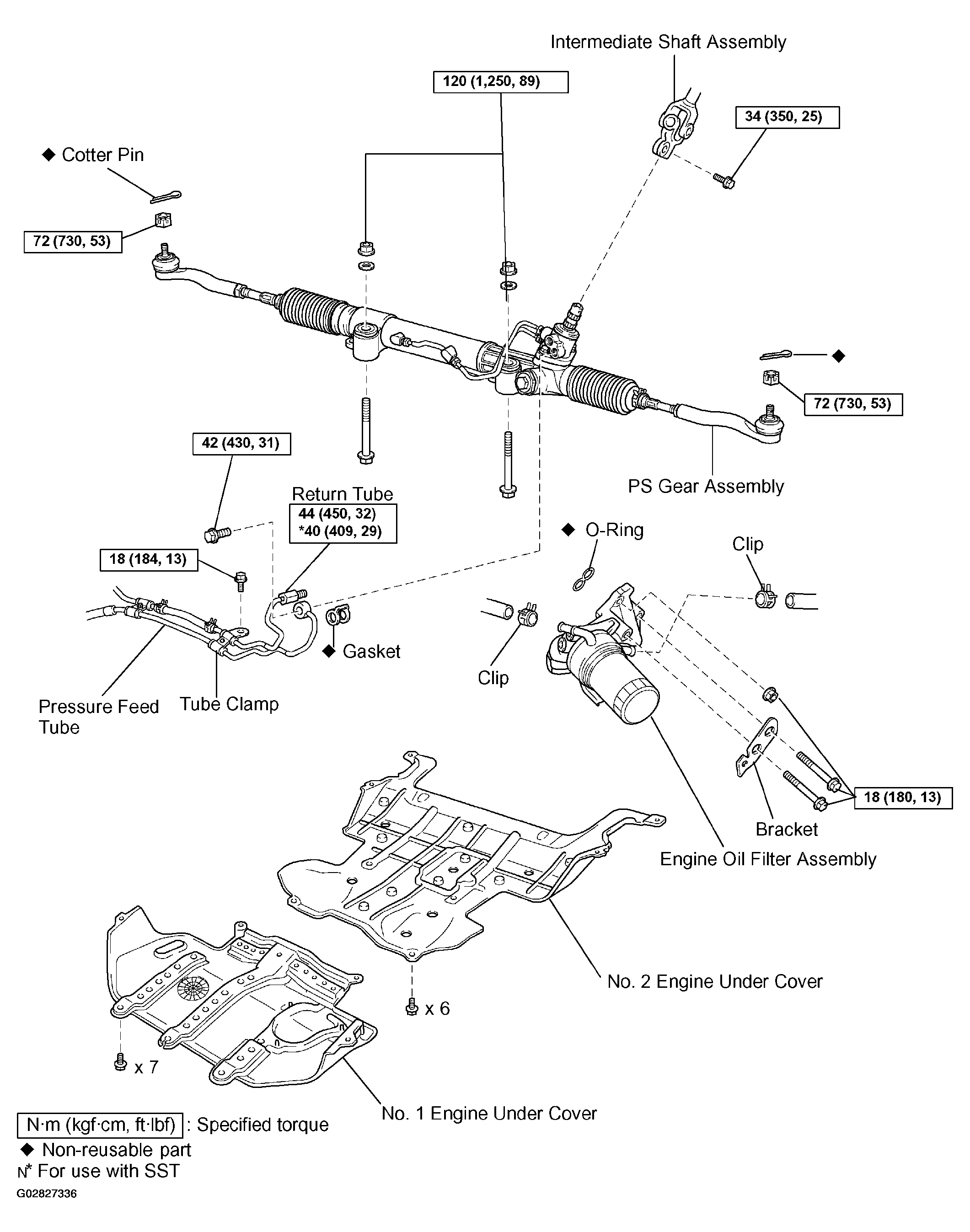

Fig 1: Exploded View Of Power Steering Gear Component (1 Of 3)
G02827336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

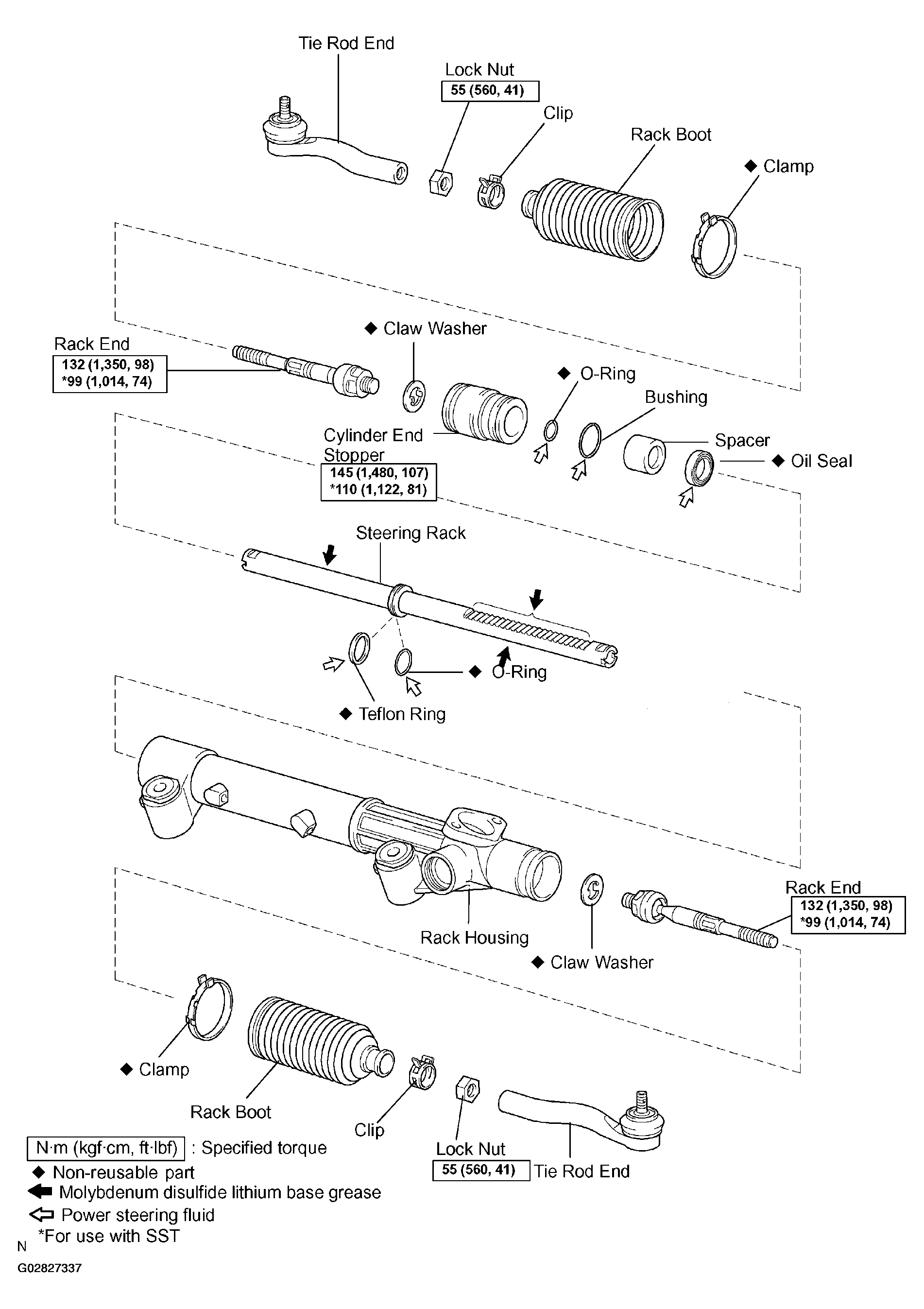

Fig 2: Exploded View Of Power Steering Gear Component (2 Of 3)
G02827337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

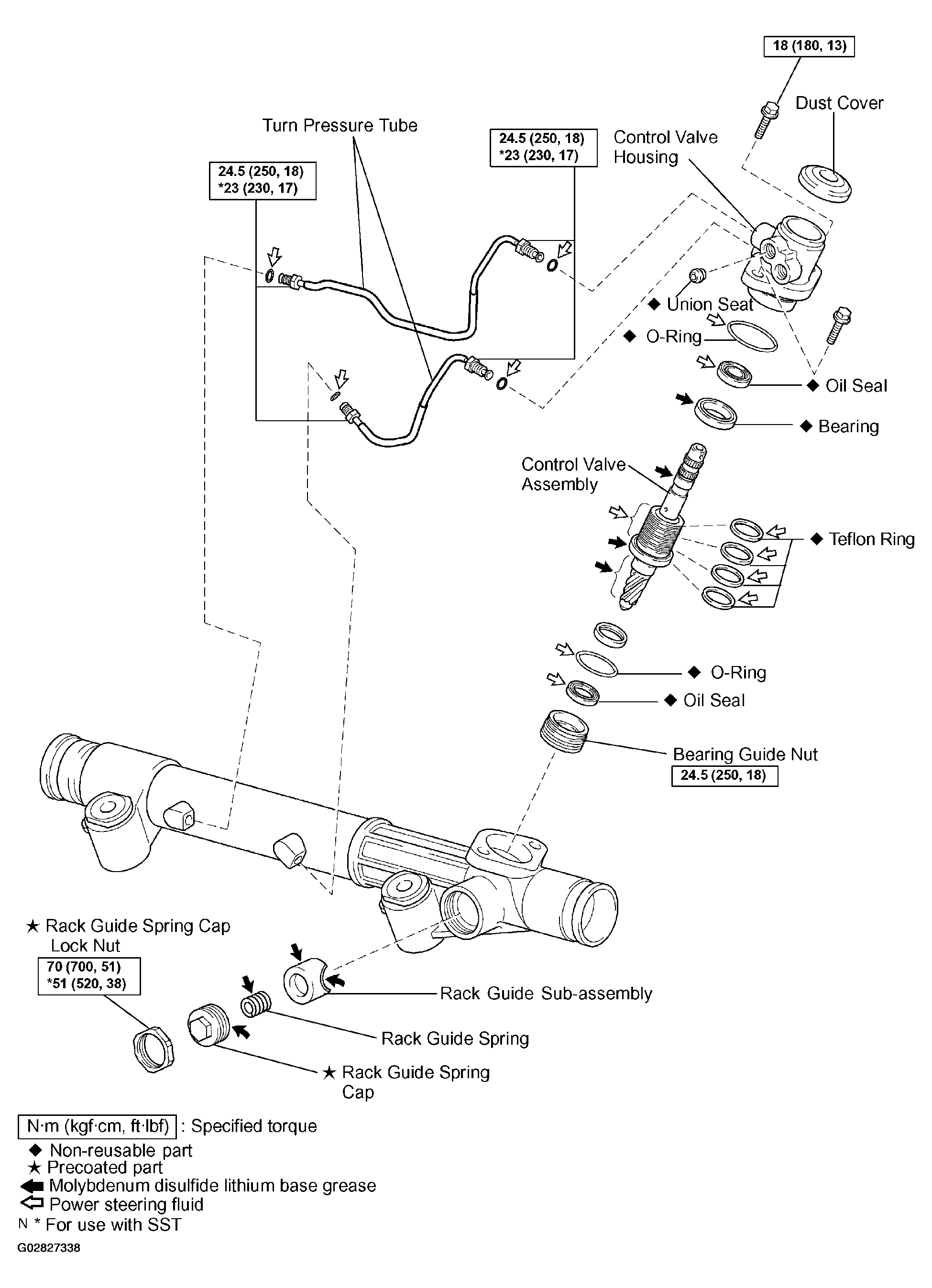

Fig 3: Exploded View Of Power Steering Gear Component (3 Of 3)
G02827338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
