Fuel Injectors (Prius)

WARNING: On Prius, read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

For fuel injector testing procedures, see Fig 1-Fig 2 .

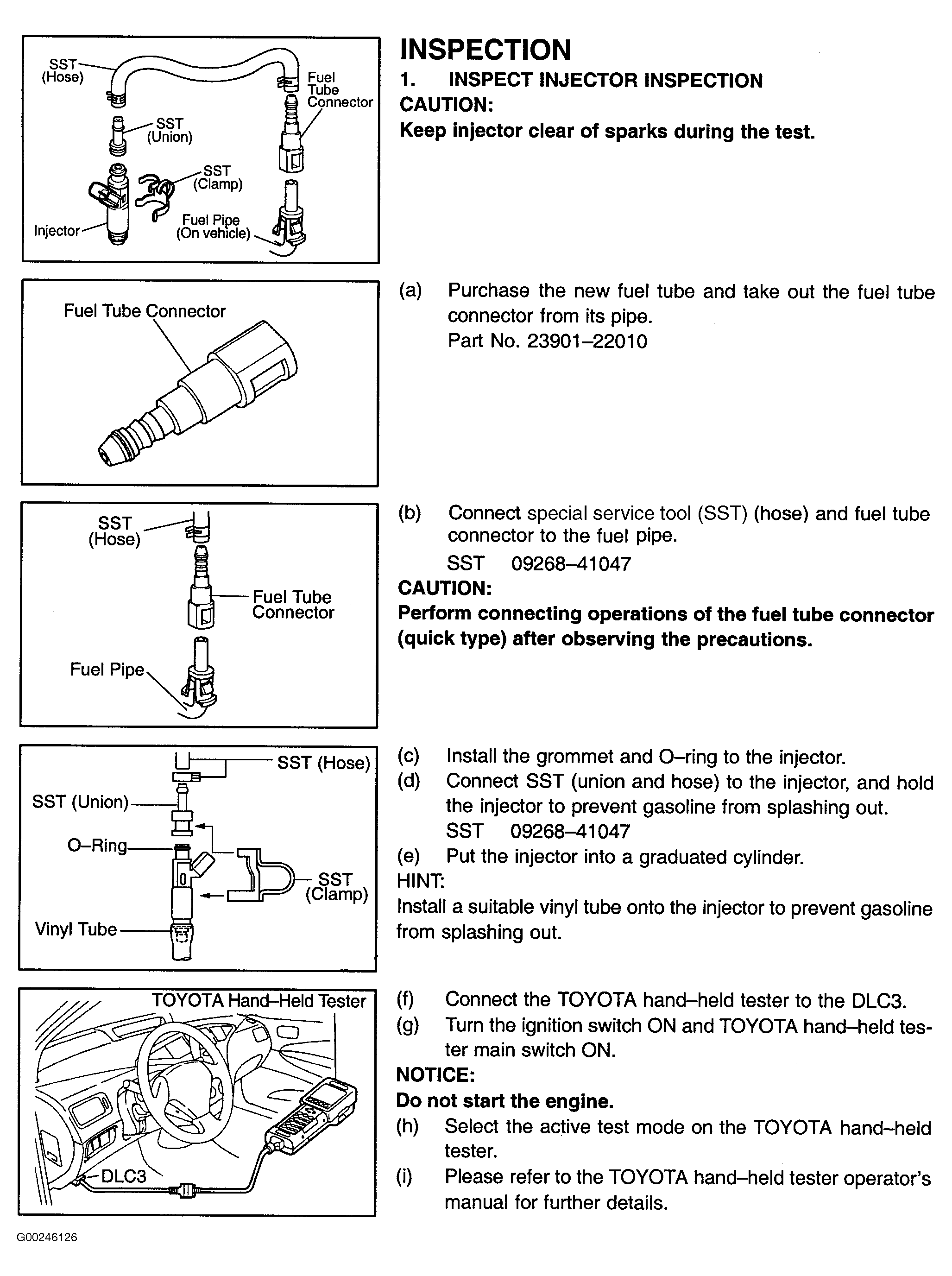

Fig 1: Testing Fuel Injectors - 1 Of 2 (Prius)

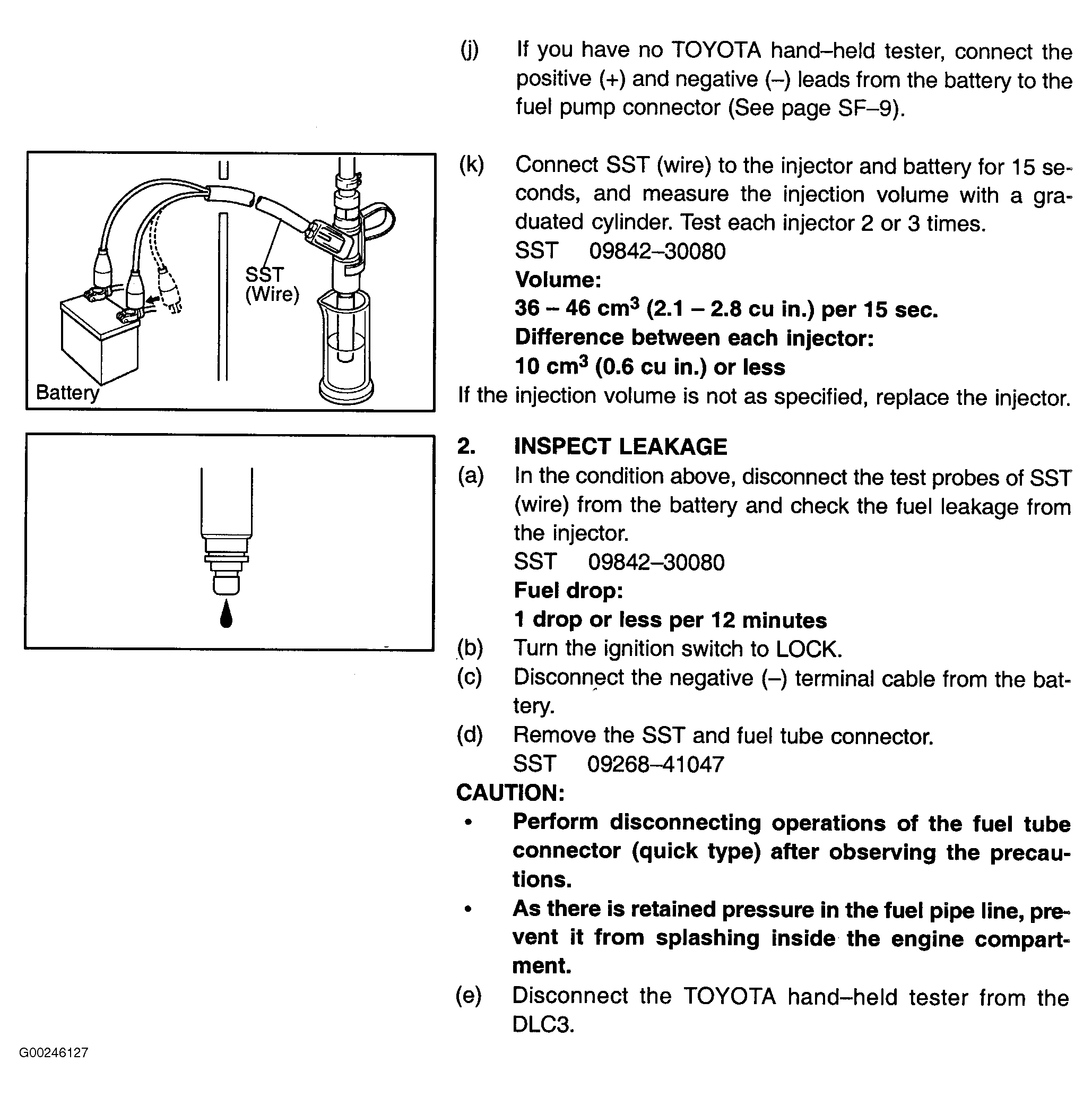

Fig 2: Testing Fuel Injectors - 2 Of 2 (Prius)
