Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description, DTC detection and possible causes, see Fig 1.

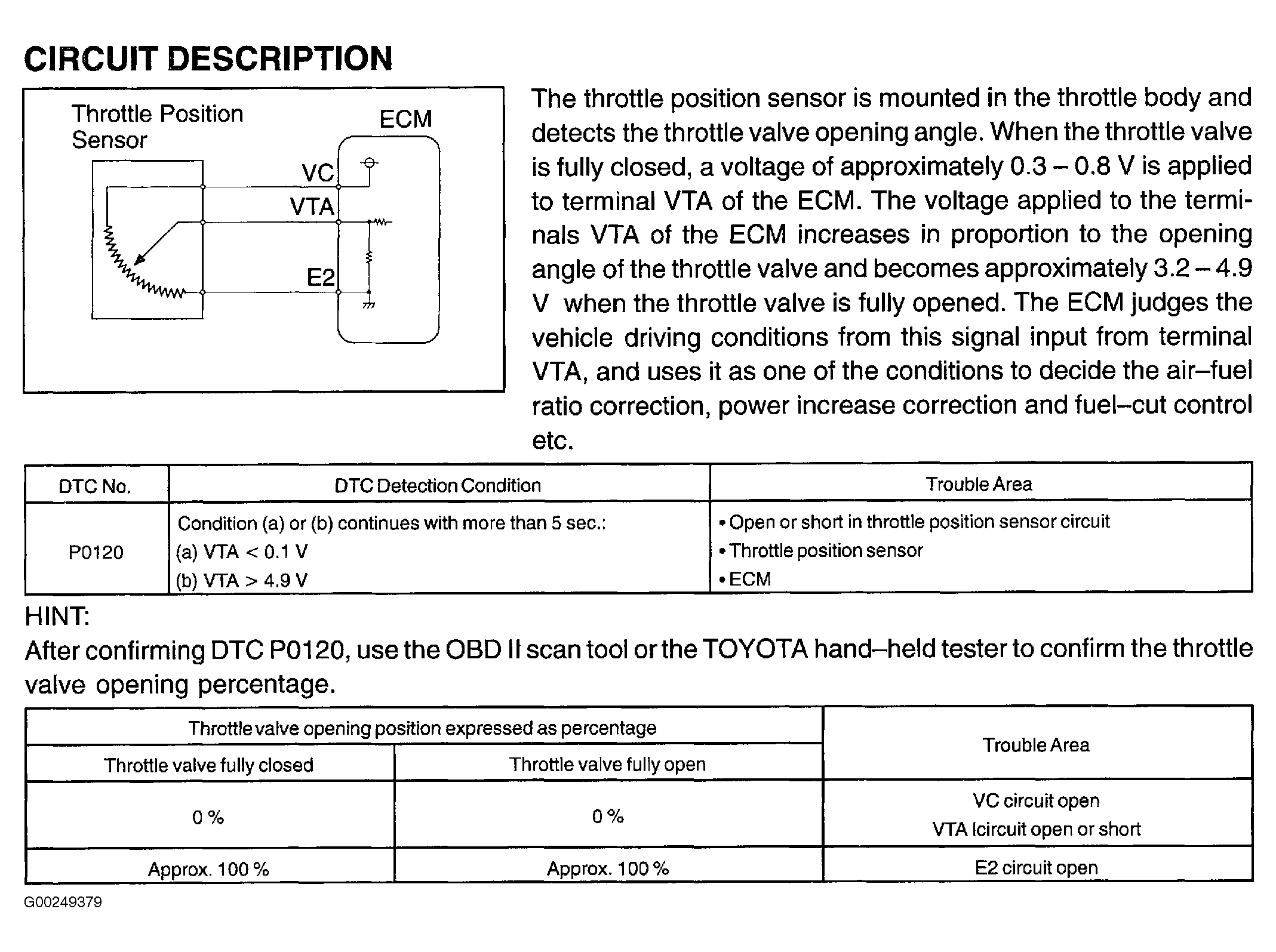

Fig 1: Circuit Description, DTC Detection Conditions & Possible Causes
G00249379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
