Circuit Description

WARNING: This page is about a different car, the 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description, see Fig 1.

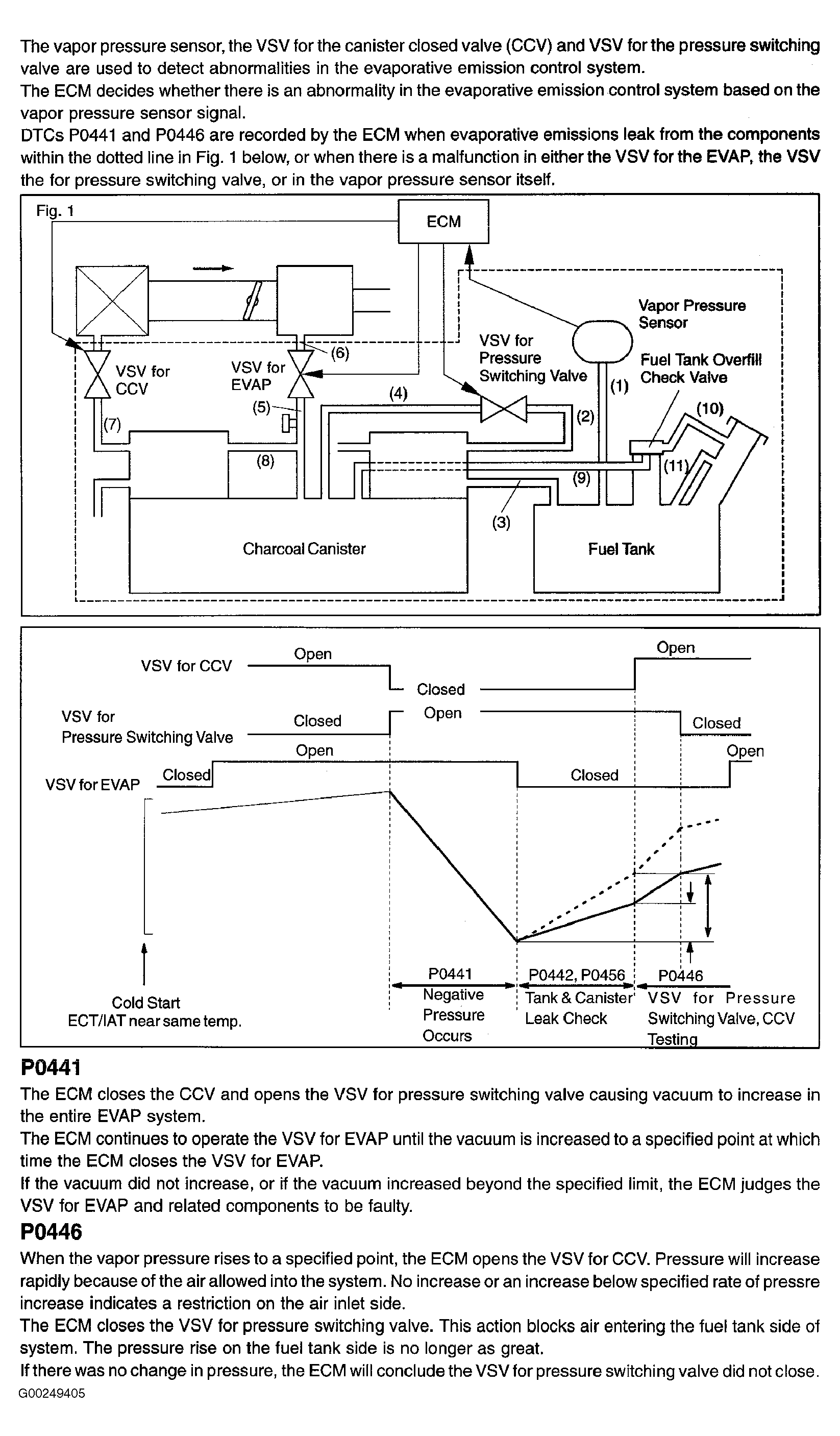

Fig 1: DTCs P0441 & P0446 Circuit Description
G00249405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
