Circuit Description

WARNING: This page is about a different car, the 2003 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

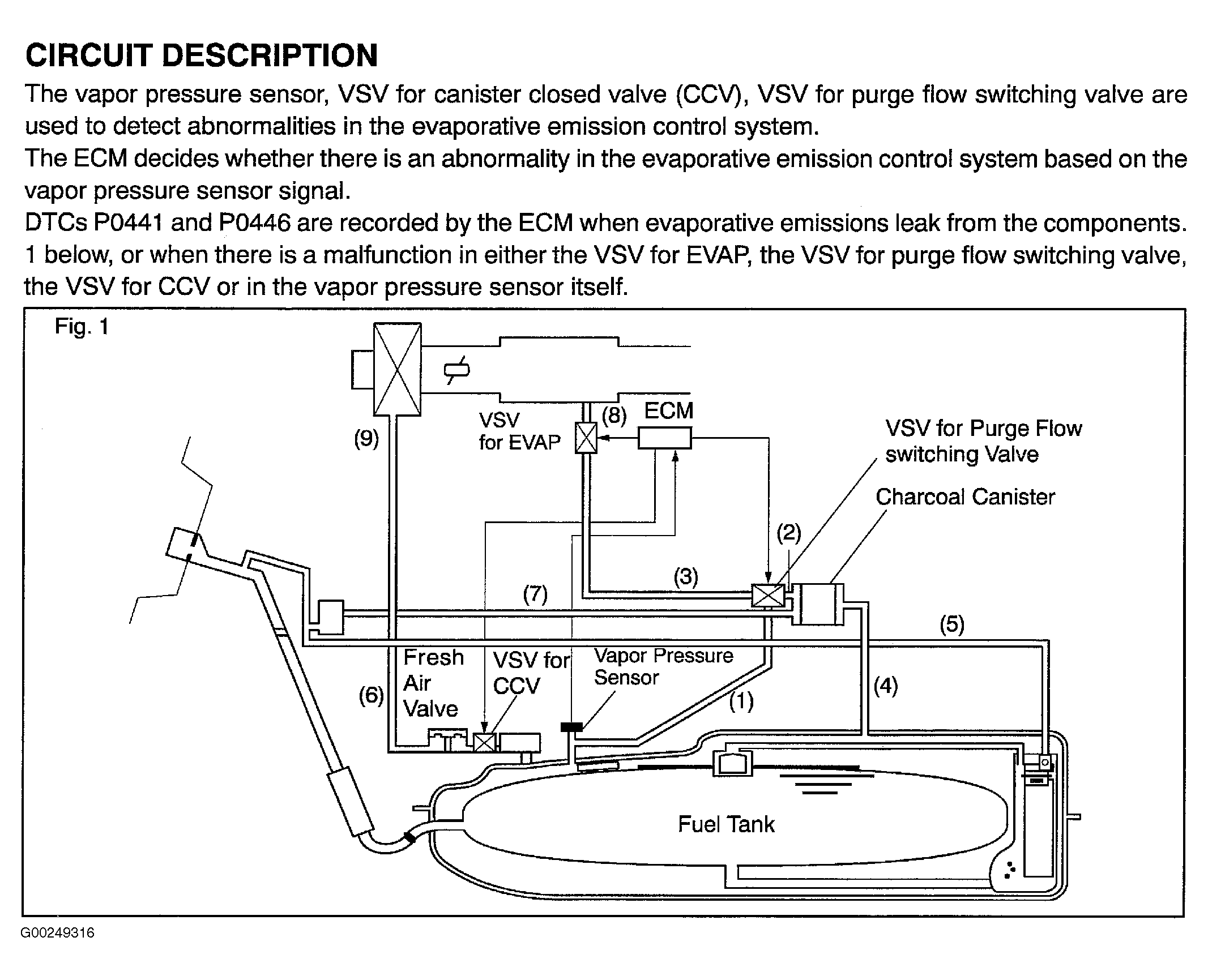

For circuit description, see Fig 1.

Fig 1: Circuit Description
G00249316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
