Amplifier Antenna Assembly: Replacement

NOTE: COMPONENTS: See COMPONENTS

REMOVE ROOF ANTENNA POLE SUB-ASSY (See REPLACEMENT )
REMOVE ROOF HEADLINING ASSY (See REPLACEMENT )
NOTE: Refer to the instructions for removal of the roof headlining assy.
REMOVE AMPLIFIER ANTENNA ASSY
1. Remove the 4 clamps and antenna nut.

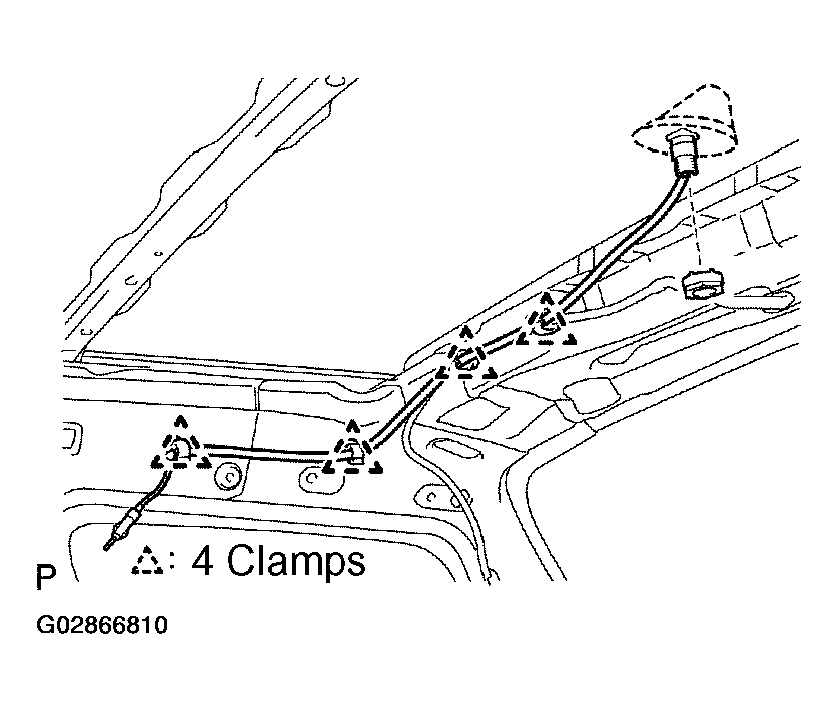

  Fig 1: Removing Clamps & Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Release the 2 fitting claws, remove the amplifier antenna assy.

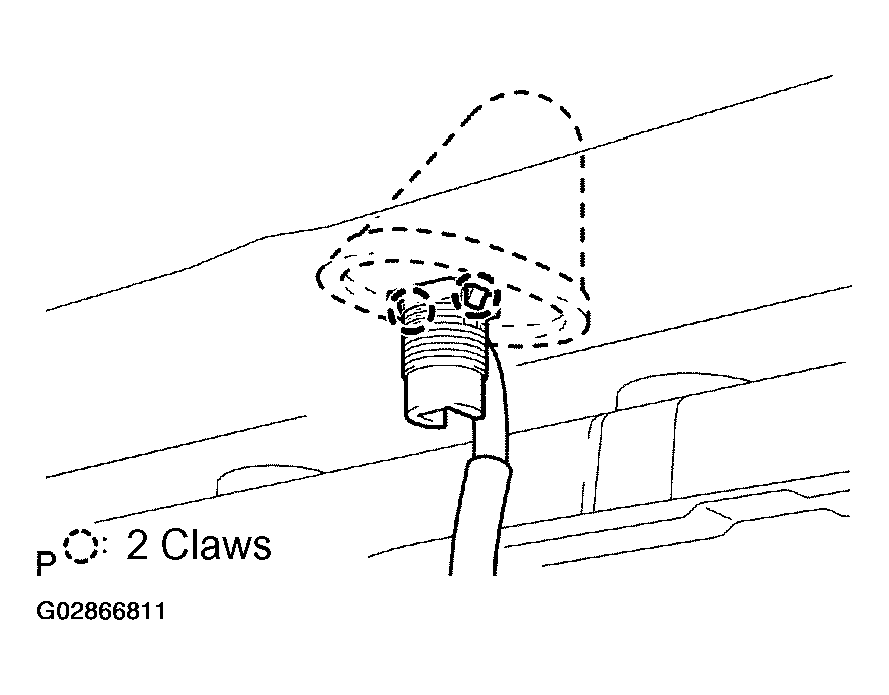

  Fig 2: Releasing Fitting Claws & Amplifier Antenna Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AMPLIFIER ANTENNA ASSY
1. Set the amplifier antenna assy to the hole on the roof, and place the antenna cord on the cutout on the antenna nut.

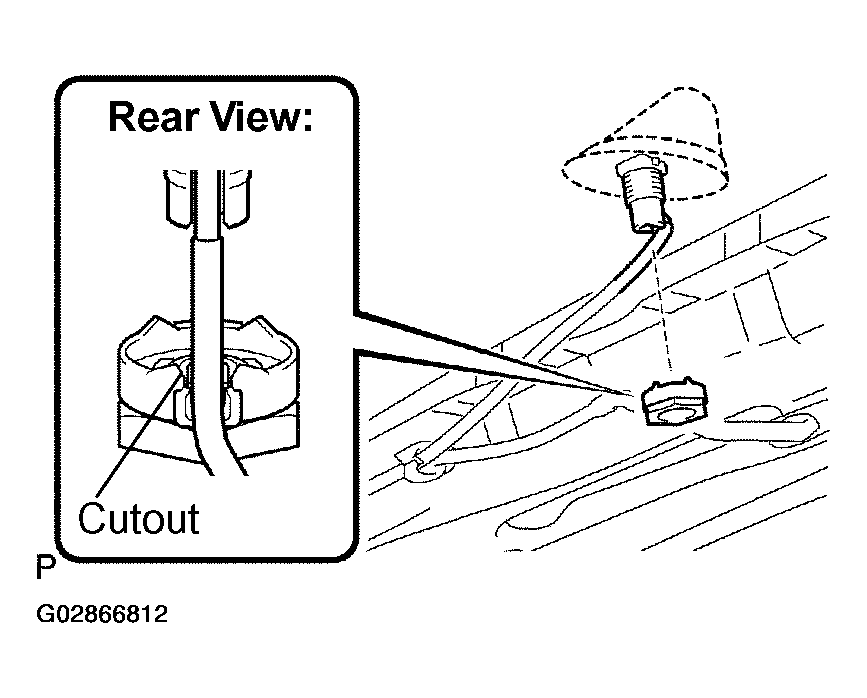

  Fig 3: Placing Antenna Cord On Cutout On Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the amplifier antenna assy with the antenna nut.
  Torque: 4.5 N.m (46 kgf.cm, 40 in.lbf)
3. Install the 4 clamps.

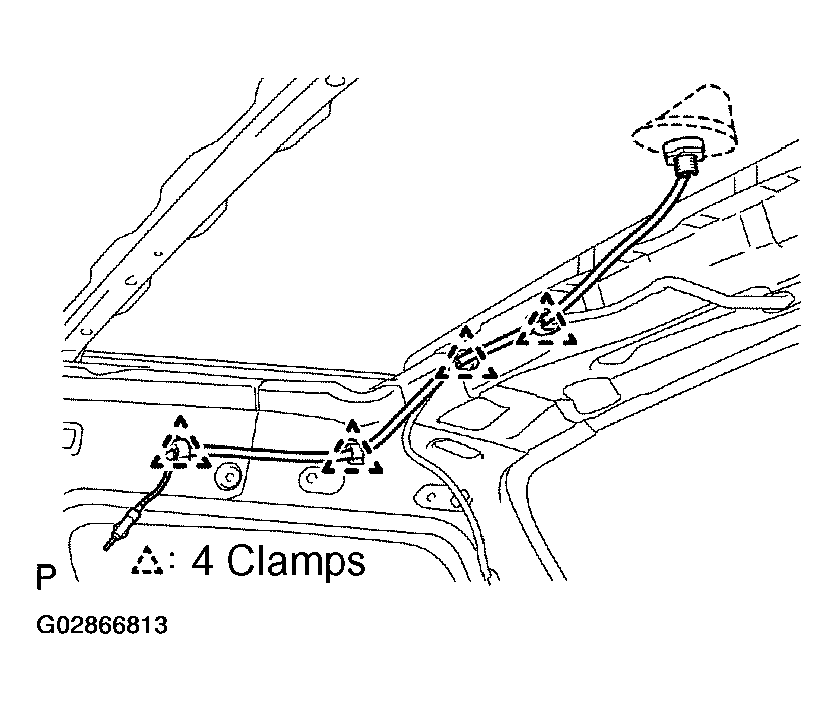

  Fig 4: Installing Clamps With Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSY (See REPLACEMENT )
INSTALL REAR SEAT CUSHION ASSY AND REAR SEAT BACK ASSY (See OVERHAUL )
