A/C Compressor Clutch Relay: Celica

For A/C compressor clutch relay testing procedure, see Fig 1.

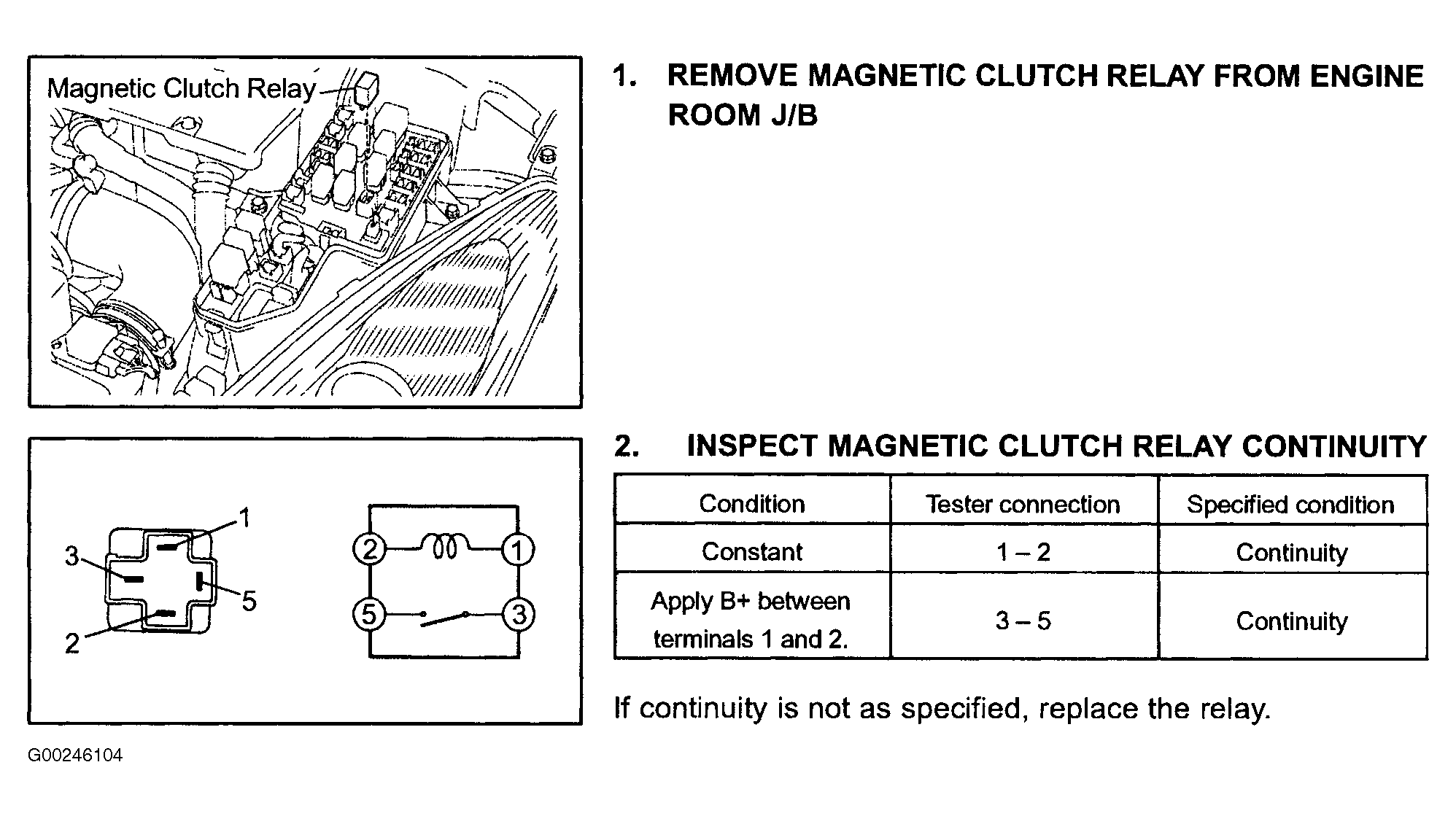

Fig 1: Testing A/C Compressor Clutch Relay (Celica)
G00246104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
