Inspect Power Cable

If any damage mentioned below is identified at visual inspection, replace the power cable.

1. Area covered by protector:

   When the protector is so damaged that the corrugated tube for the power cable inside the protector is exposed.

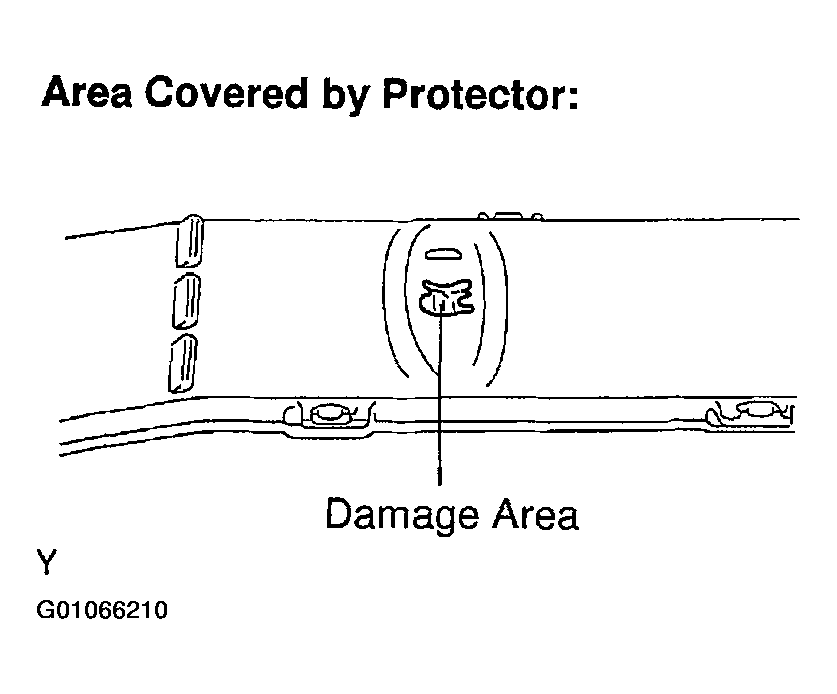

   Fig 1: Identifying Types Of Power Cable Damage (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Other area:

   When the corrugated tube is so damaged that the coating inside the power cable is exposed.

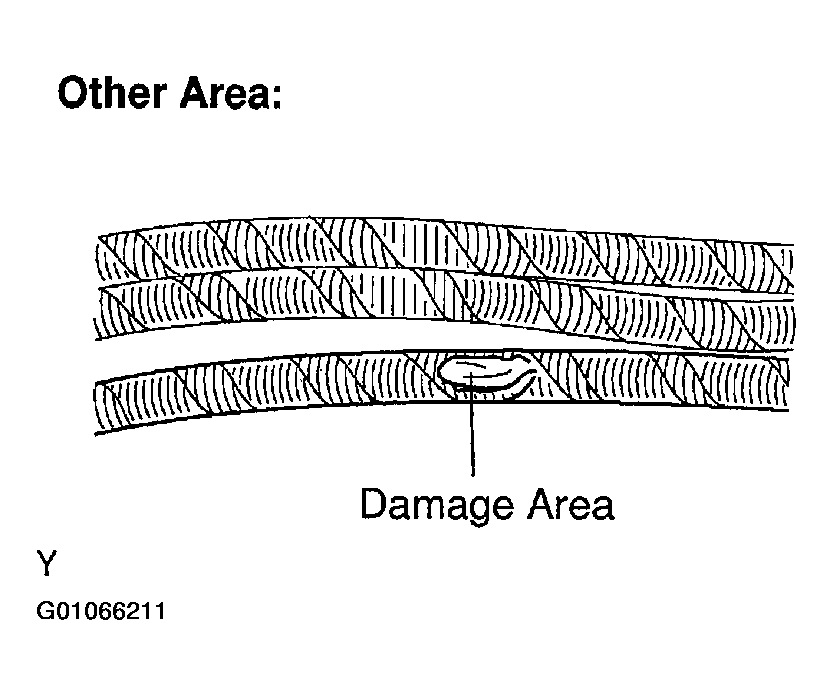

   Fig 2: Identifying Types Of Power Cable Damage (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
