Passive Arming On/Off Selection, Entry Delay Time Selection

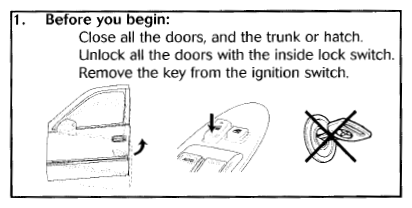

Fig 1: Passive Arming ON/OFF Selection, Entry Delay Time Selection - Programming Procedure (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

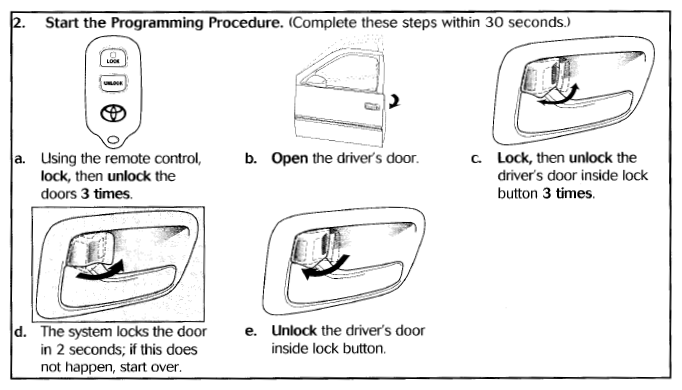

Fig 2: Passive Arming ON/OFF Selection, Entry Delay Time Selection - Programming Procedure (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

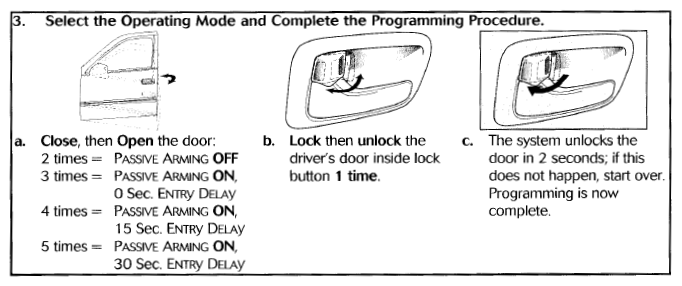

Fig 3: Passive Arming ON/OFF Selection, Entry Delay Time Selection - Programming Procedure (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
