Diagnostic Procedure

For wiring diagram, see Fig 1. For testing procedures, see Fig 2.

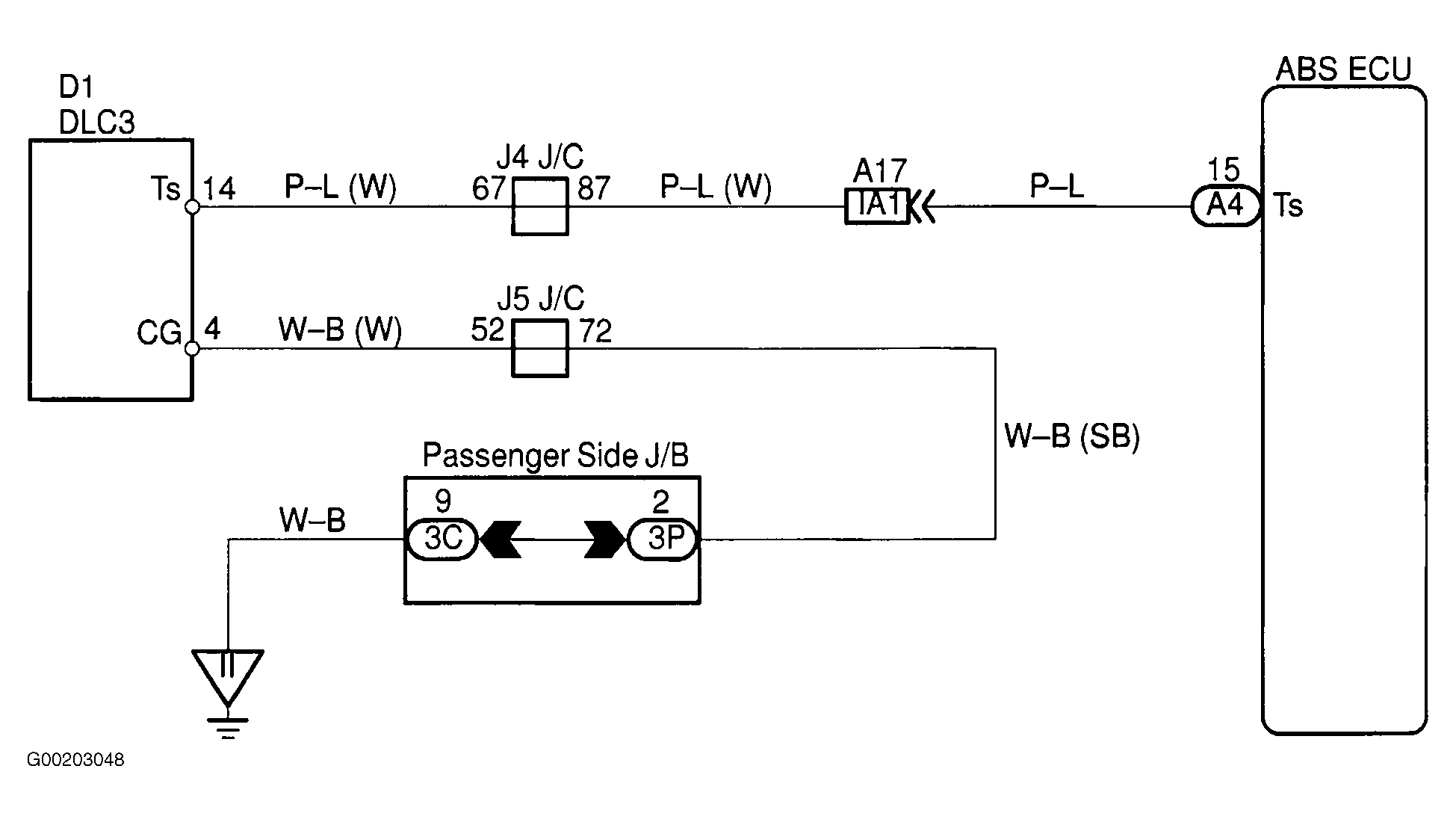

Fig 1: Ts Terminal Wiring Diagram

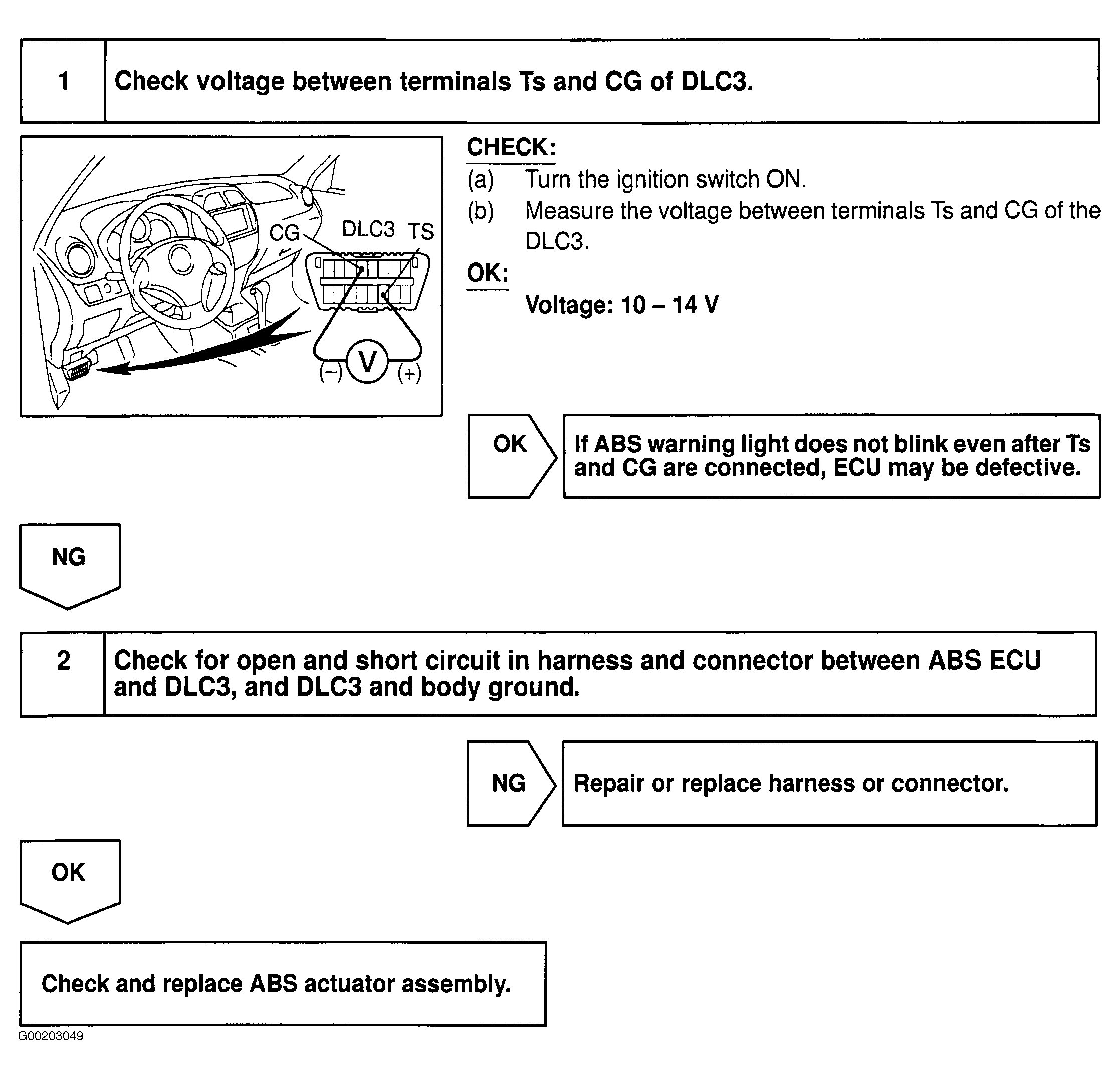

Fig 2: Ts Terminal Testing Procedures
