Parts Location

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

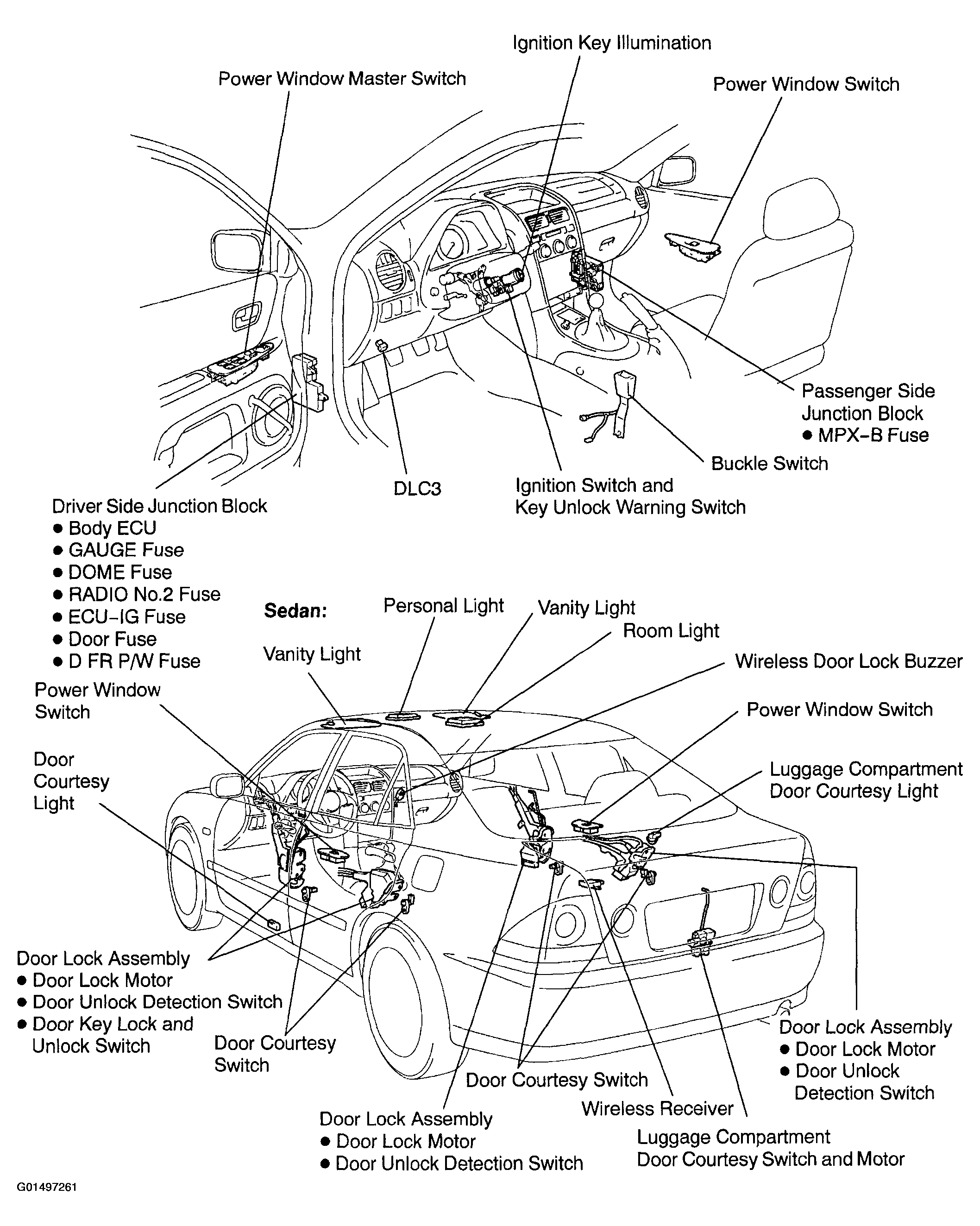

Fig 1: Identifying Parts Location
G01497261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

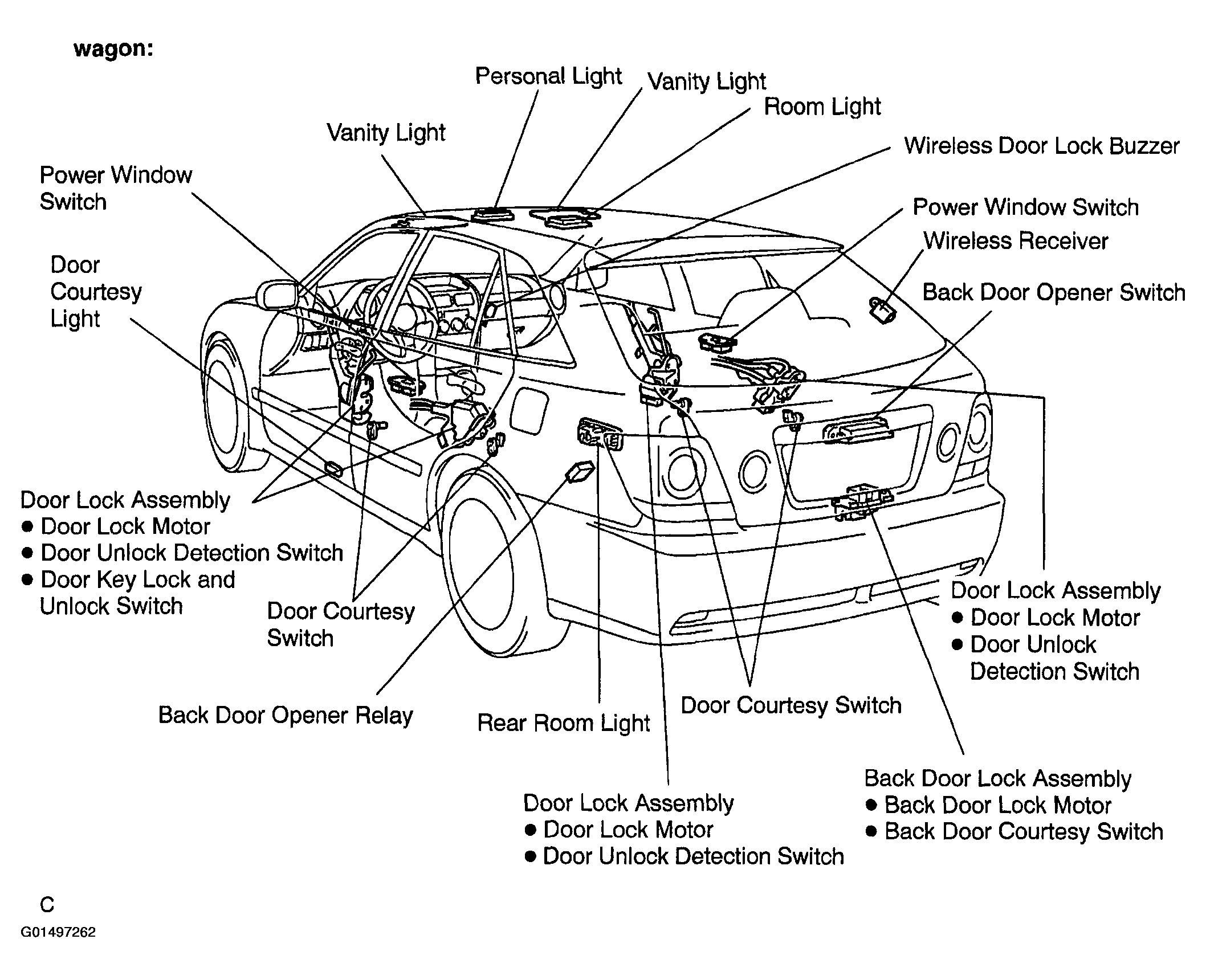

Fig 2: Identifying Parts Location (Wagon)
G01497262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
