Air Conditioning Unit: Components

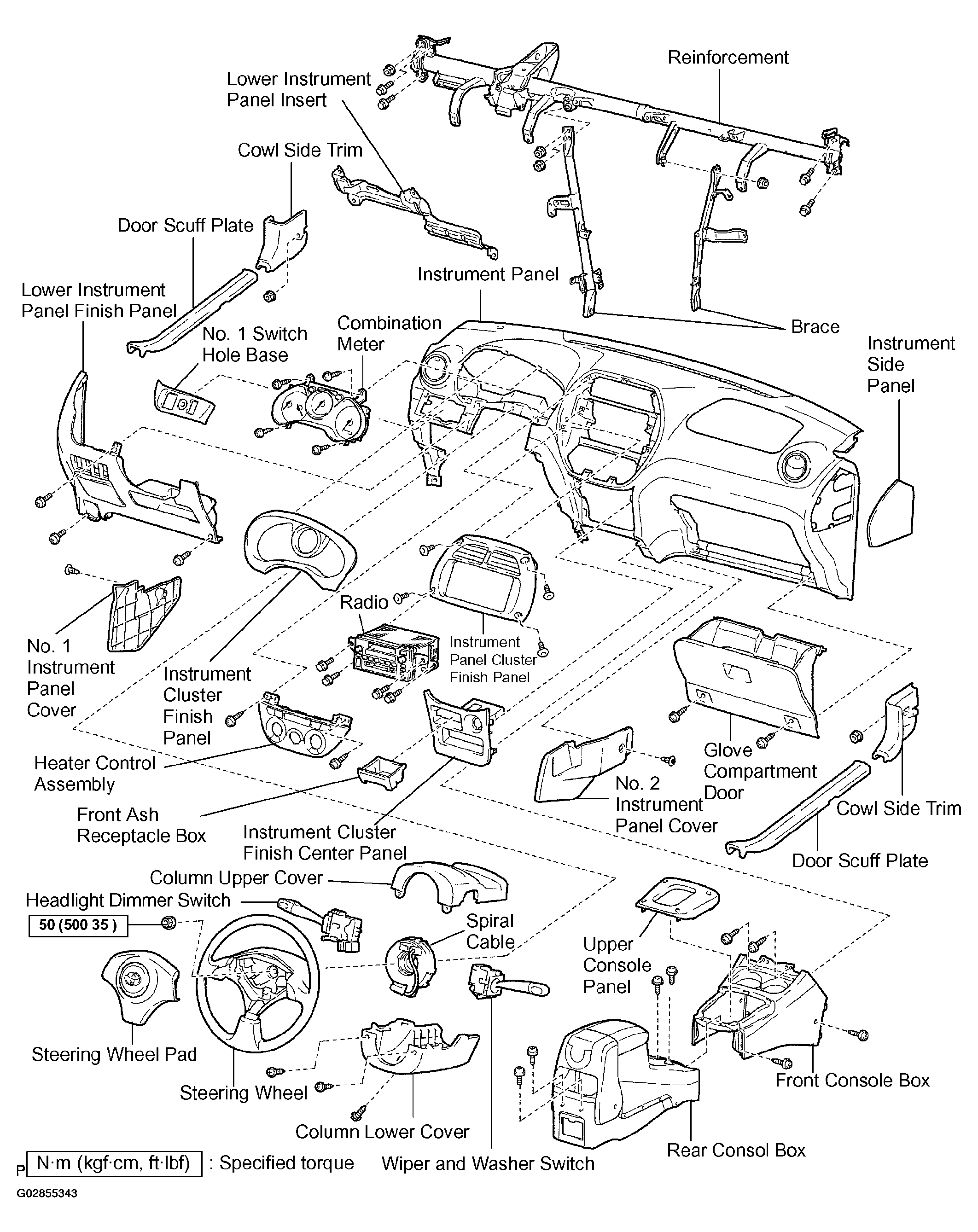

Fig 1: Exploded View Of Instrument Panel Components
G02855343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

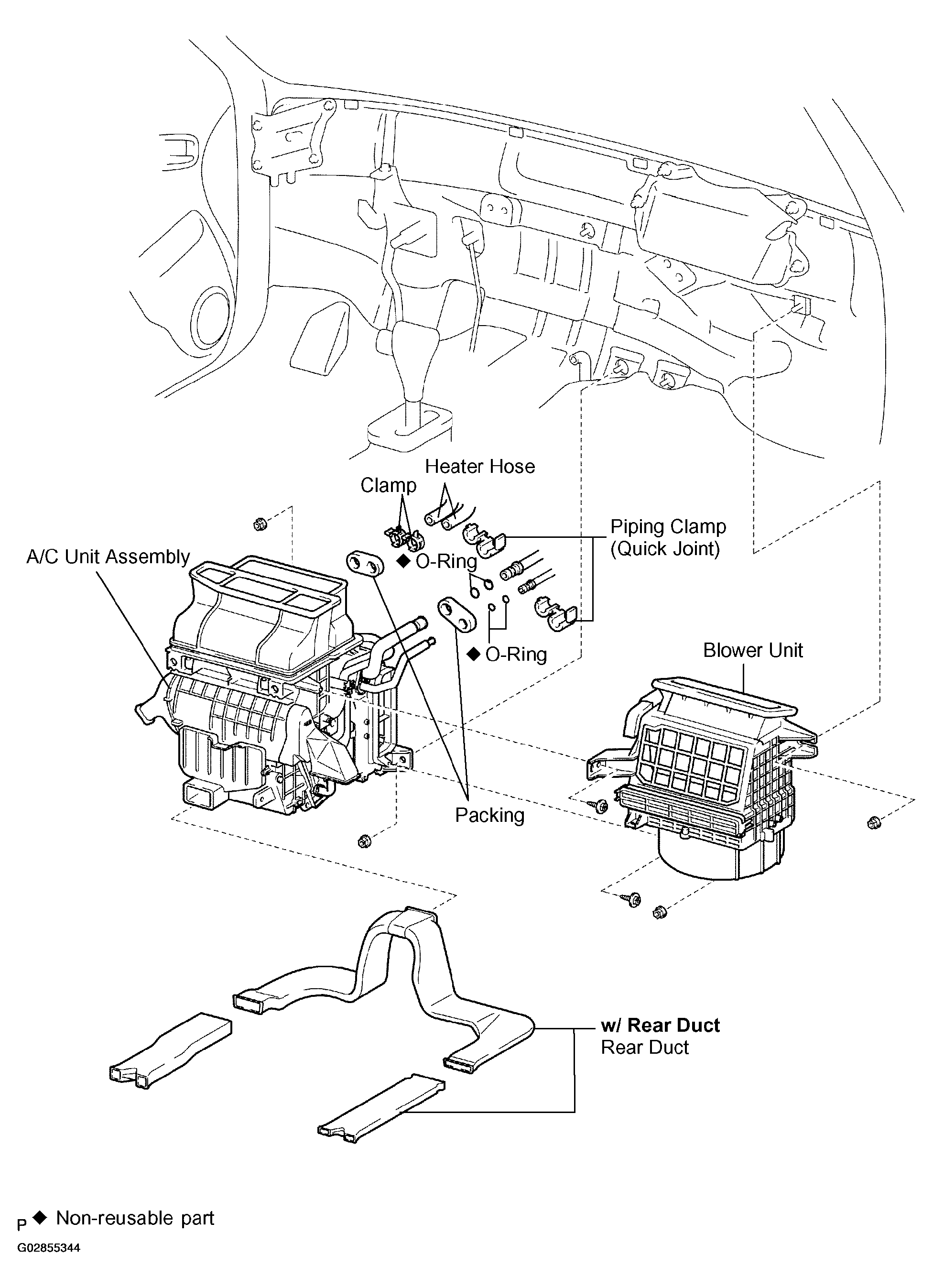

Fig 2: Removing Air Conditioning Unit
G02855344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

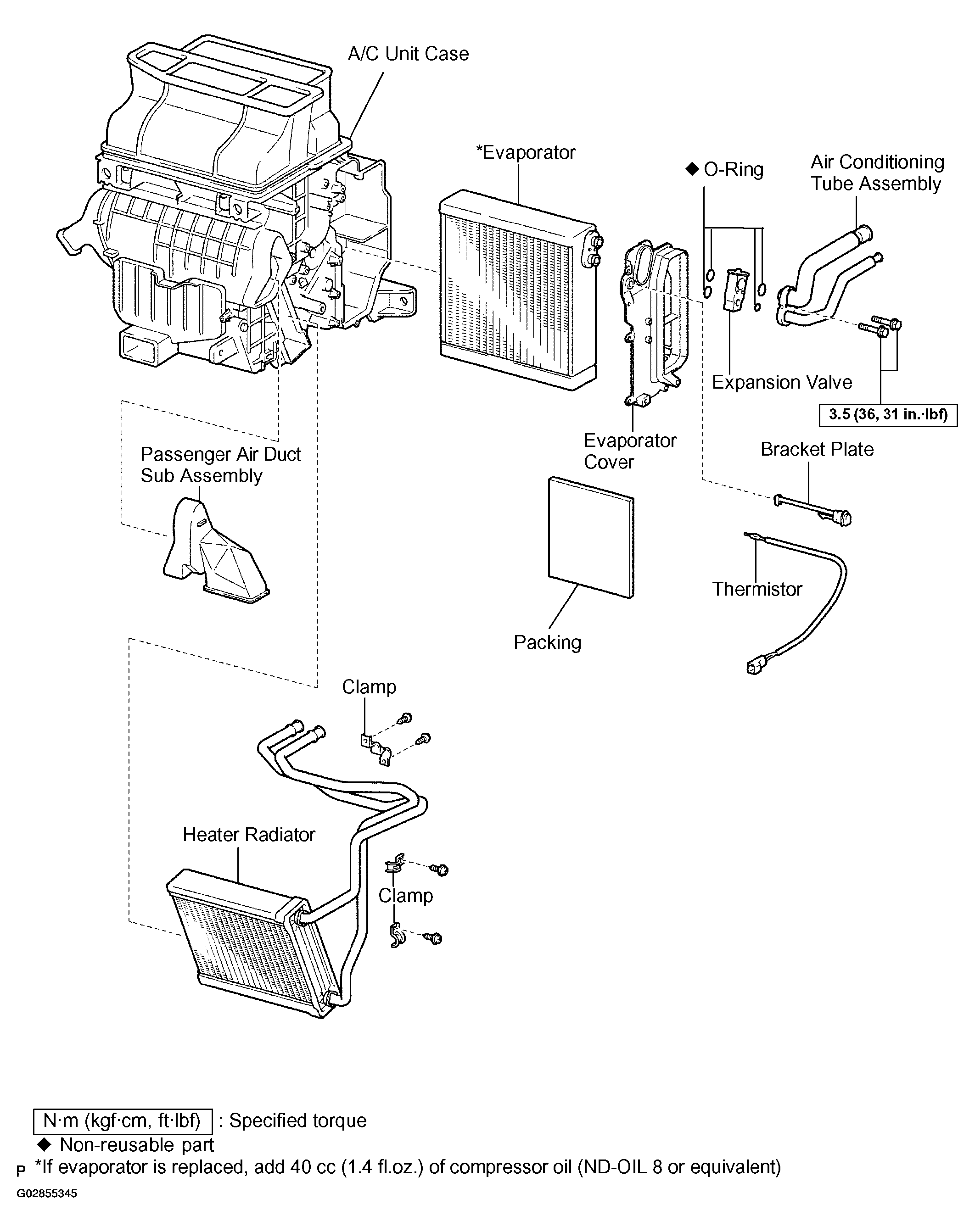

Fig 3: Exploded View Of Air Conditioning Unit
G02855345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
