Front Brake Speed Sensor: Components

NOTE:

Pre runner is the described below.

RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB

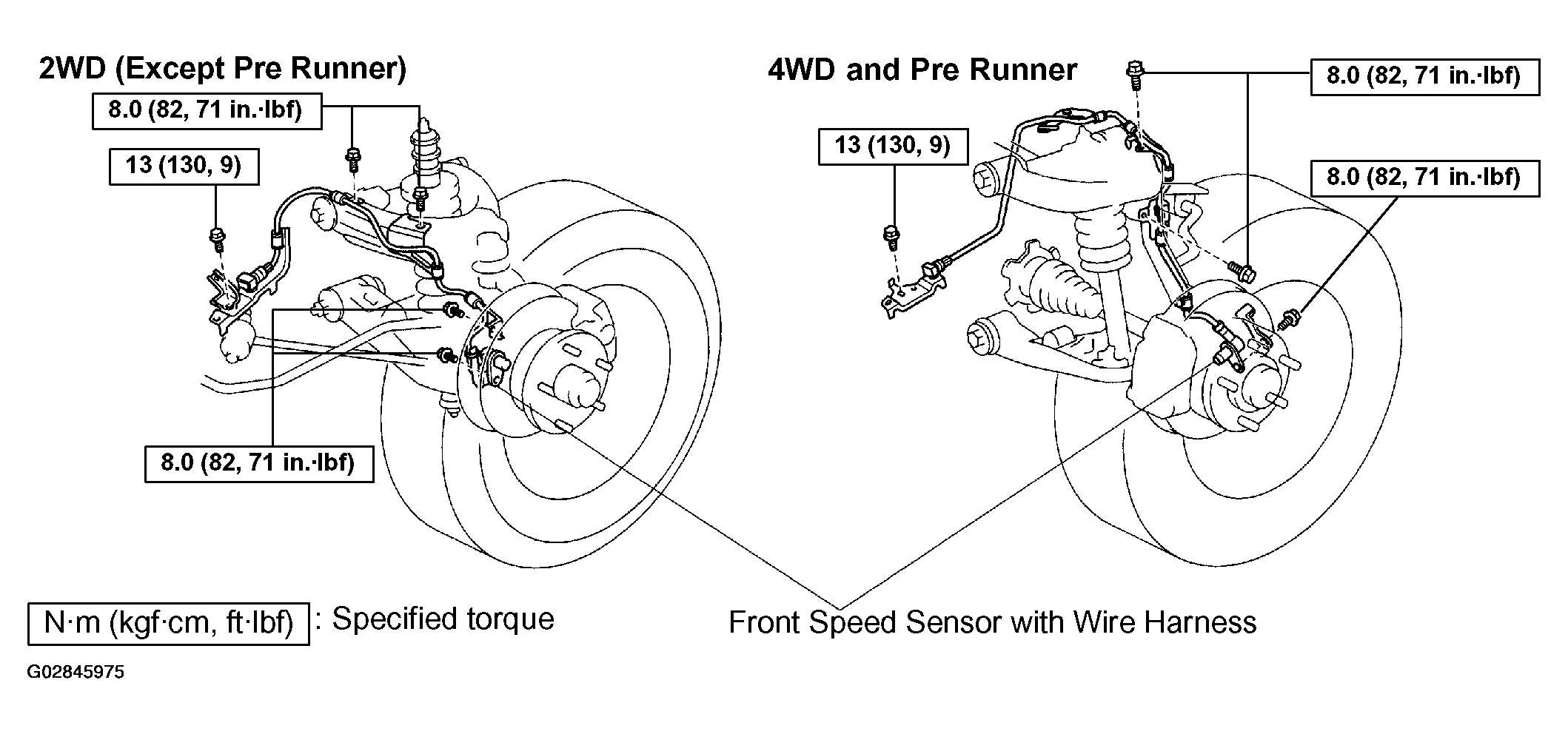

Fig 1: Identifying Front Speed Sensor Location
G02845975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
