DTC P0110: Intake Air Temperature Circuit: Wiring Diagram

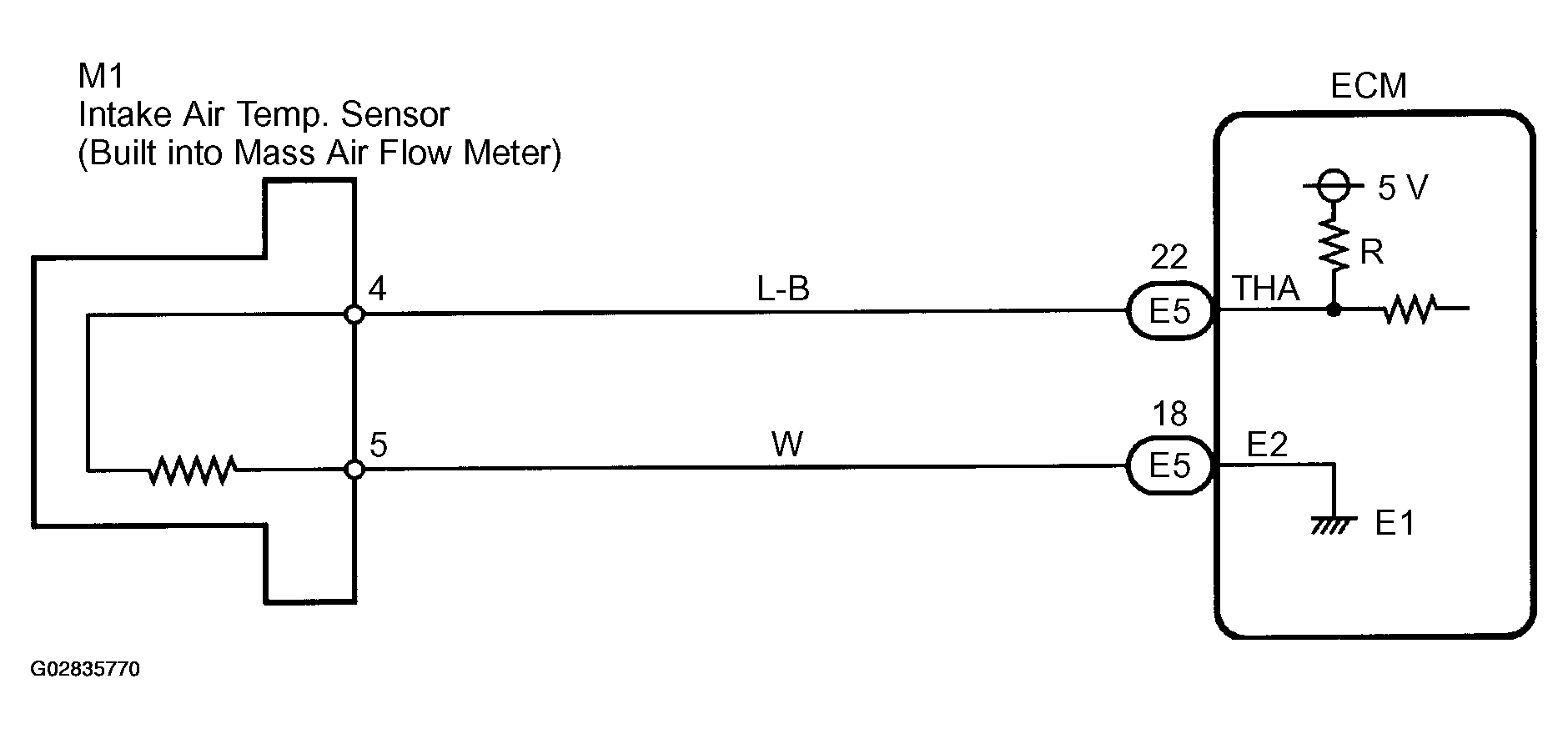

Fig 1: Identifying Wiring Diagram
G02835770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
