Automatic Transaxle Unit: Installation
- CHECK TORQUE CONVERTER CLUTCH INSTALLATION

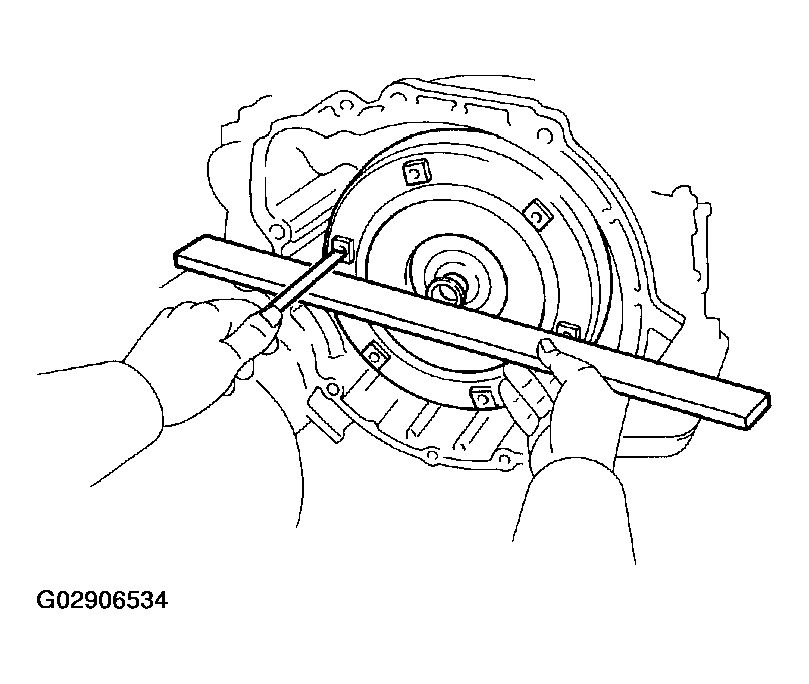

Using calipers and a straight edge, measure the distance from the installed surfaced of the transaxle housing to the torque converter clutch.
Correct distance: 9.3 mm (0.366 in.)
- TRANSAXLE INSTALLATION
Installation is in the reverse order of removal (See REMOVAL
).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
- After installation, adjust the park/neutral position switch (See PRE-CHECK
).
- Fill ATF and check fluid level (See PRE-CHECK
).
- Do test to drive the vehicle (See PRE-CHECK
).
