How To Proceed With Troubleshooting

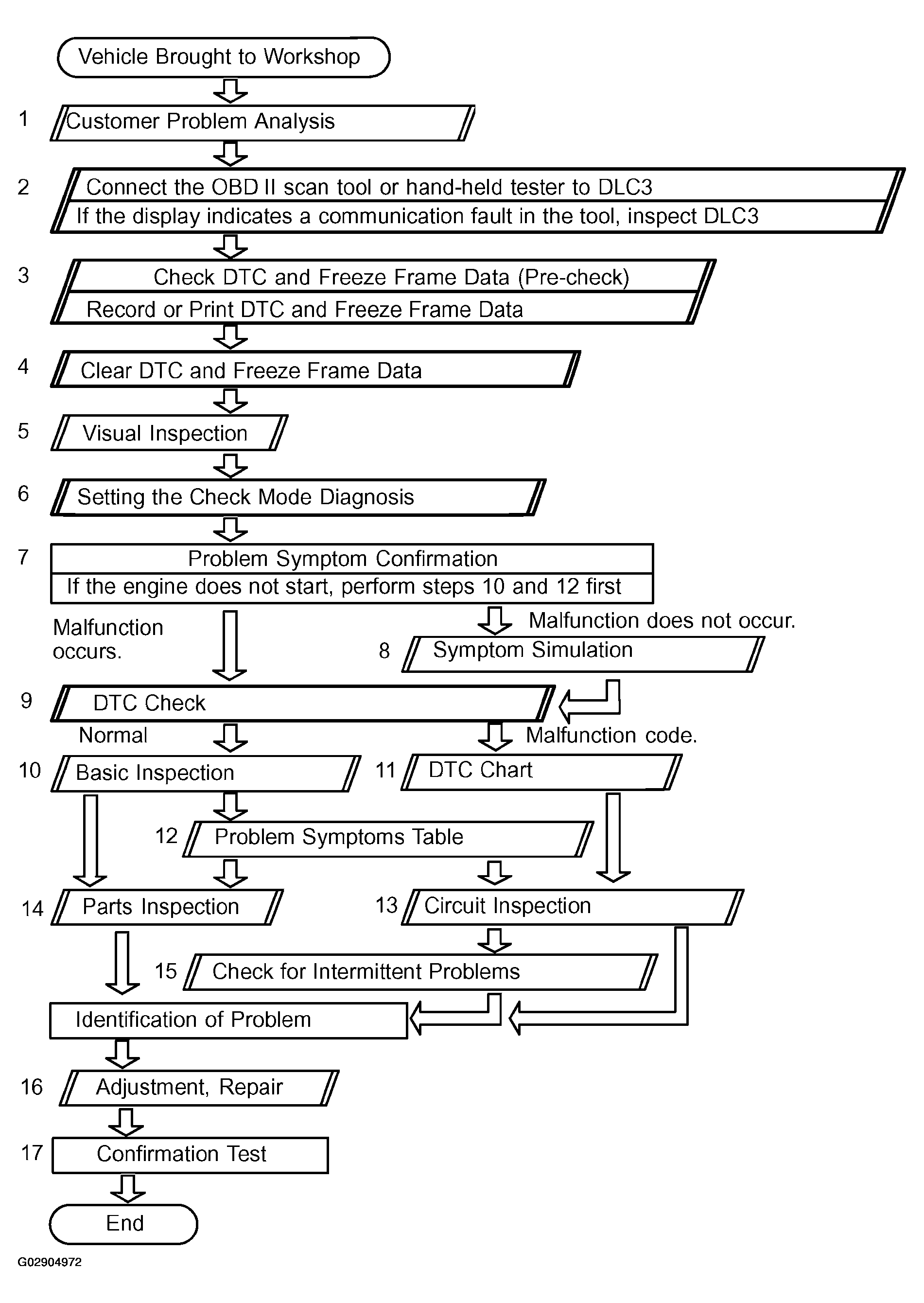

Fig 1: Engine Troubleshooting Flow Chart
G02904972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
