Body Clips: Replacement

The removal and installation methods of typical clips used in body parts are shown in Fig 2 .

HINT:

If the clip is damaged during the operation, always replace it with a new clip.

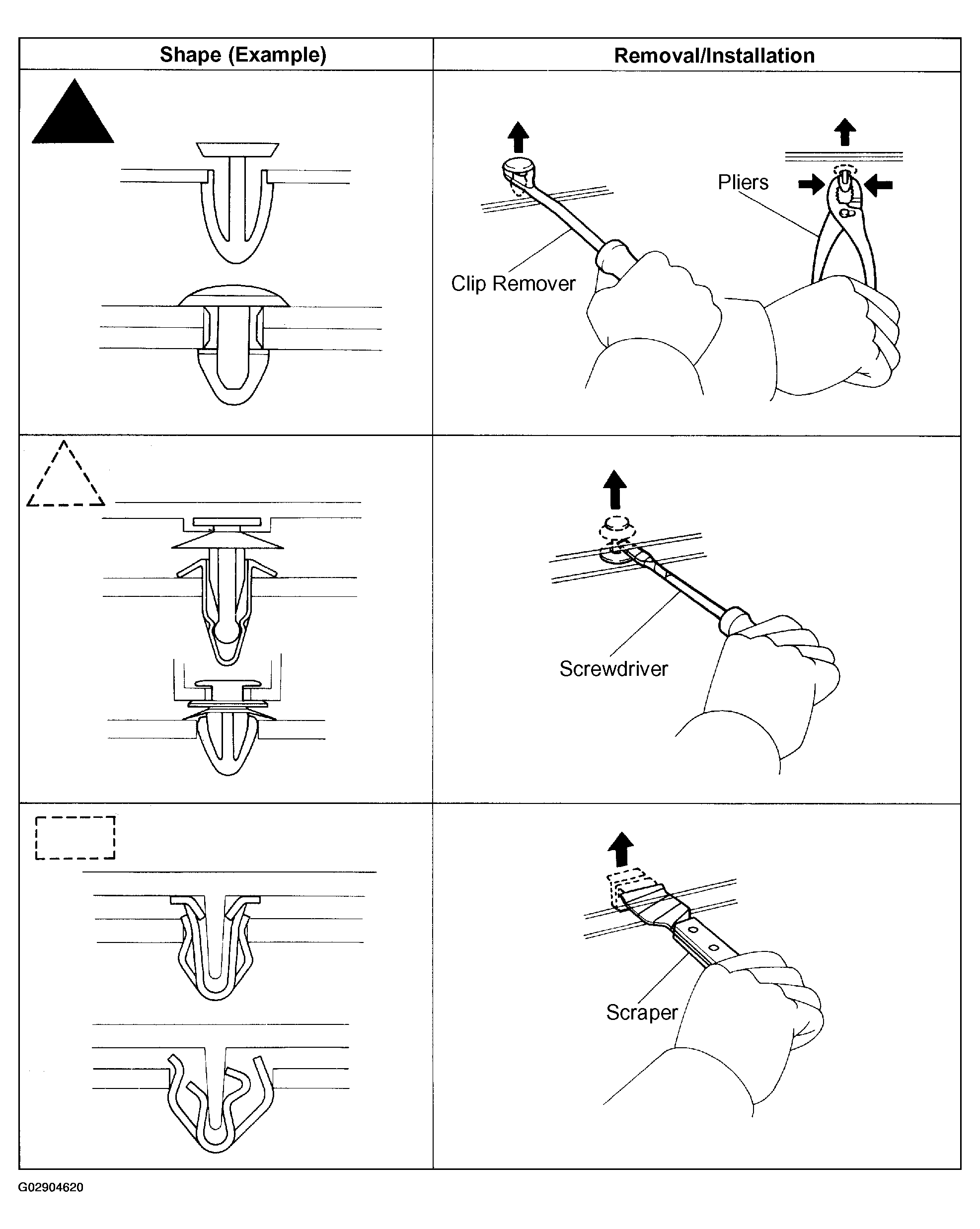

Fig 1: Removing/Installing Body Clip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

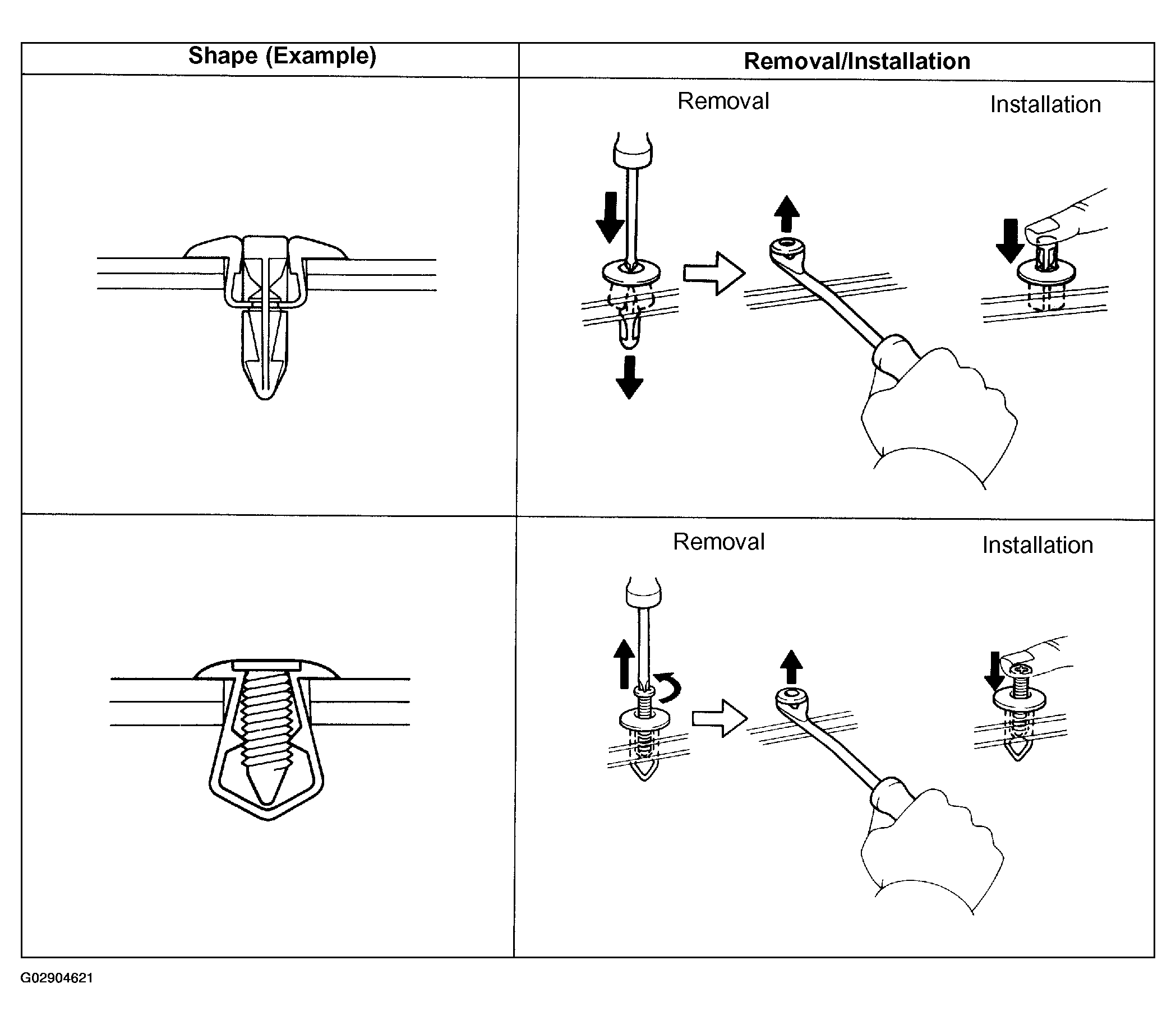

Fig 2: Removing/Installing Body Clip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
