Possible Causes

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

For DTC detection condition and possible causes, see Fig 1.

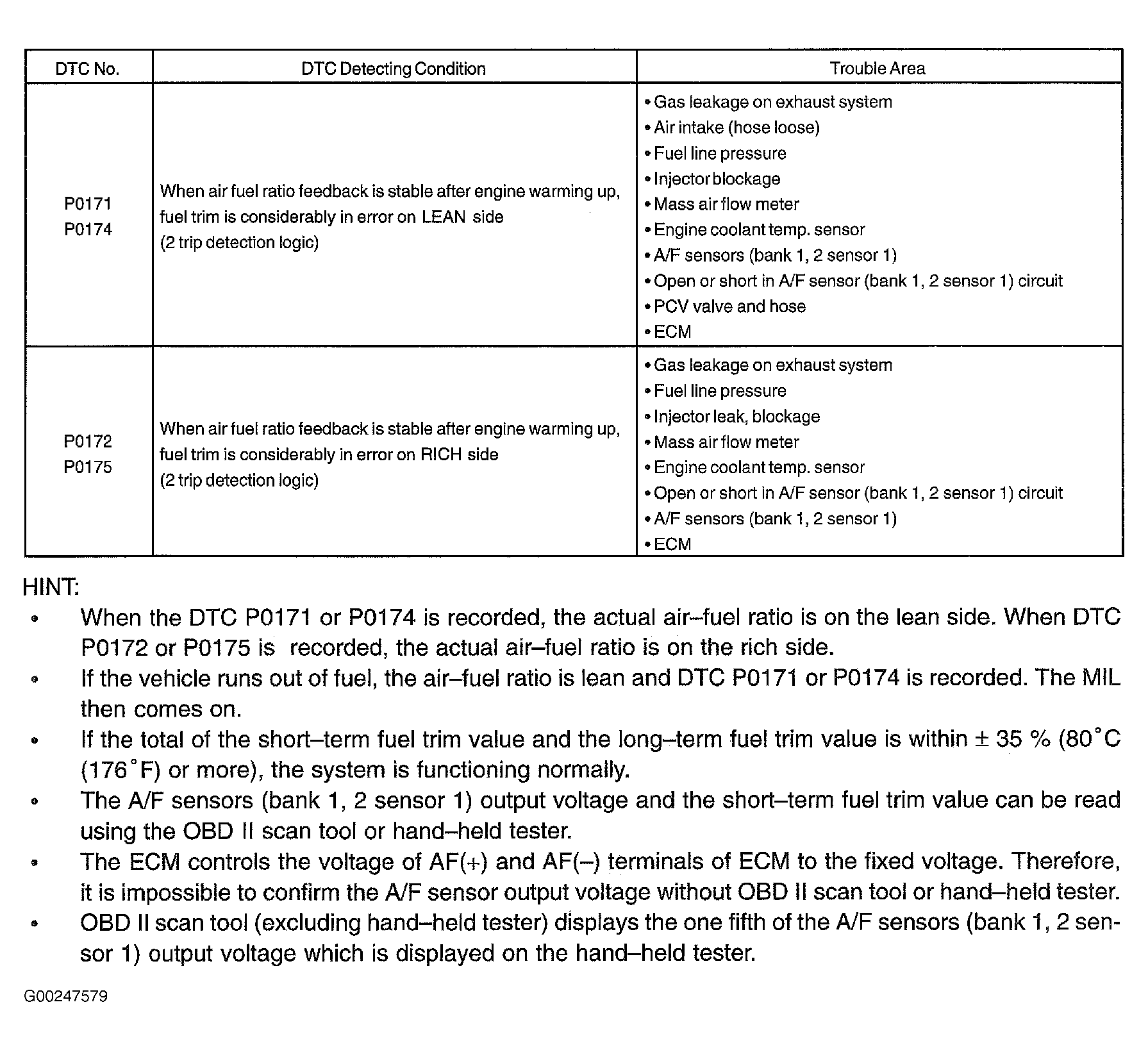

Fig 1: DTC Detection Conditions & Possible Causes
G00247579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
