Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure with Toyota Hand-held tester or an Enhanced OBD II scan tool, see Fig 1-Fig 21 .

For diagnosis and repair procedure with OBD II scan tool (Non Enhanced), see Fig 22-Fig 29 .

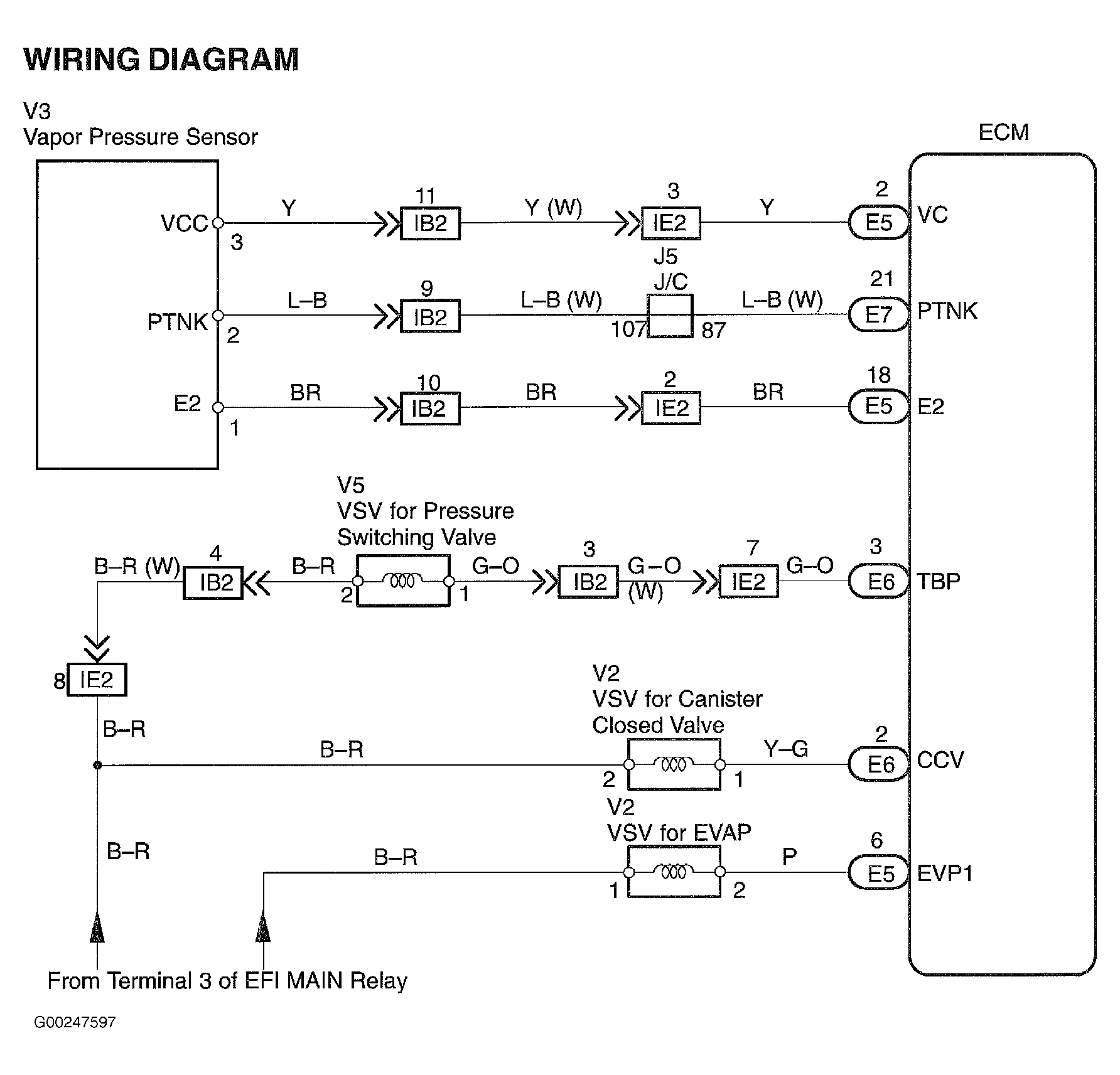

For EVAP emission system circuit wiring diagram, see Figure. For EVAP emission system component locations, see Figure.

When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure.

For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

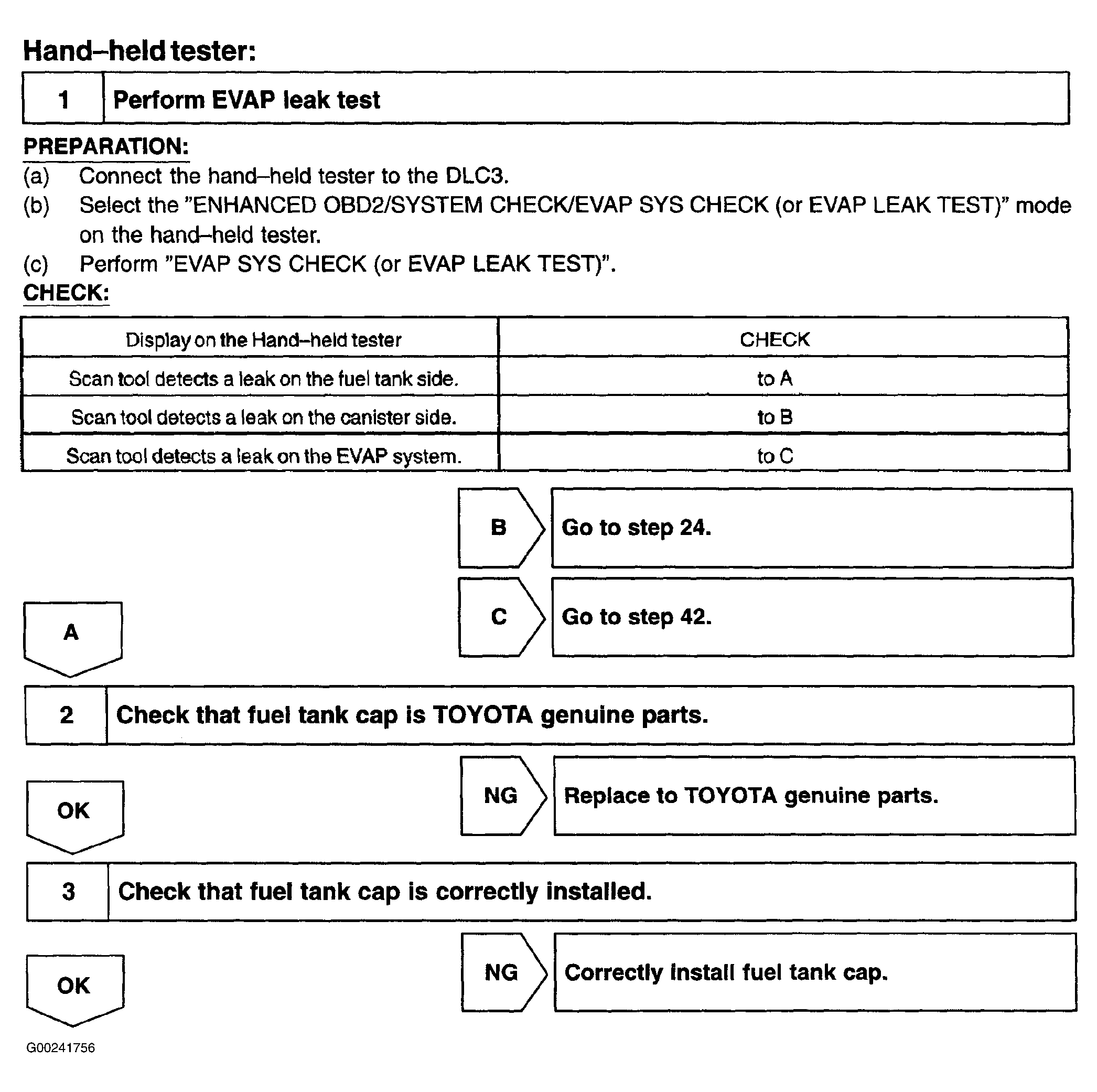

Fig 1: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 1-3)

G00241756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

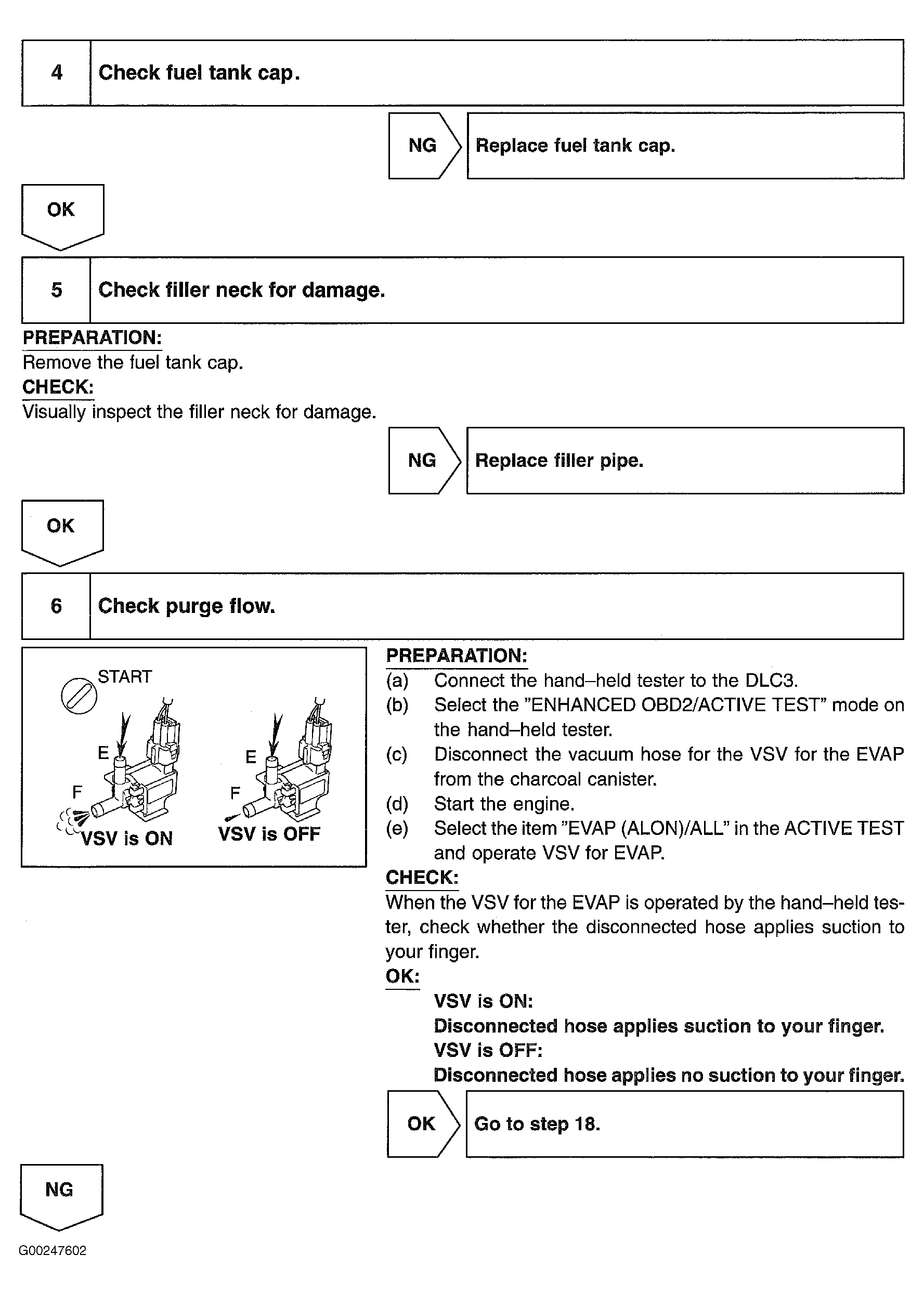

Fig 2: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 4-6)

G00247602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

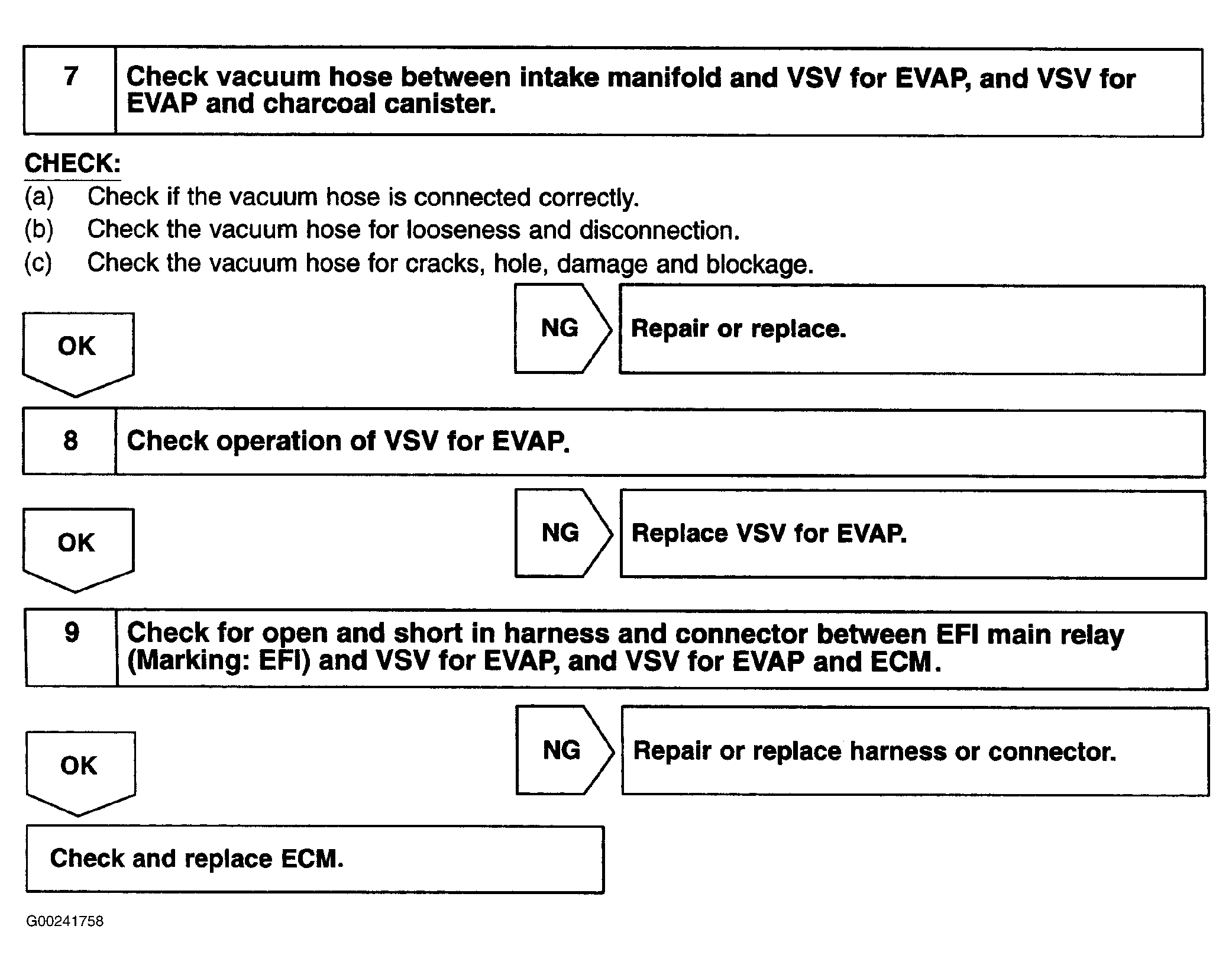

Fig 3: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 7-9)

G00241758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

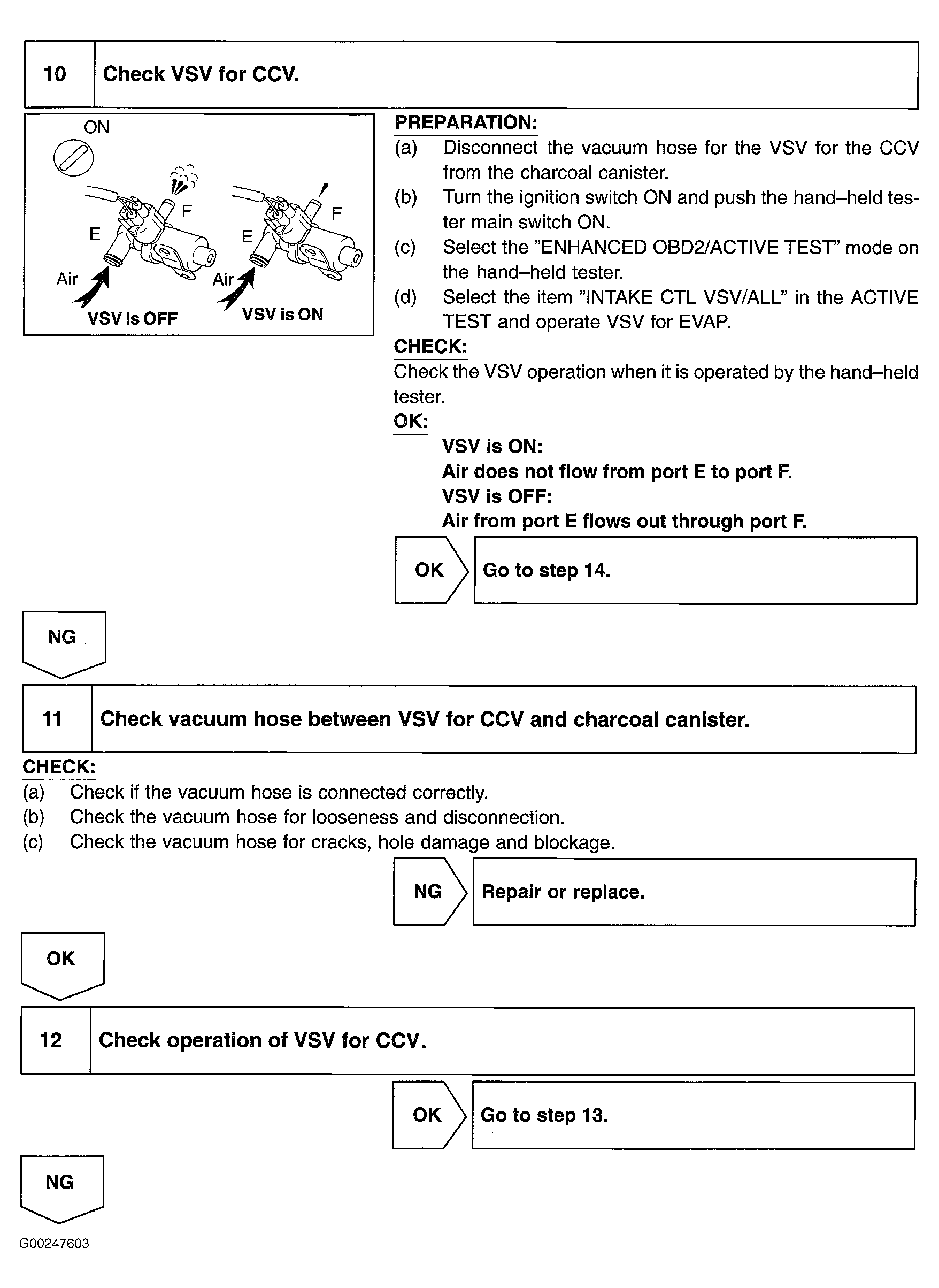

Fig 4: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 10-12)

G00247603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

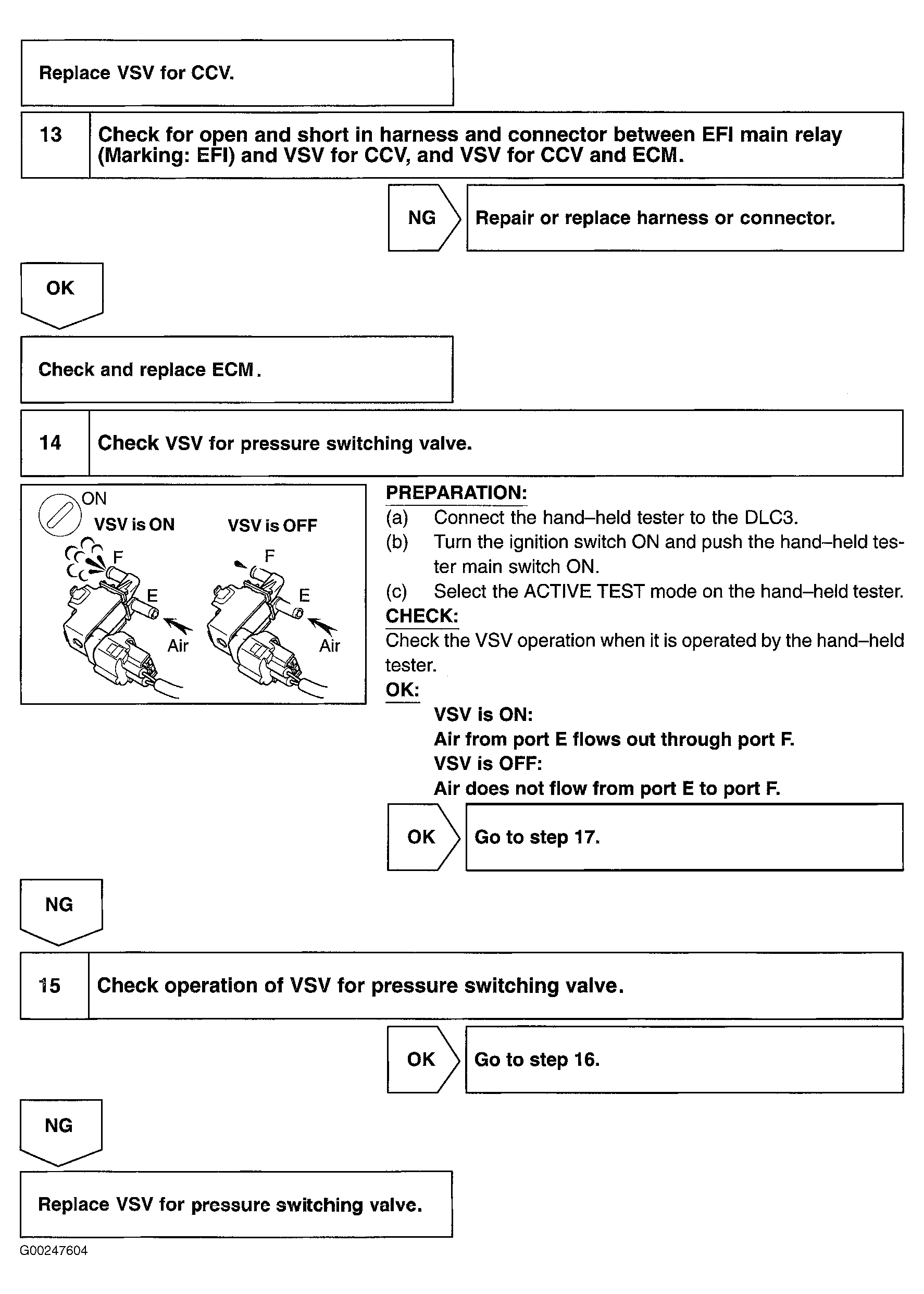

Fig 5: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Step 12 Cont. & Steps 13-15)

G00247604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

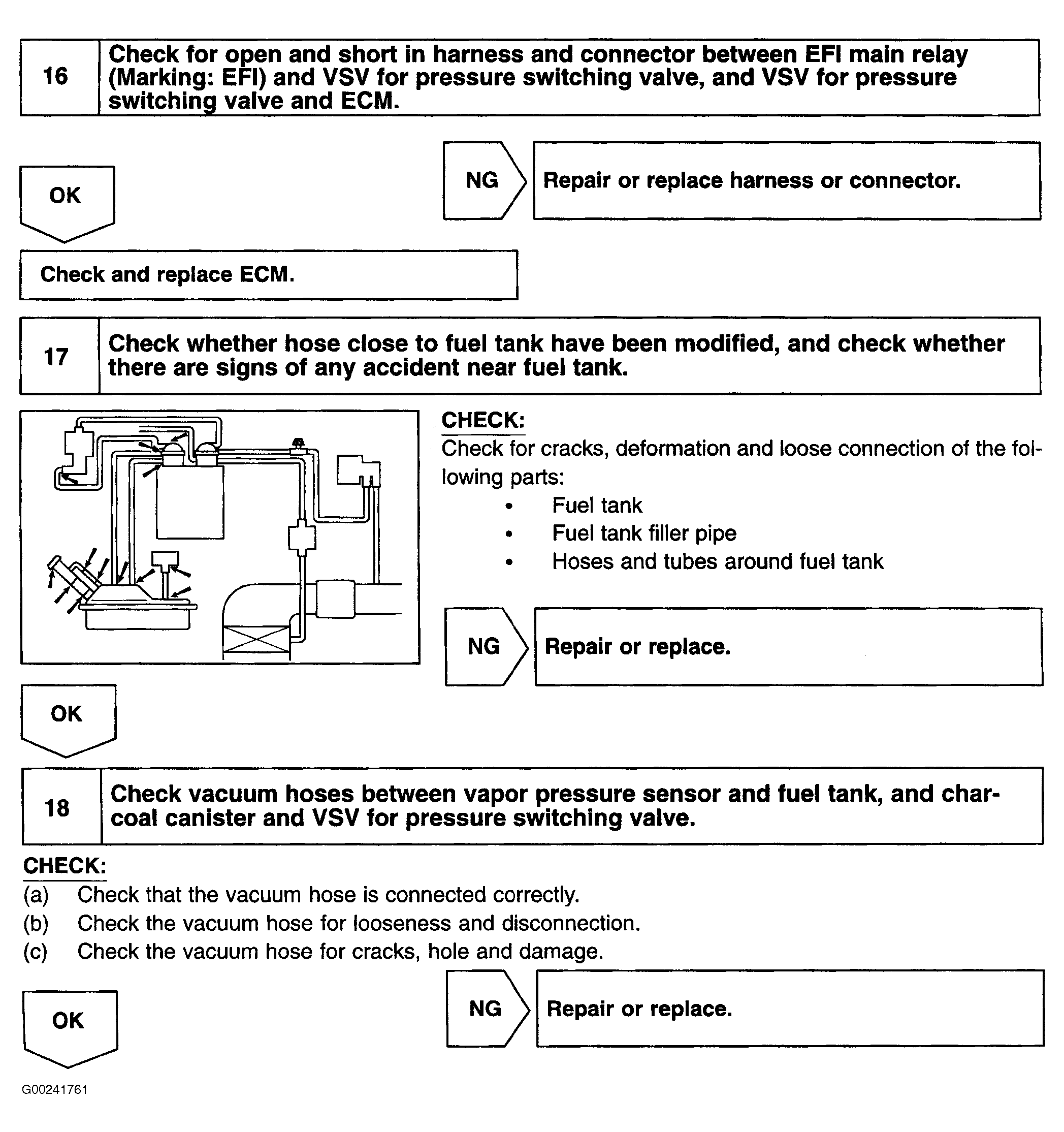

Fig 6: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 16-18)

G00241761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

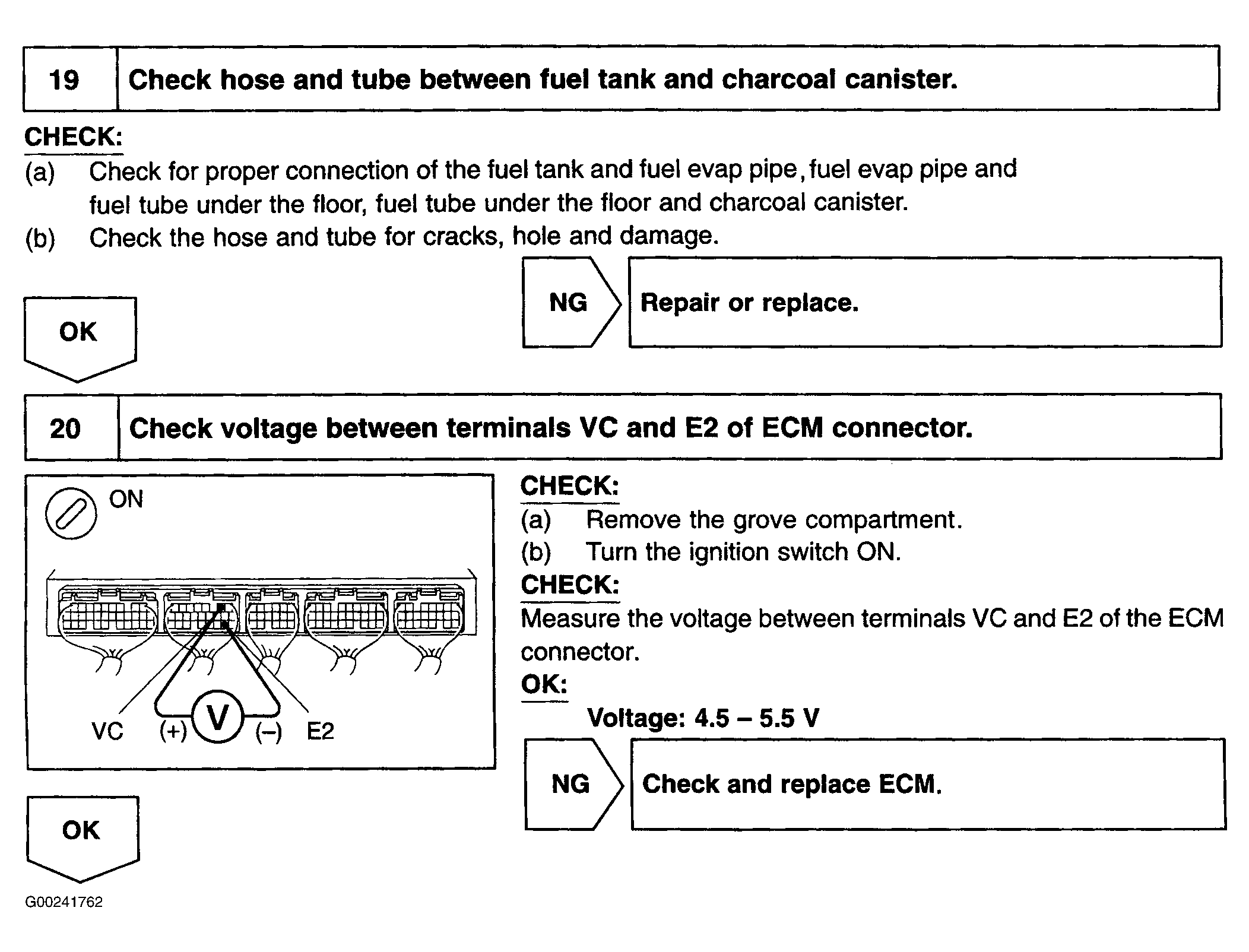

Fig 7: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 19-20)

G00241762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

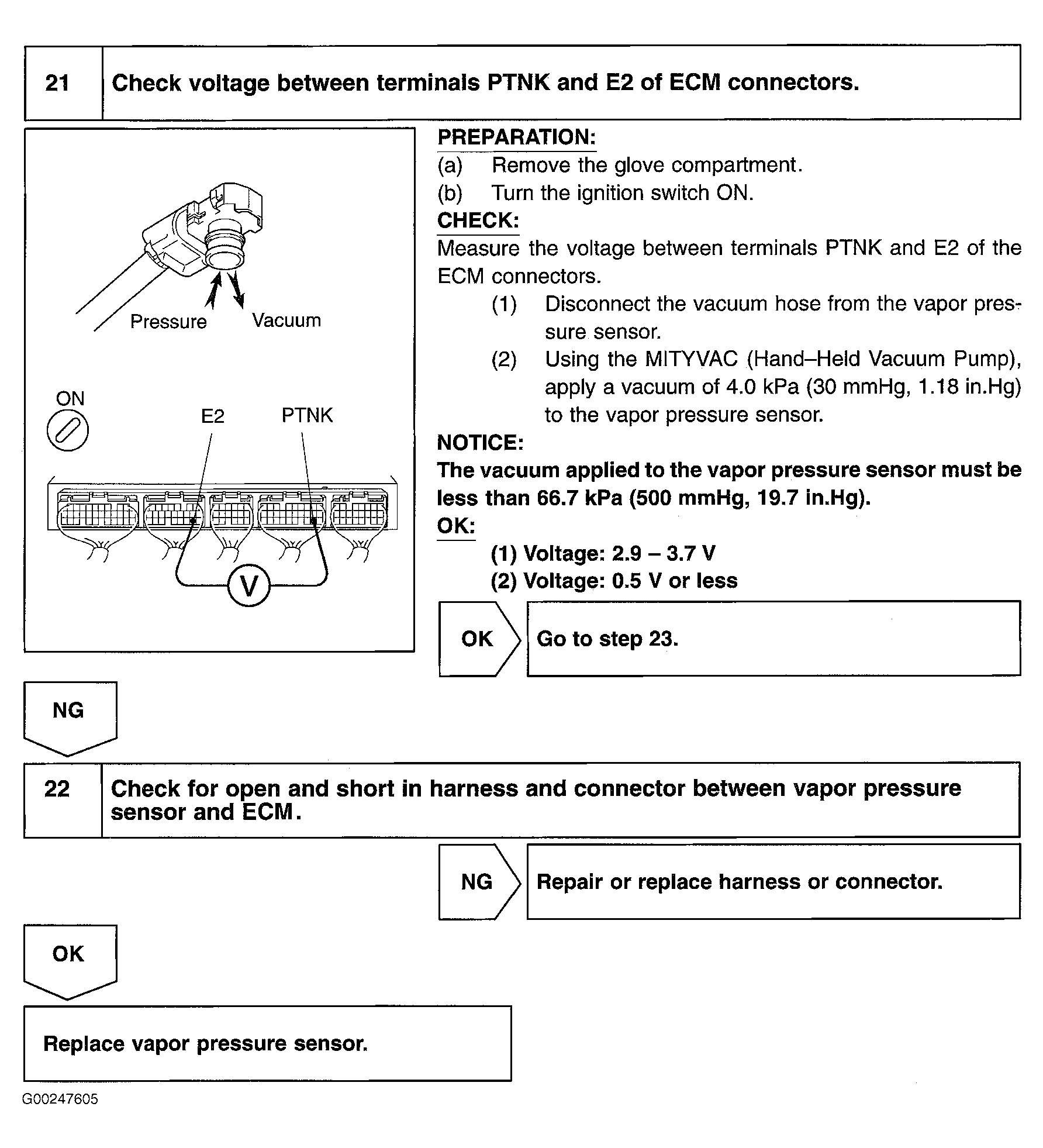

Fig 8: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 21-22)

G00247605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

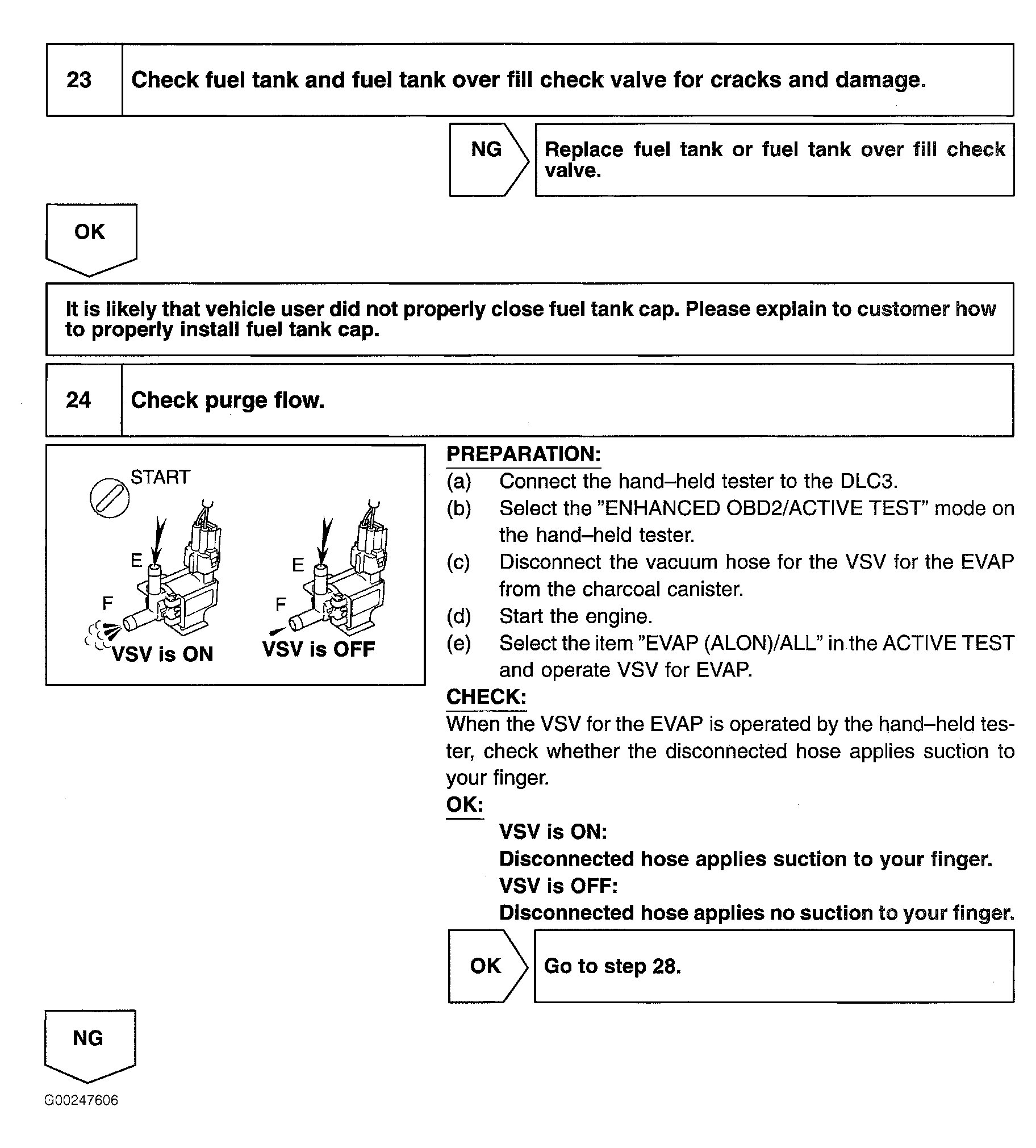

Fig 9: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 23-24)

G00247606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 25-27)

G00241765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

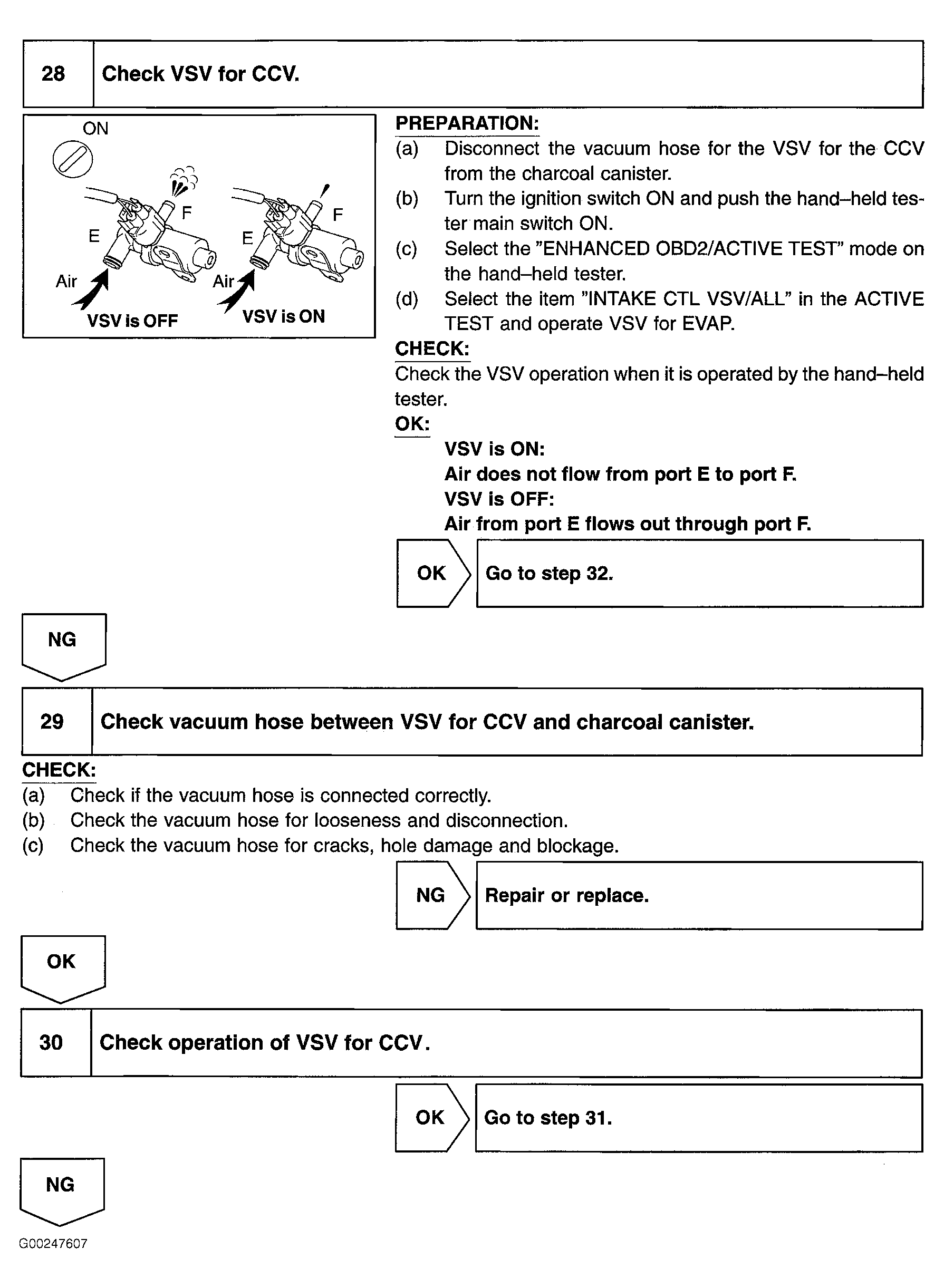

Fig 11: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 28-30)

G00247607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

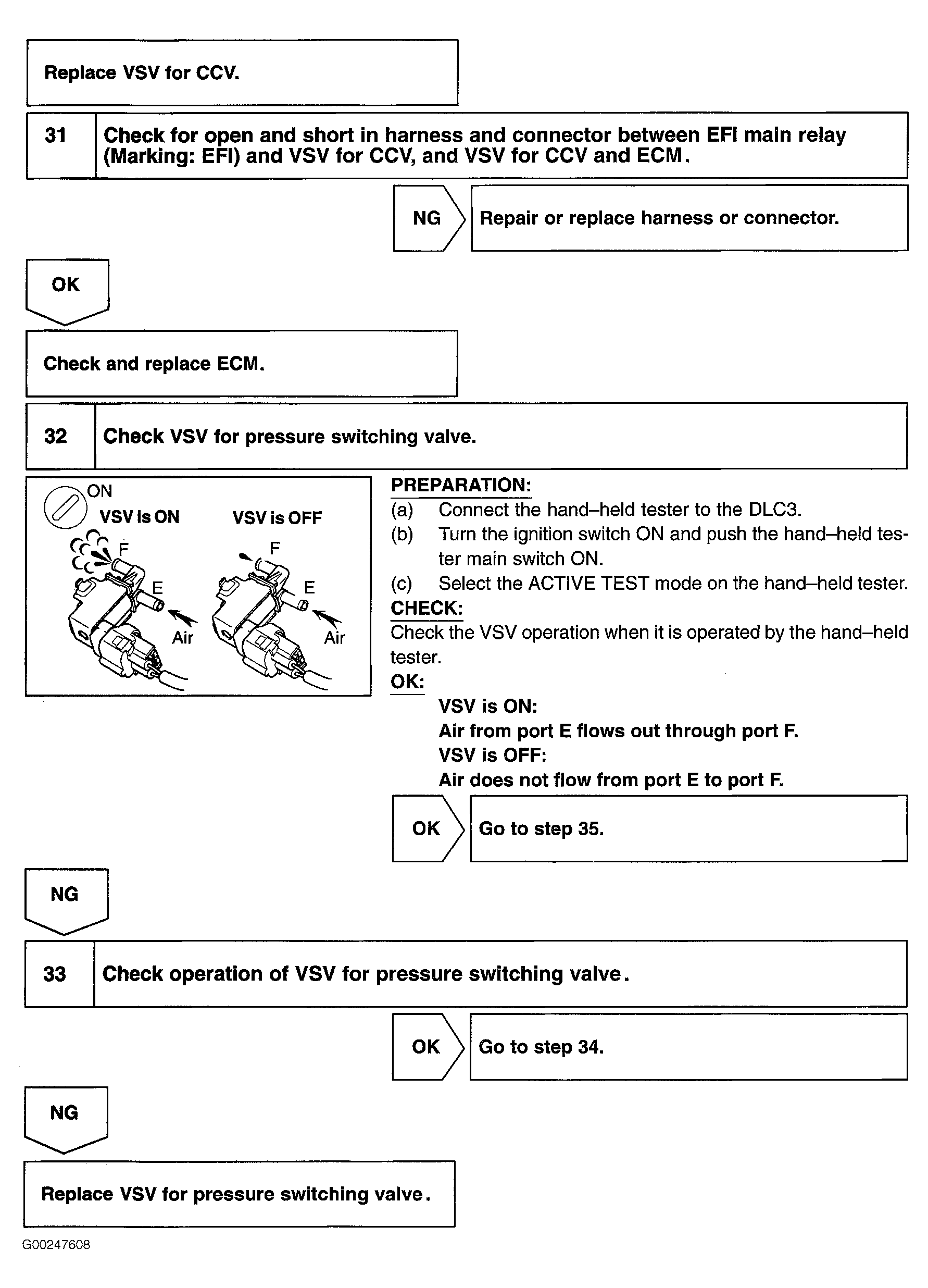

Fig 12: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 31-33)

G00247608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

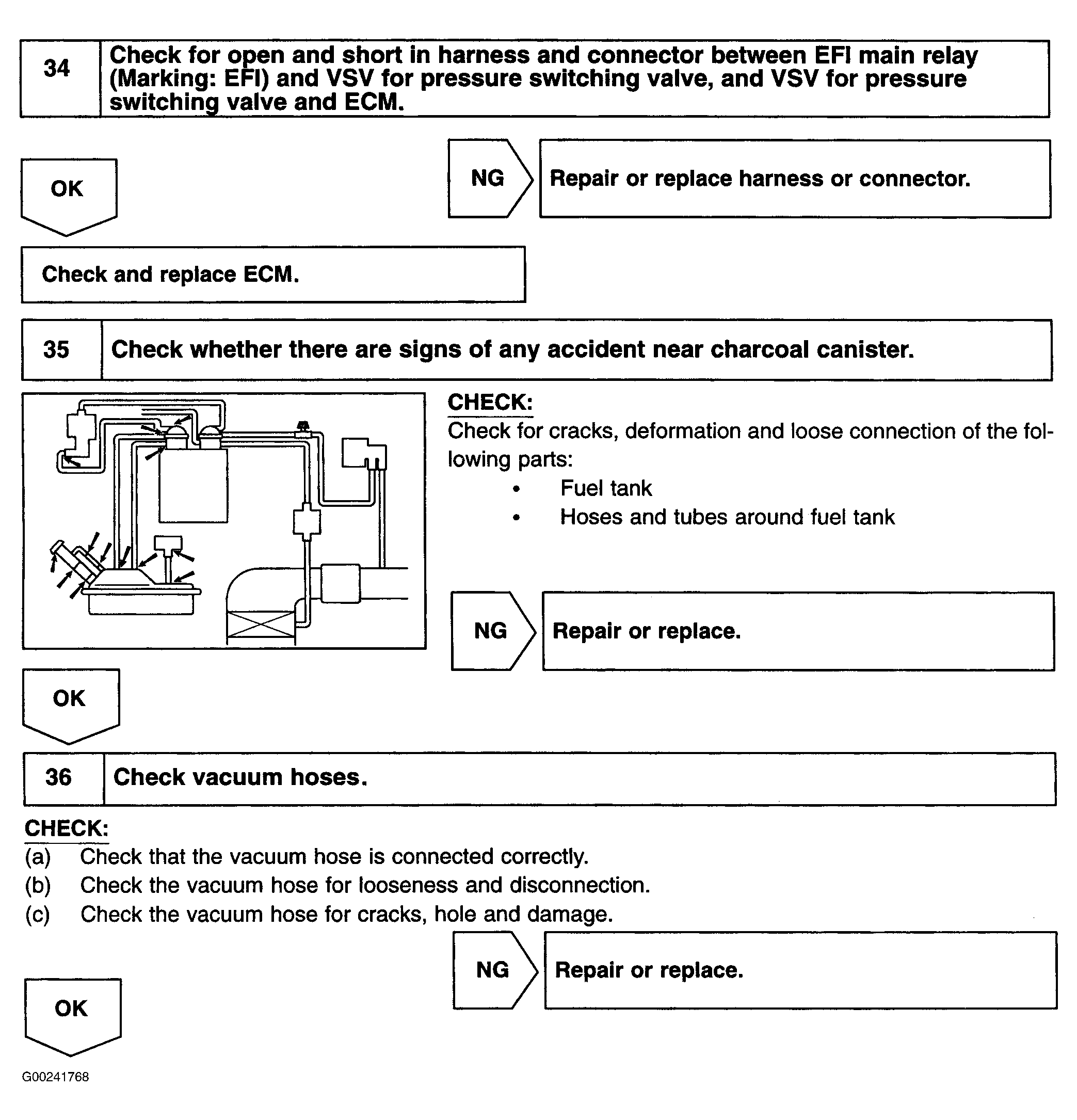

Fig 13: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 34-36)

G00241768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

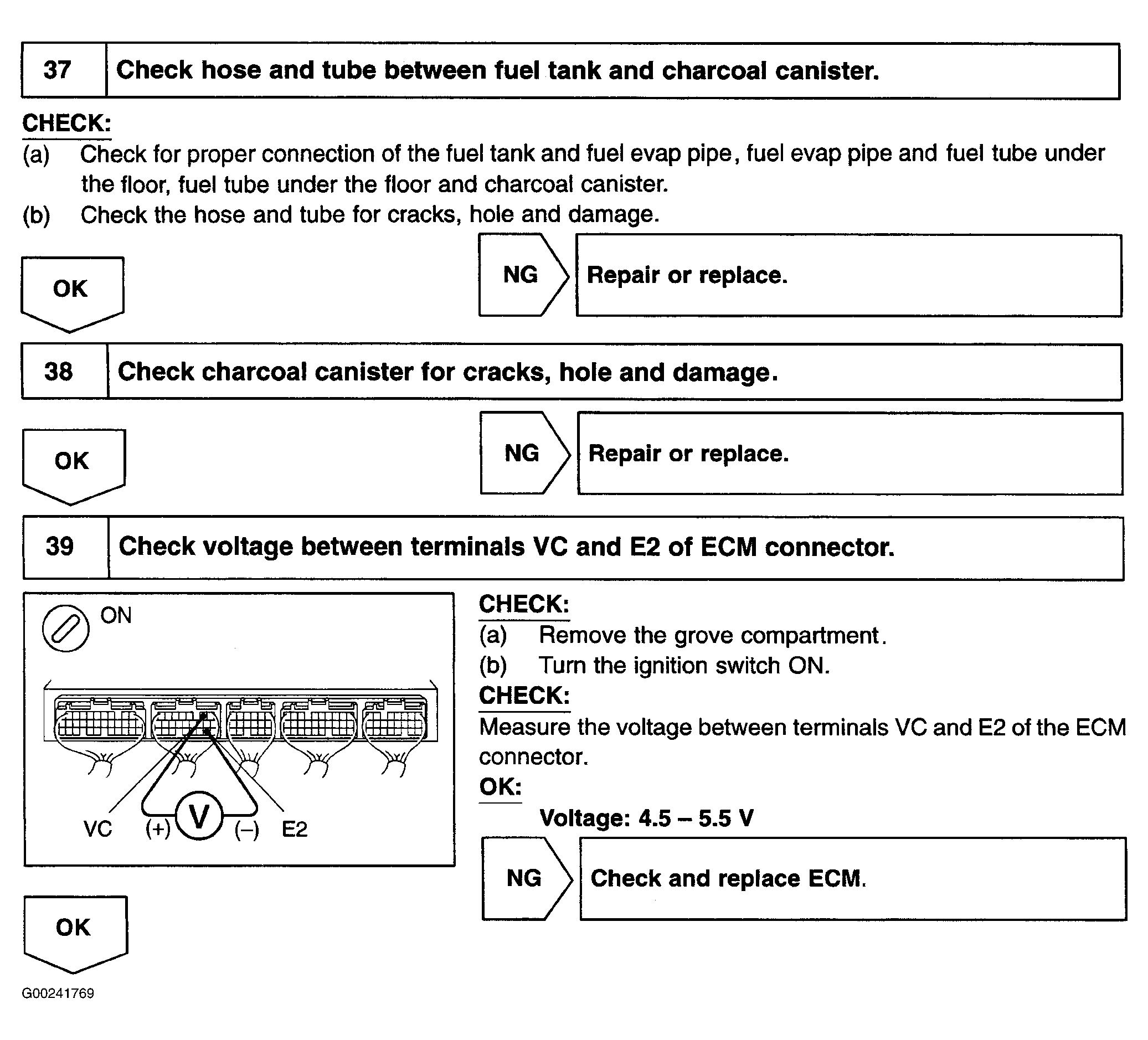

Fig 14: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 37-39)

G00241769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

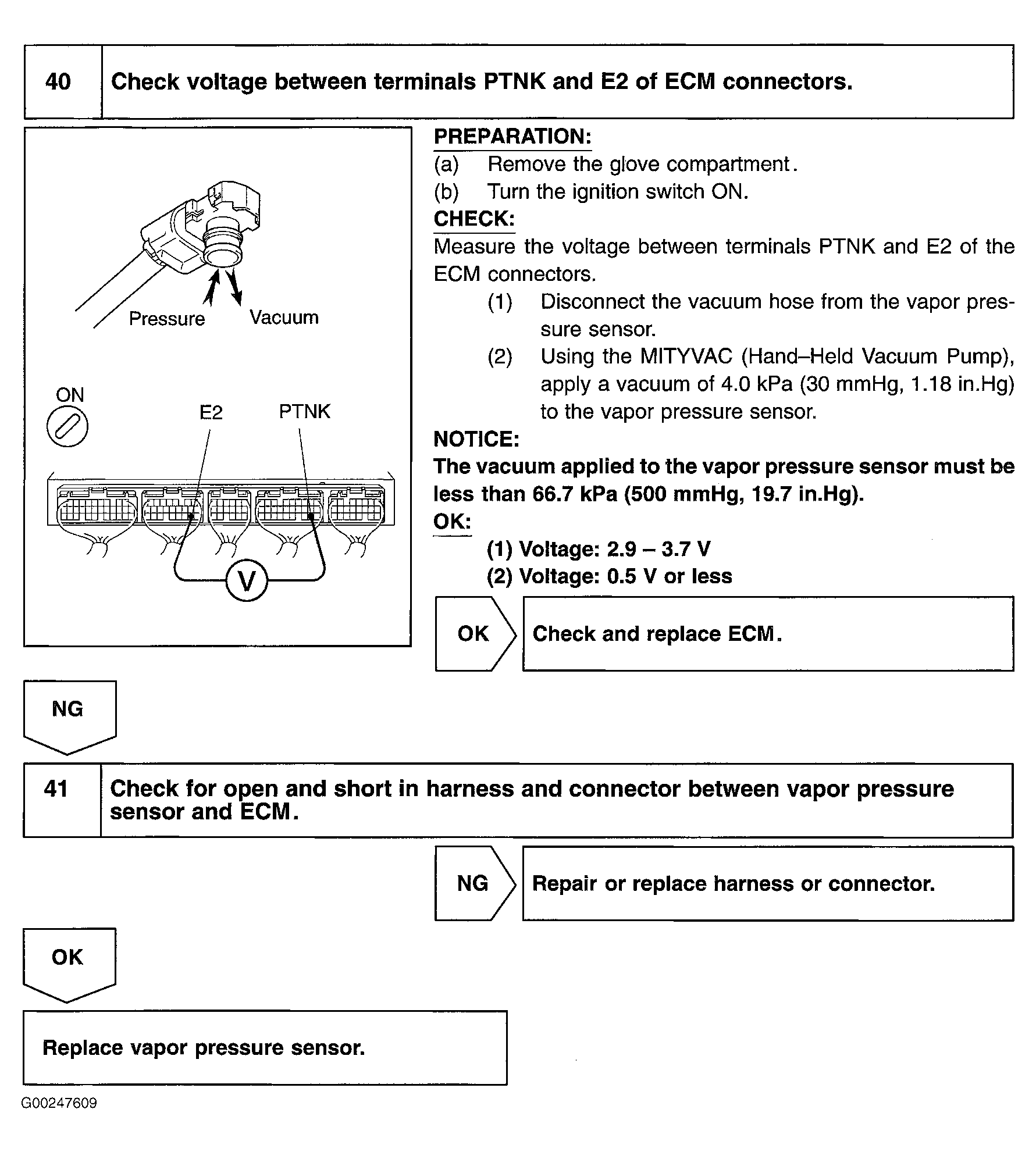

Fig 15: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 40-41)

G00247609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

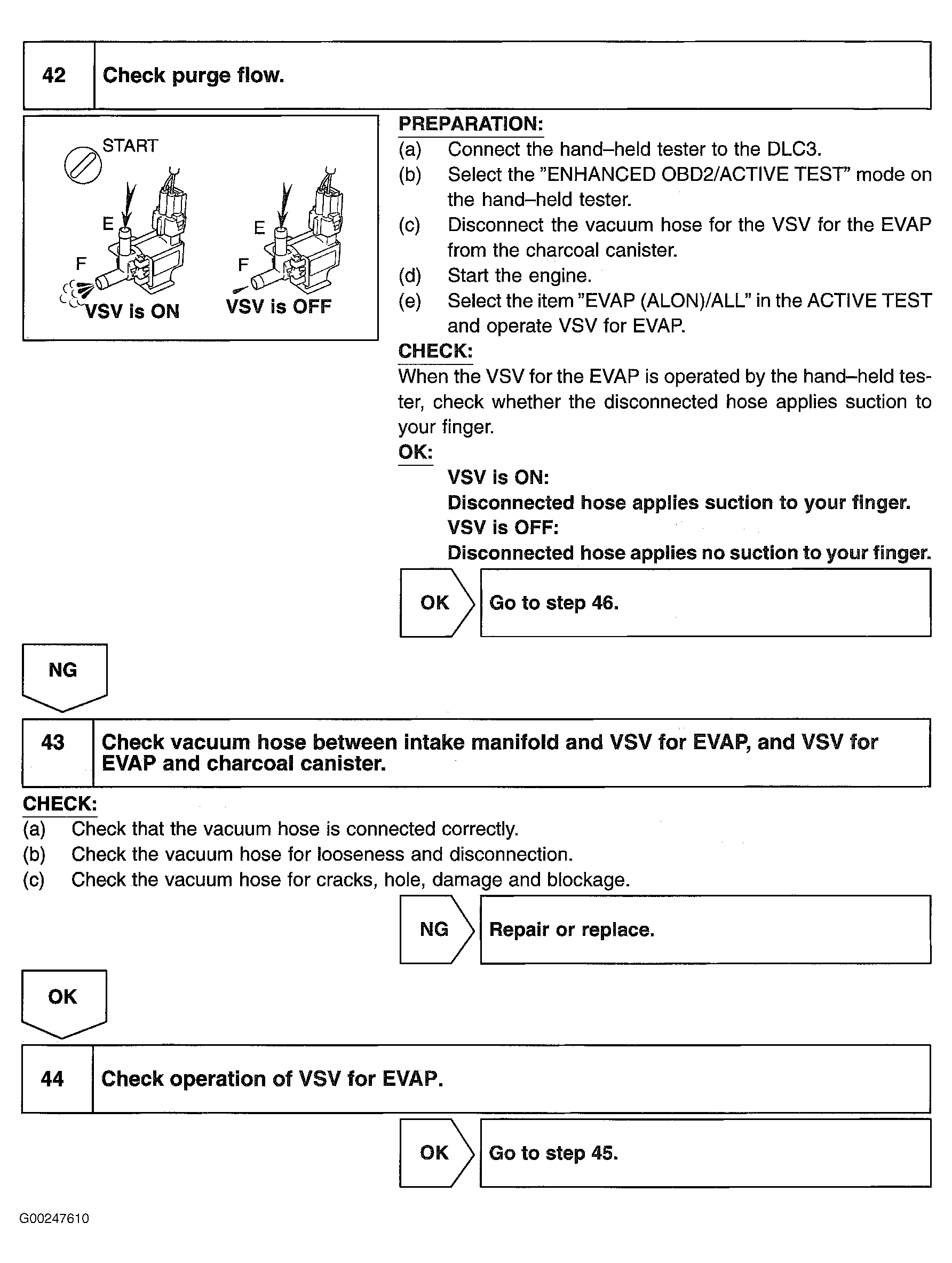

Fig 16: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 42-44)

G00247610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

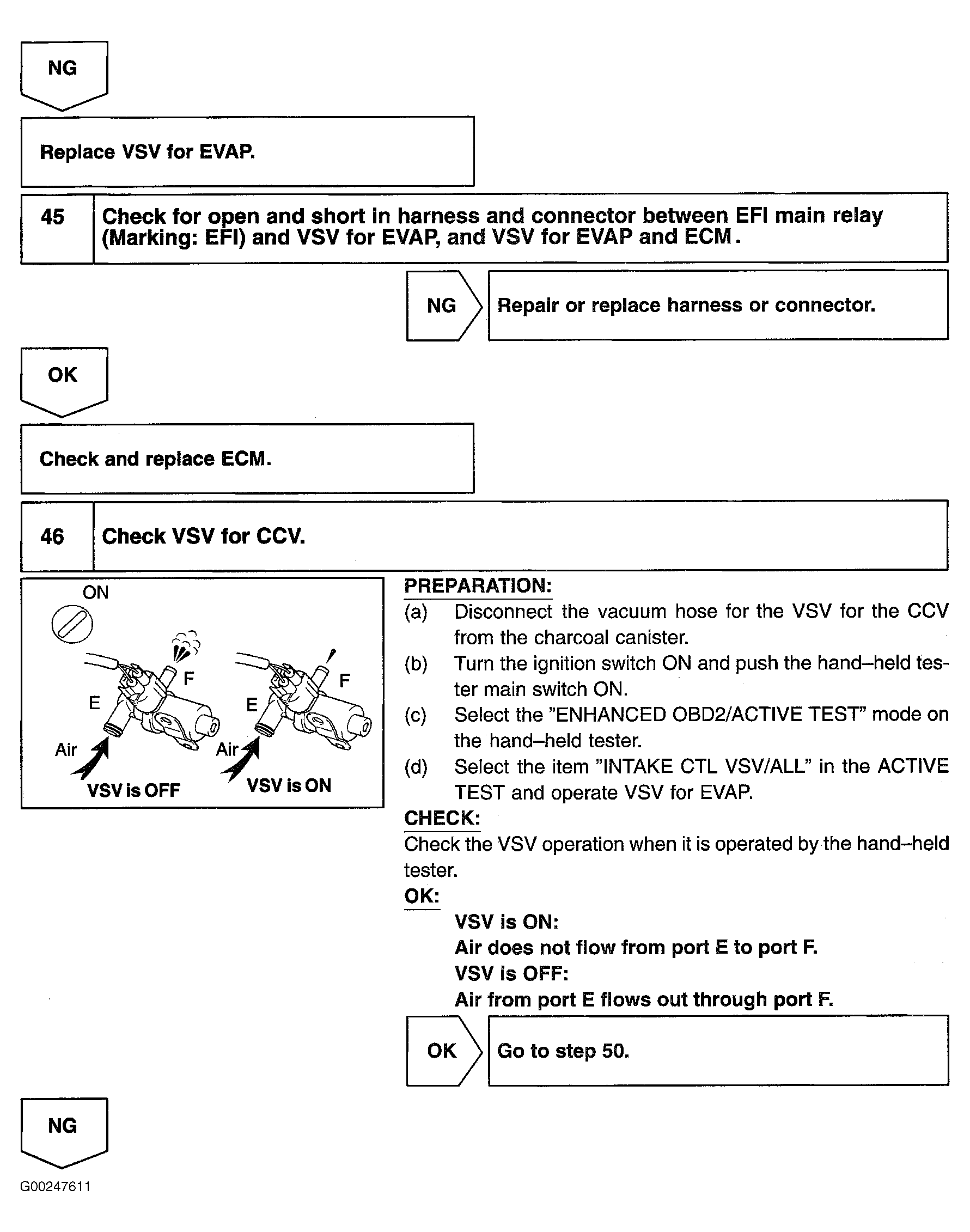

Fig 17: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Step 44 Cont. & Steps 45-46)

G00247611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

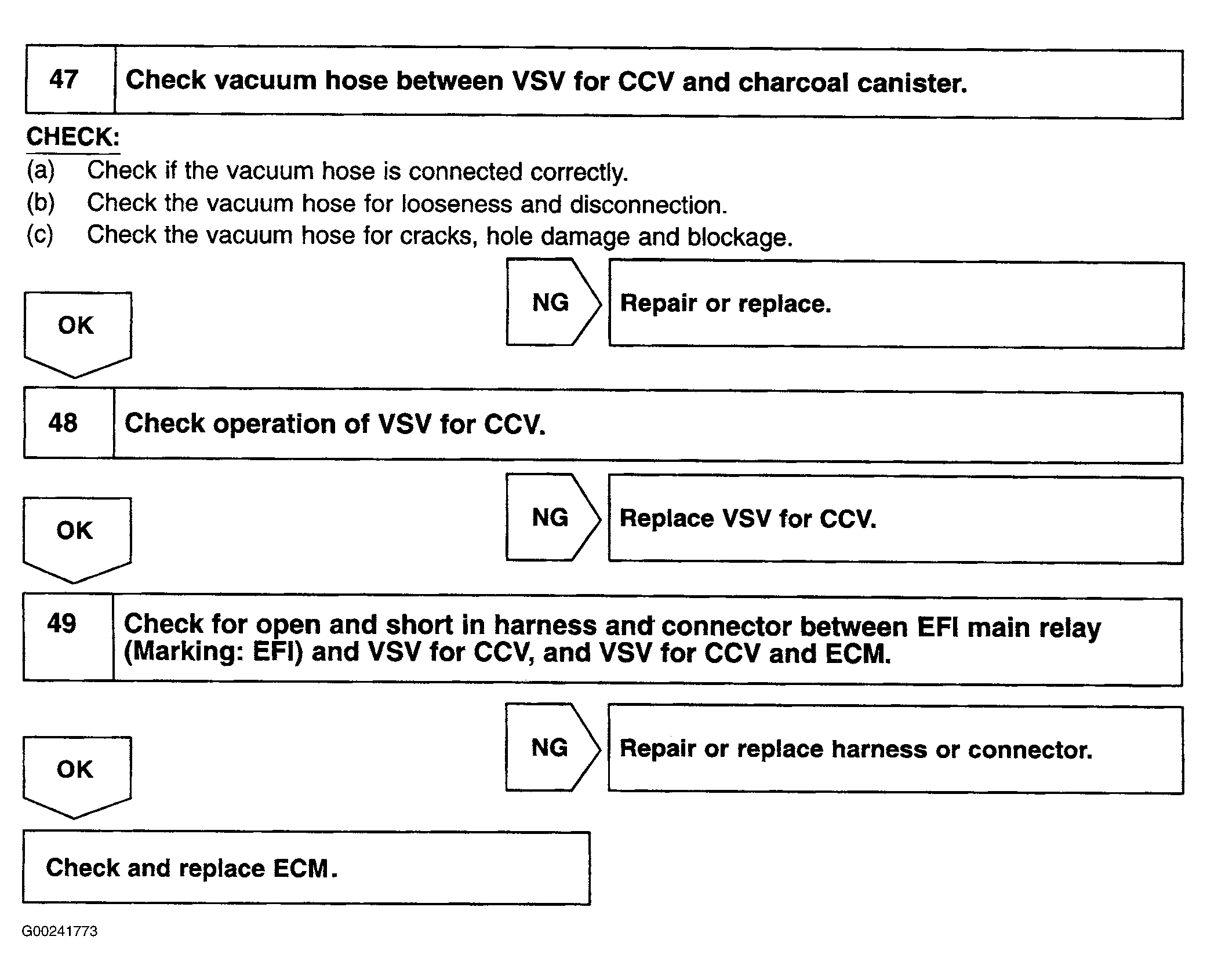

Fig 18: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 47-49)

G00241773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

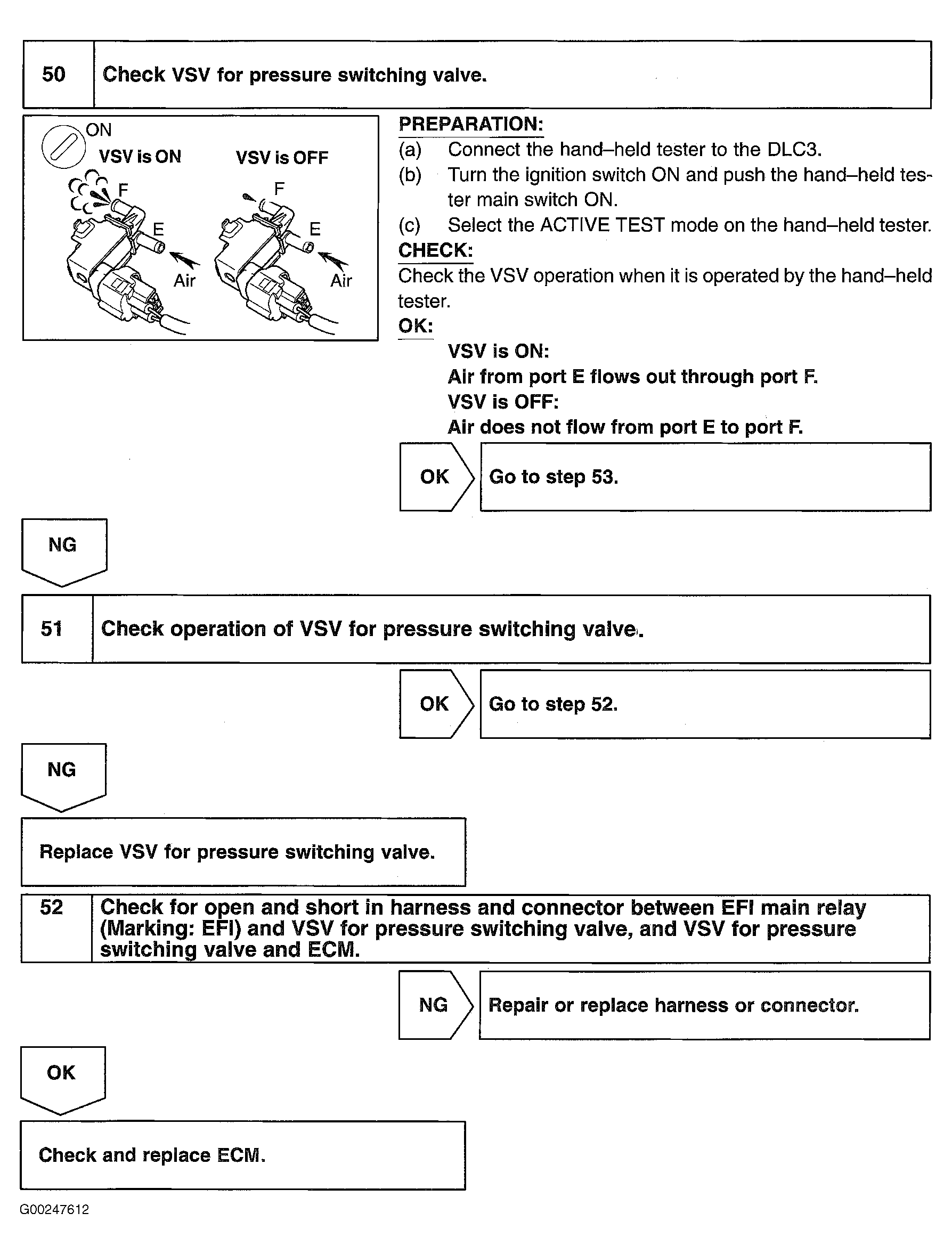

Fig 19: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 50-52)

G00247612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

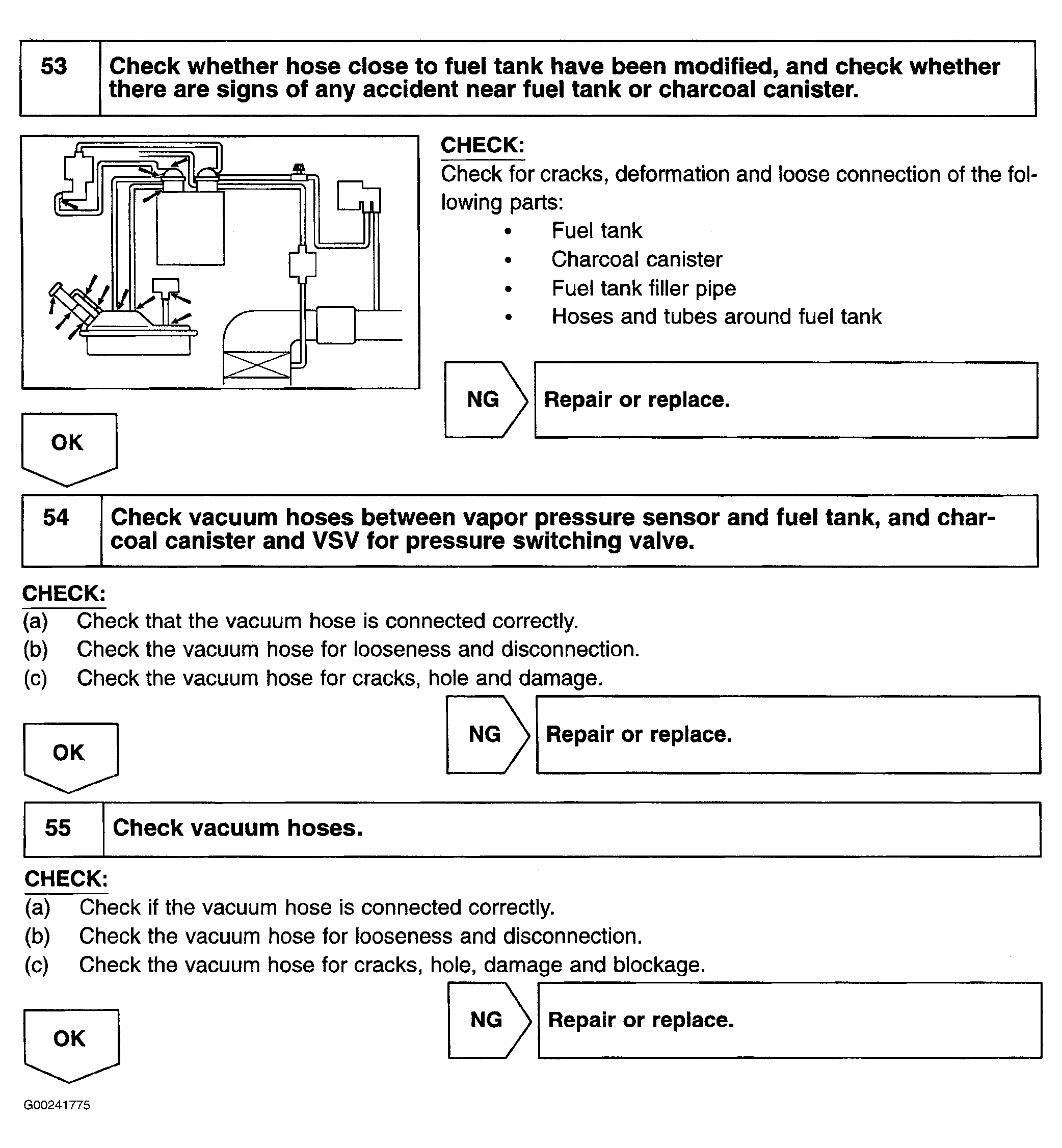

Fig 20: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 53-55)

G00241775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

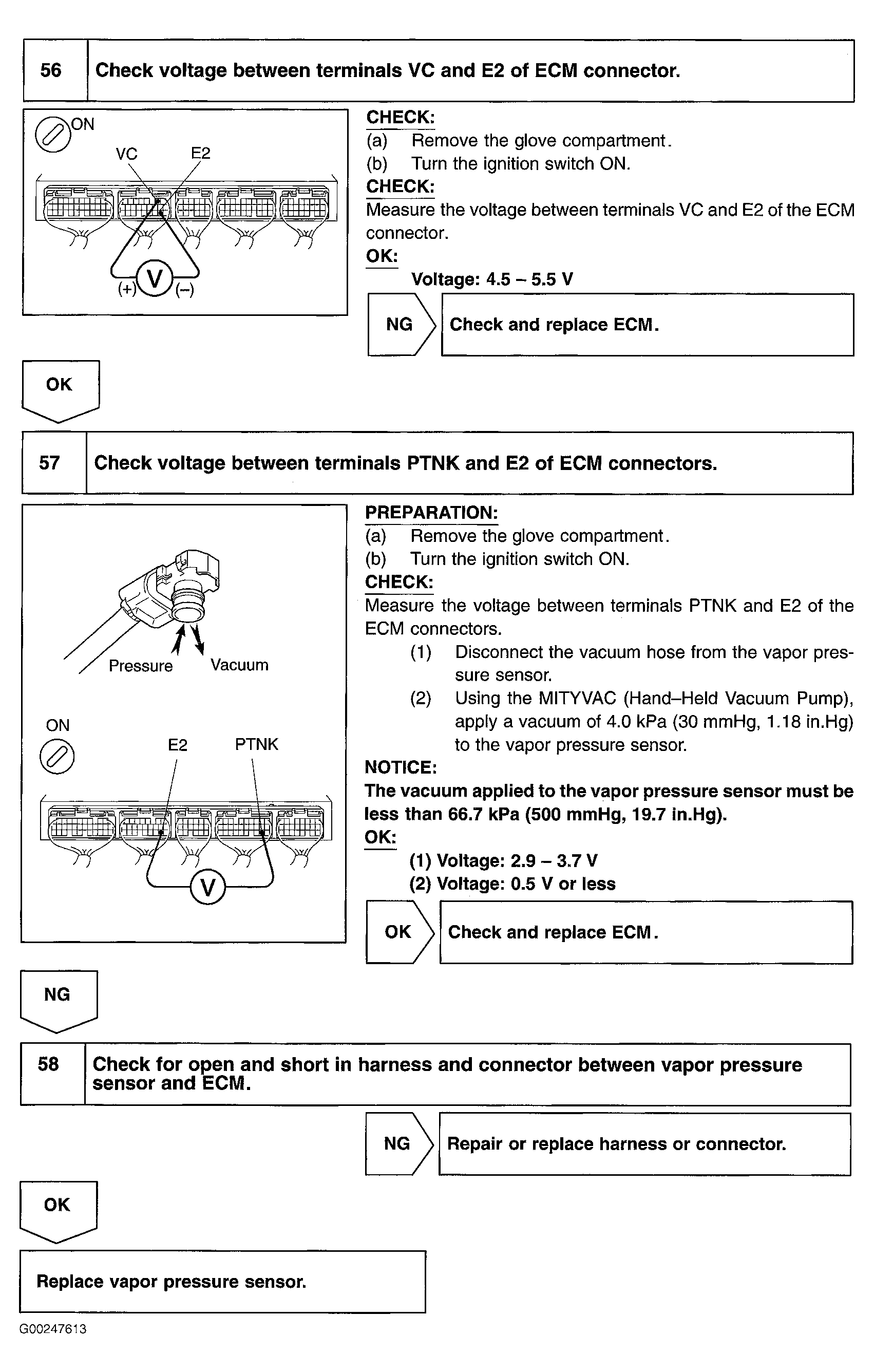

Fig 21: DTCs P0441 & P0446 Diagnostic Procedure Using Hand-Held Tester (Steps 56-58)

G00247613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

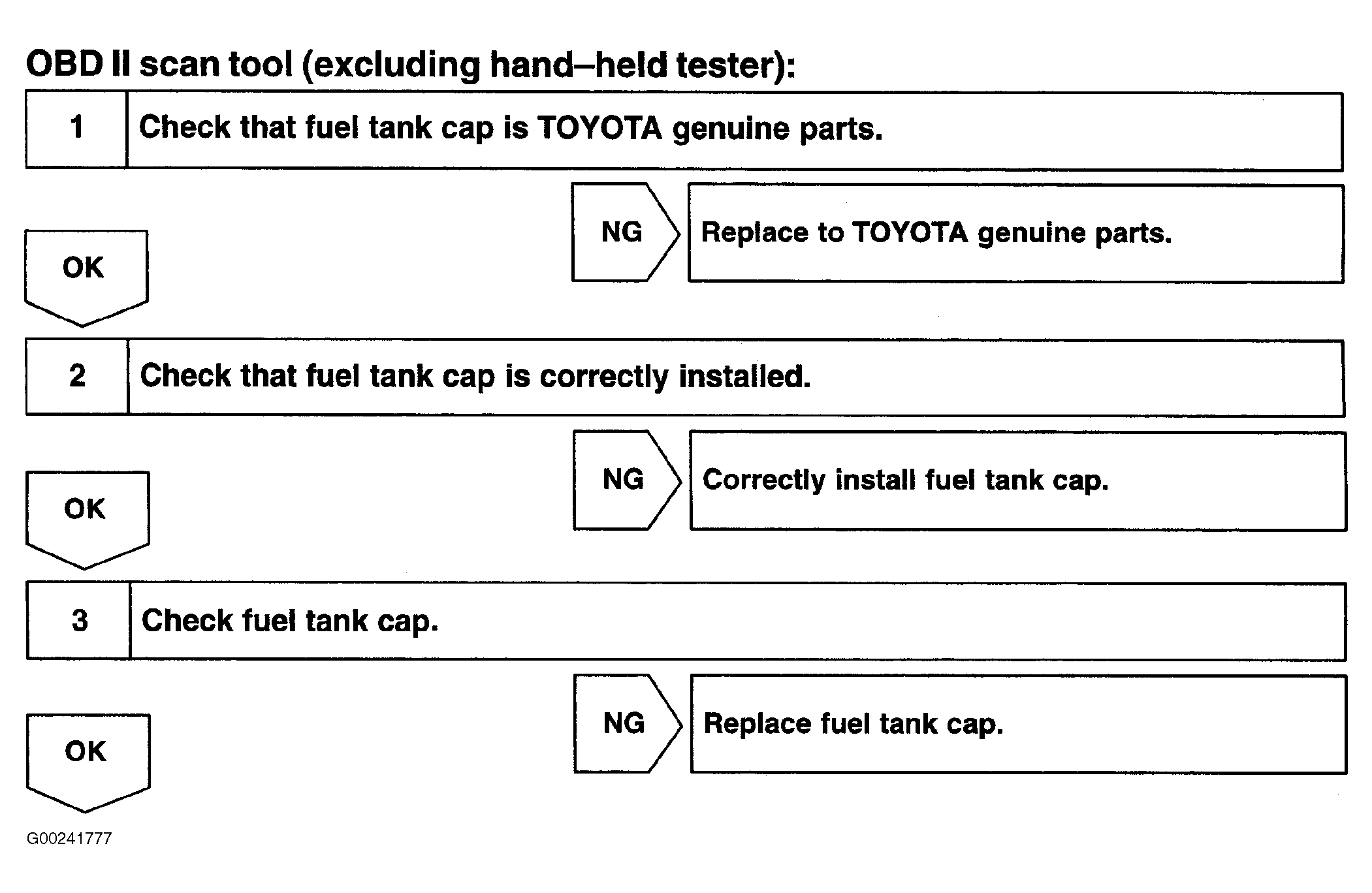

Fig 22: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 1-3)

G00241777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

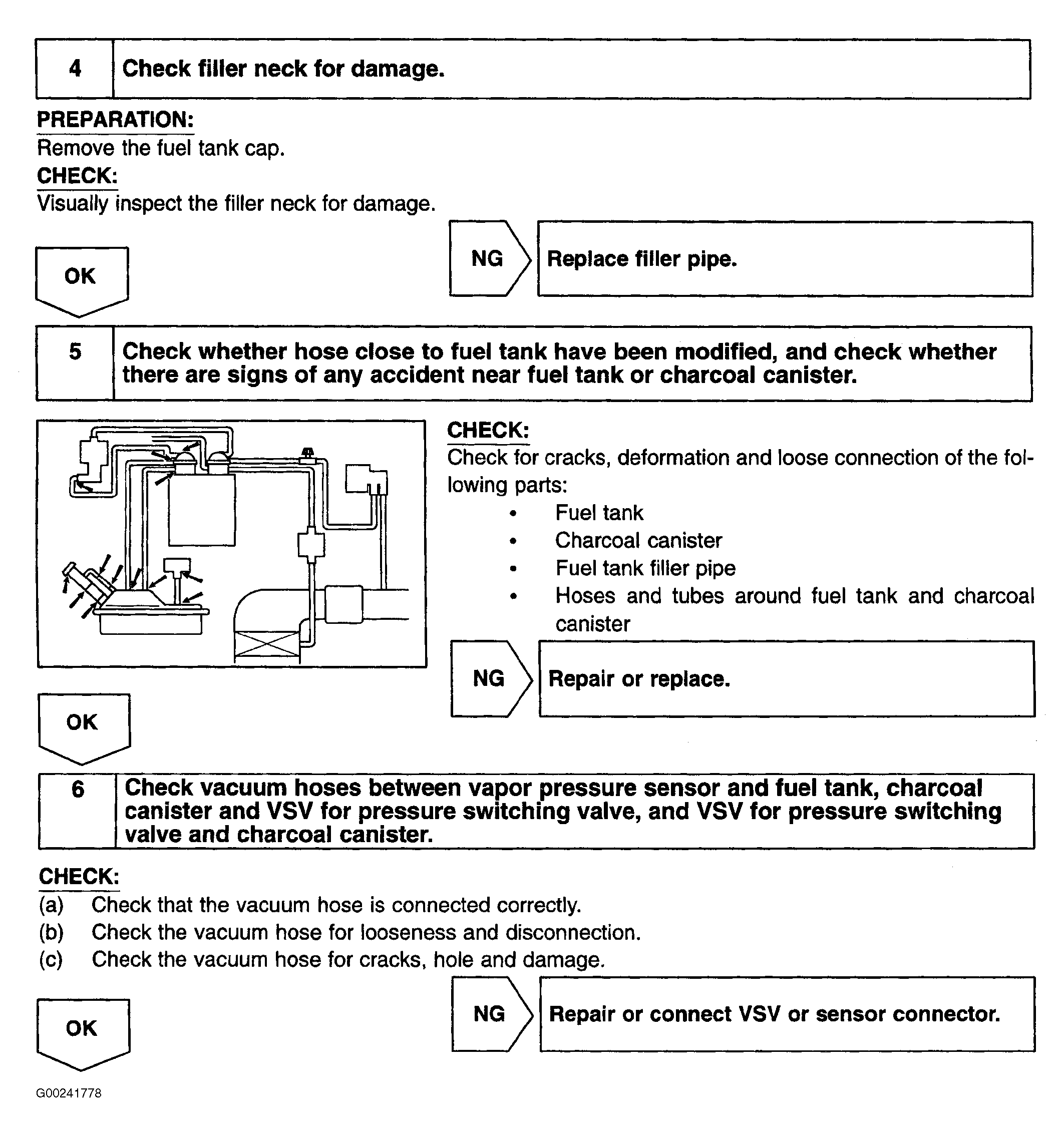

Fig 23: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 4-6)

G00241778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

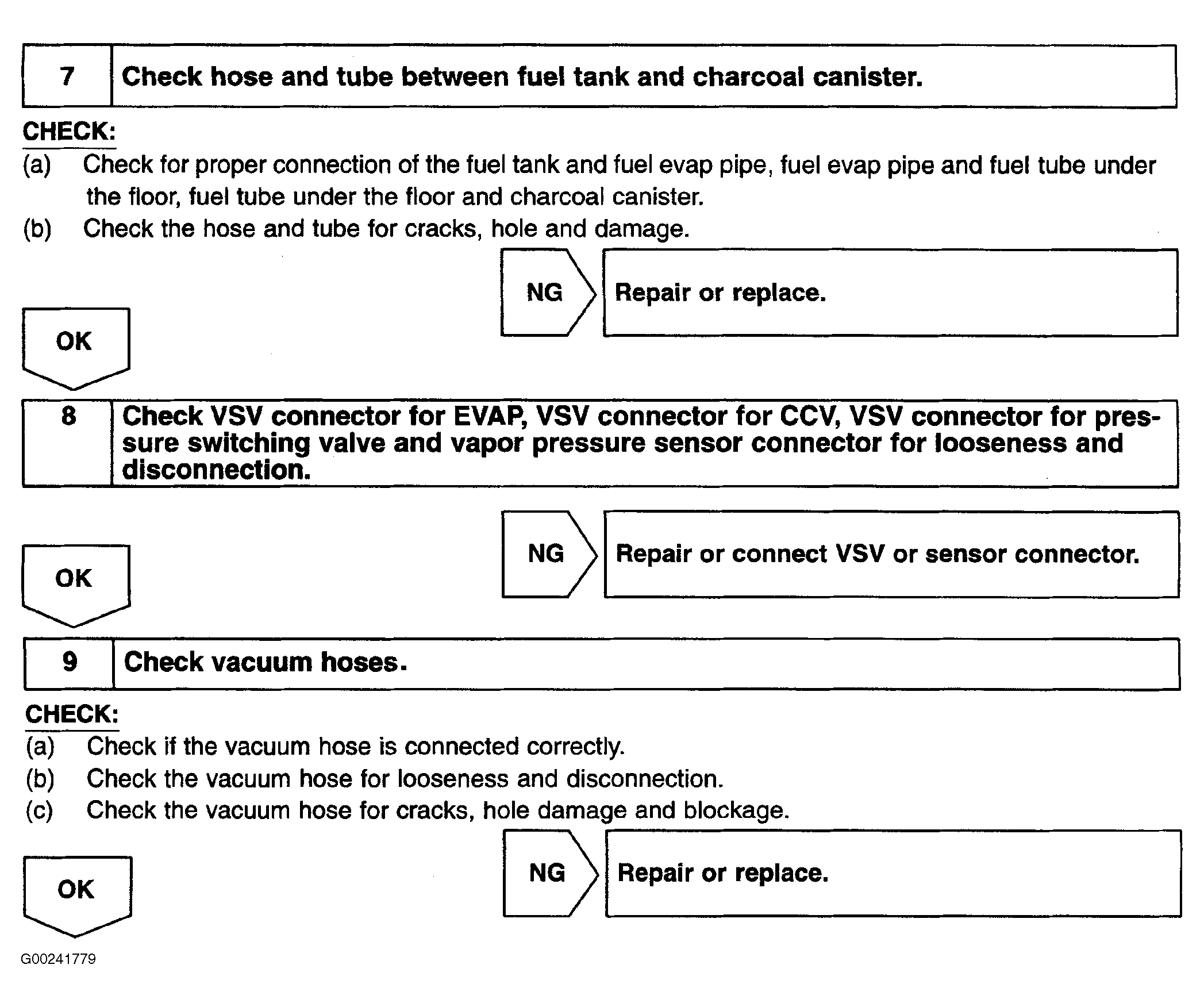

Fig 24: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 7-9)

G00241779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

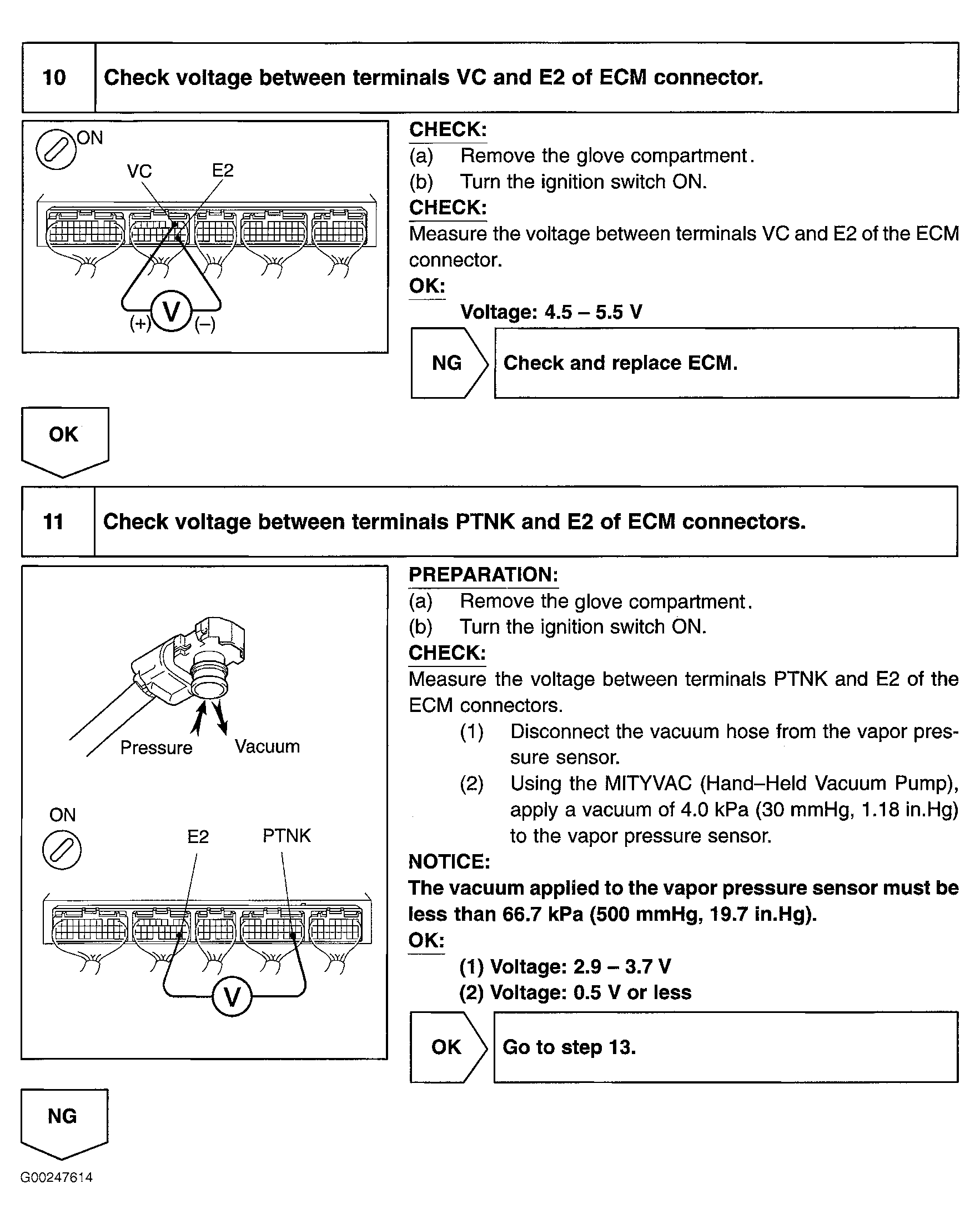

Fig 25: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 10-11)

G00247614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

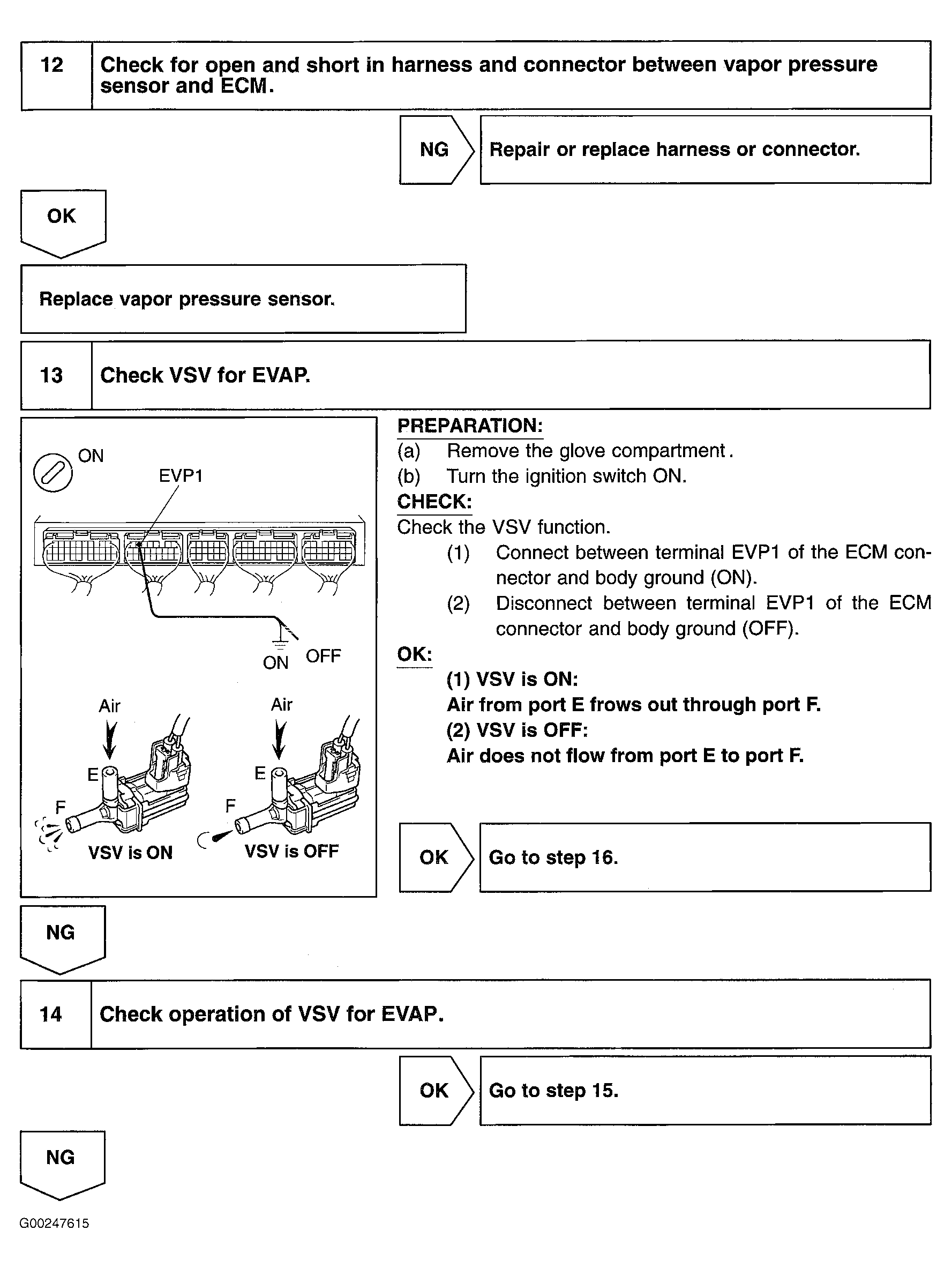

Fig 26: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 12-14)

G00247615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

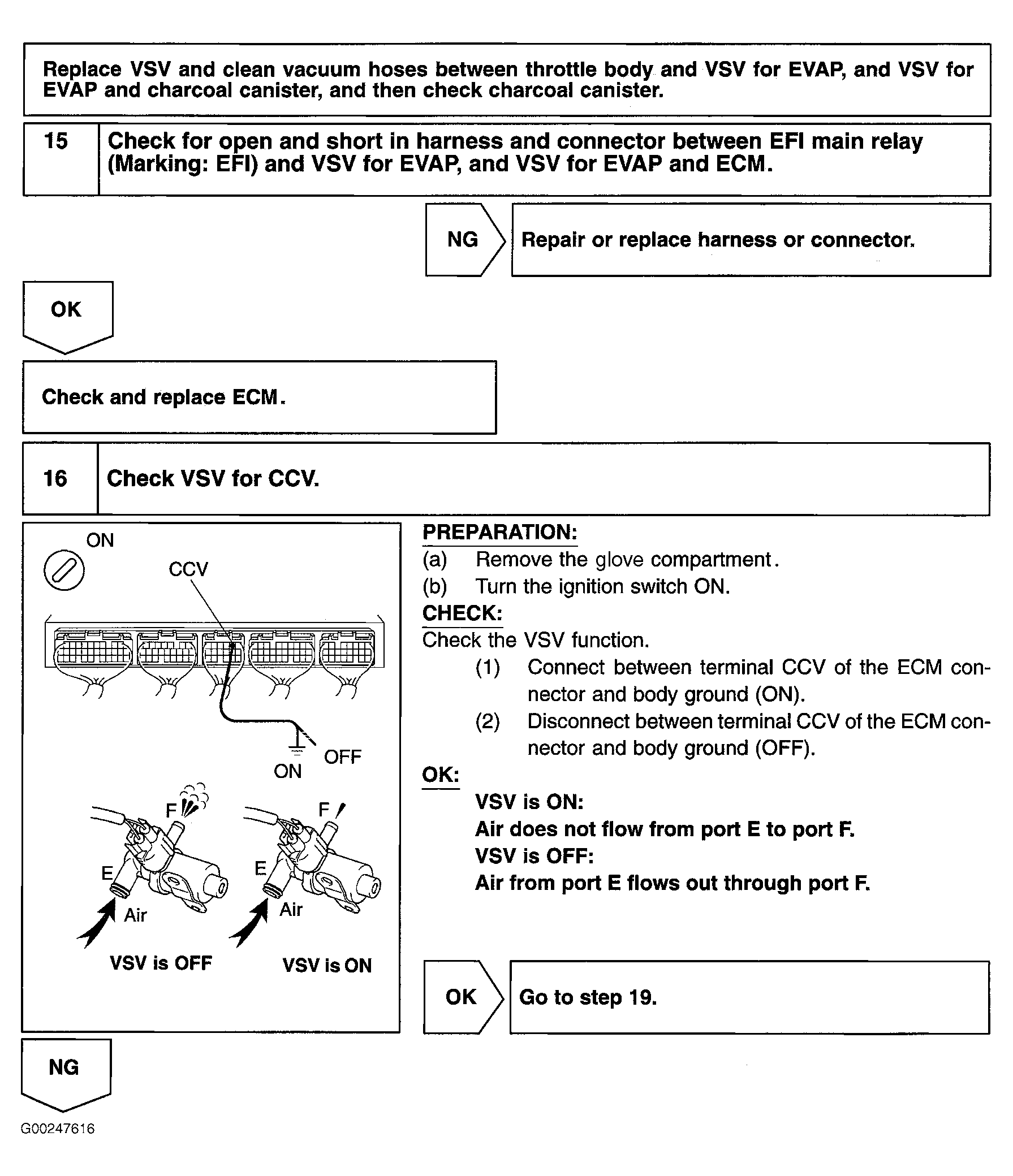

Fig 27: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Step 14 Cont. & Steps 15-16)

G00247616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

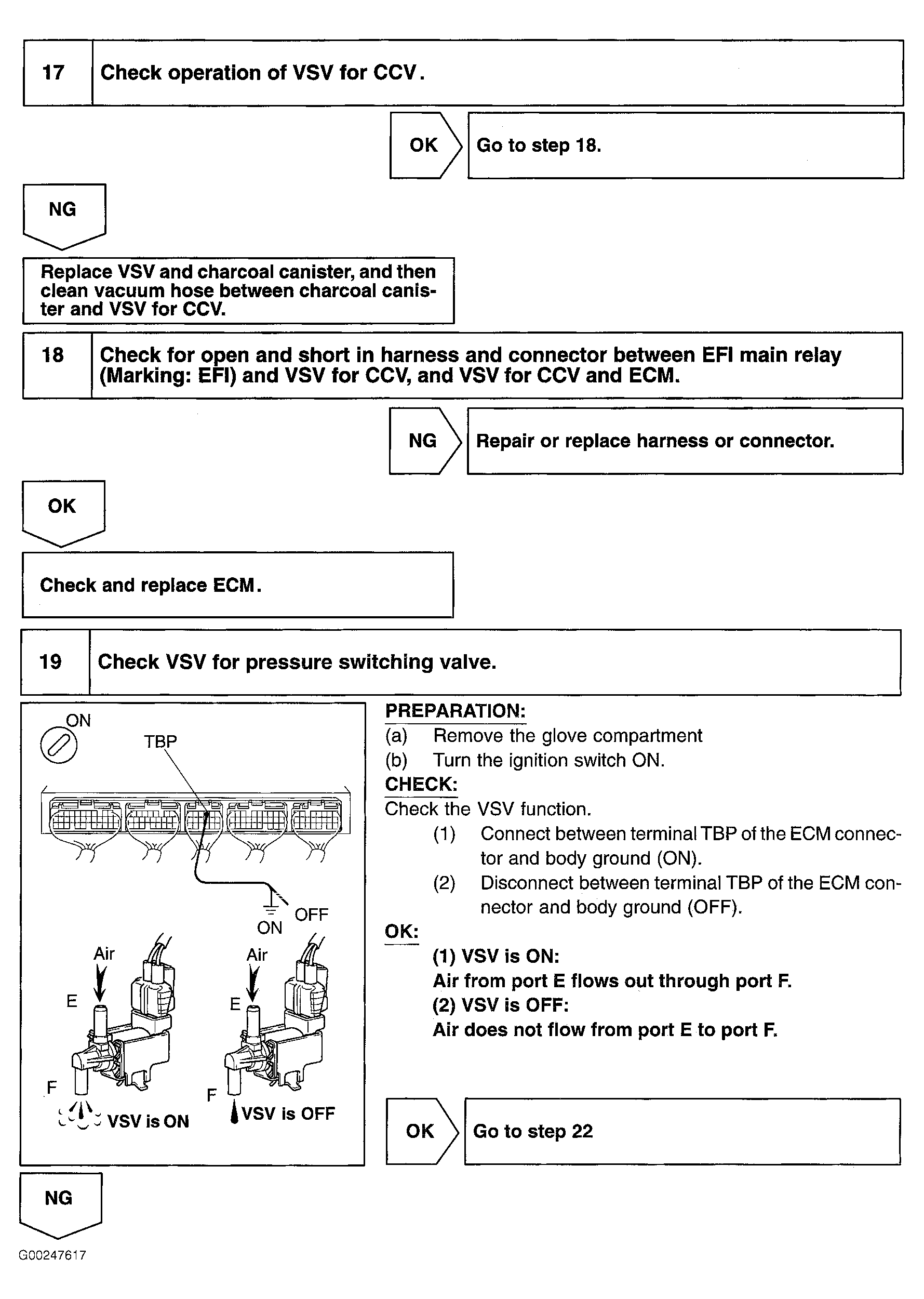

Fig 28: DTCs P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 17-19)

G00247617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

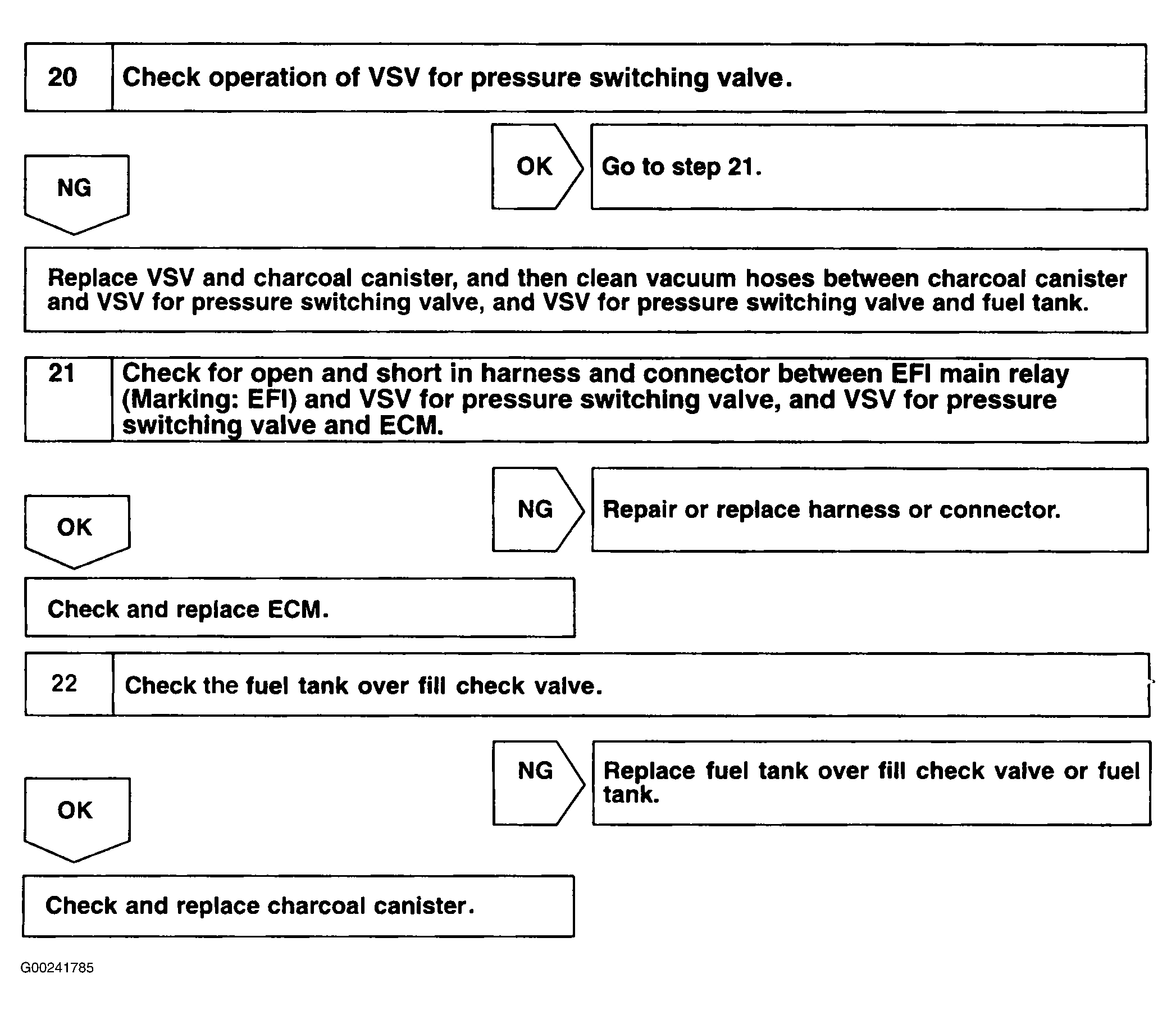

Fig 29: DTC P0441 & P0446 Diagnostic Procedure Using OBD II Scan Tool (Steps 20-22)

G00241785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
