Possible Causes

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

For DTC detection conditions & possible causes, see Fig 1.

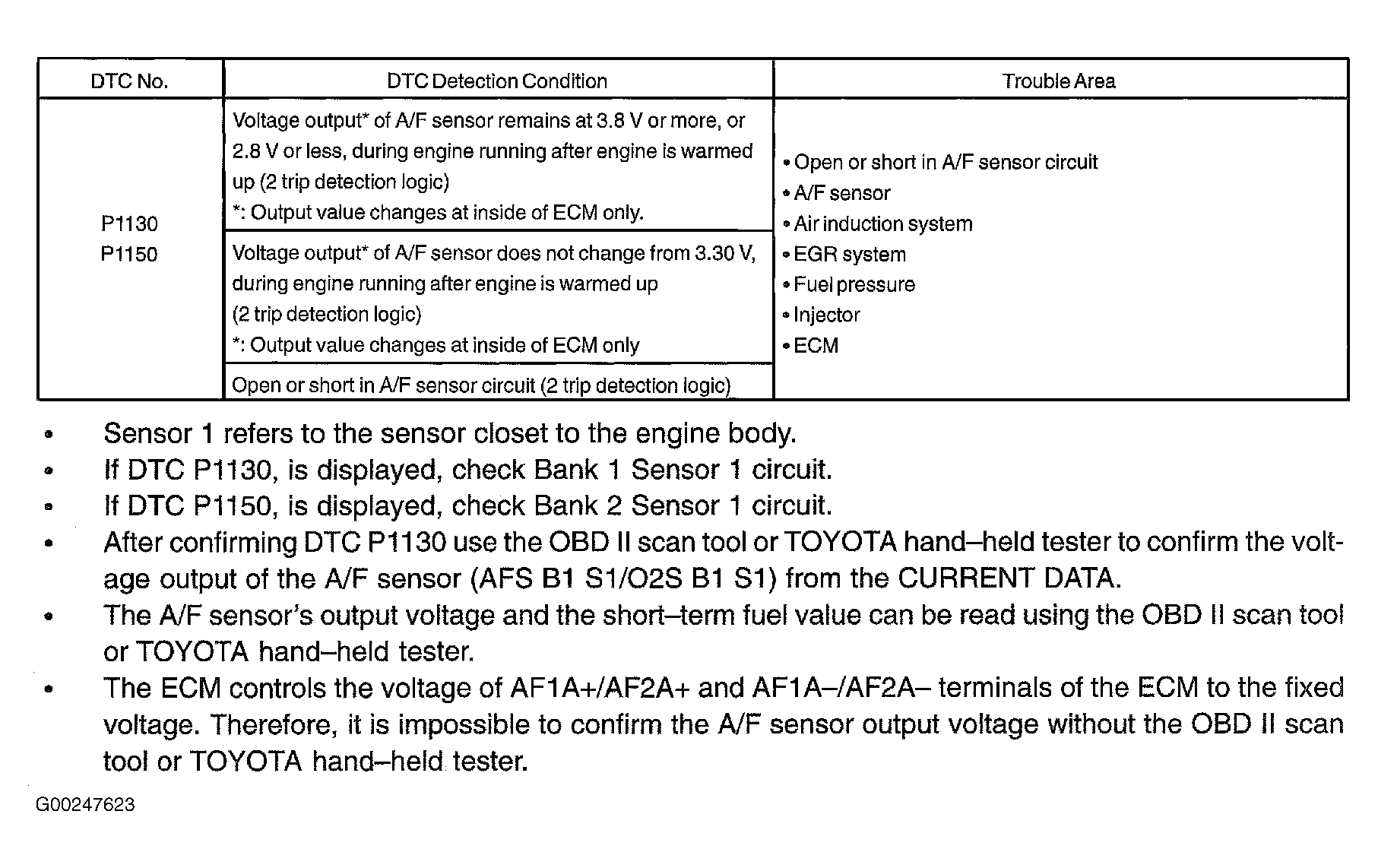

Fig 1: DTC Detection Conditions & Possible Causes
G00247623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
