Test Drive Confirmation

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

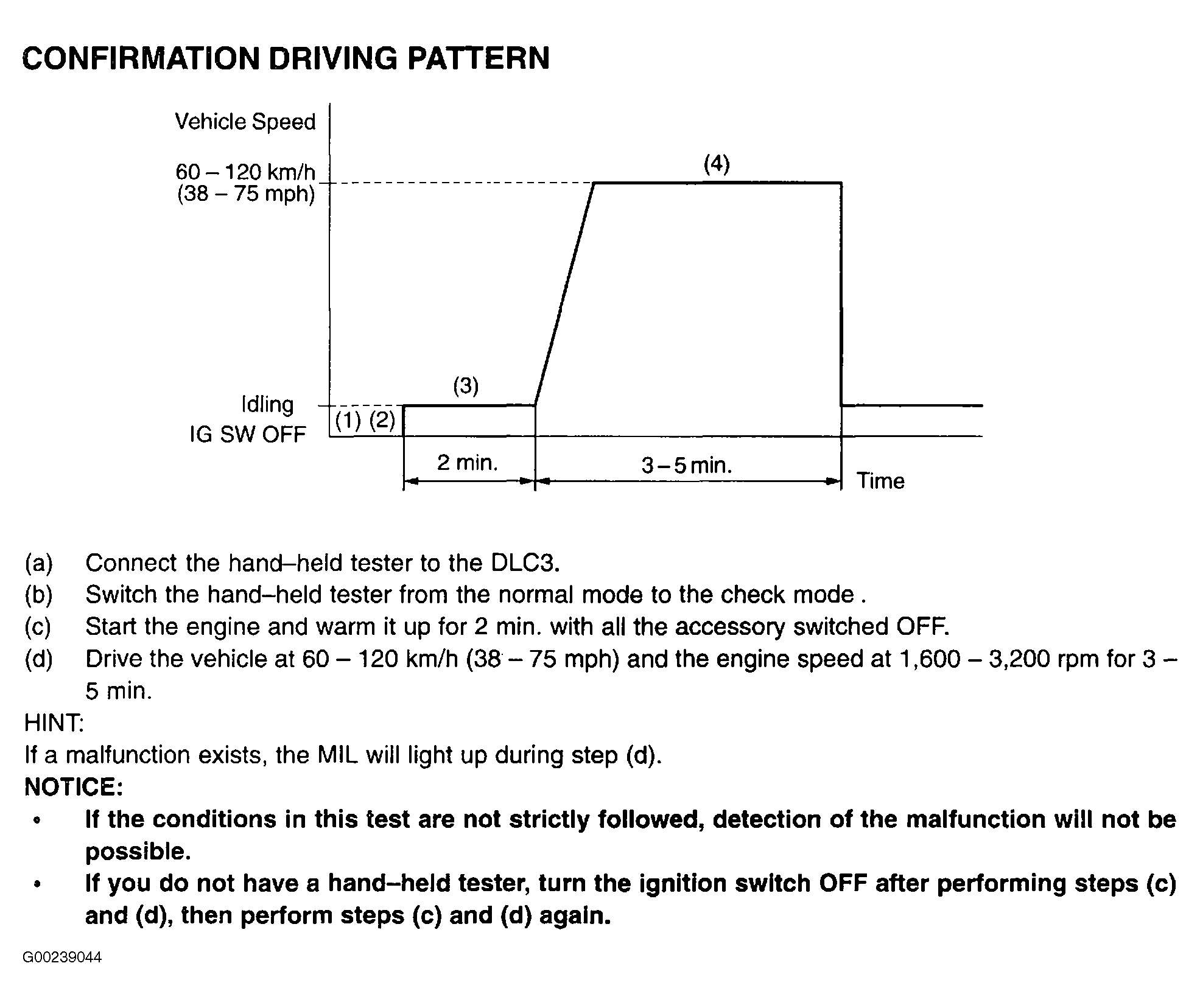

For test drive confirmation procedure, see Figure.
