Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

After confirming DTC P0120 use Toyota hand-held tester or scan tool to confirm throttle valve opening percentage with throttle fully closed and fully open to determine probable cause. If percentage displayed is always zero percent, VC circuit may be open or VTA circuit may be open or shorted. If percentage displayed is always approximately 100 percent, E2 circuit may be open.

For TP sensor circuit wiring diagram, diagnosis and repair procedure, see Fig 1-Fig 3 .

When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure.

For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For adjustments, see ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

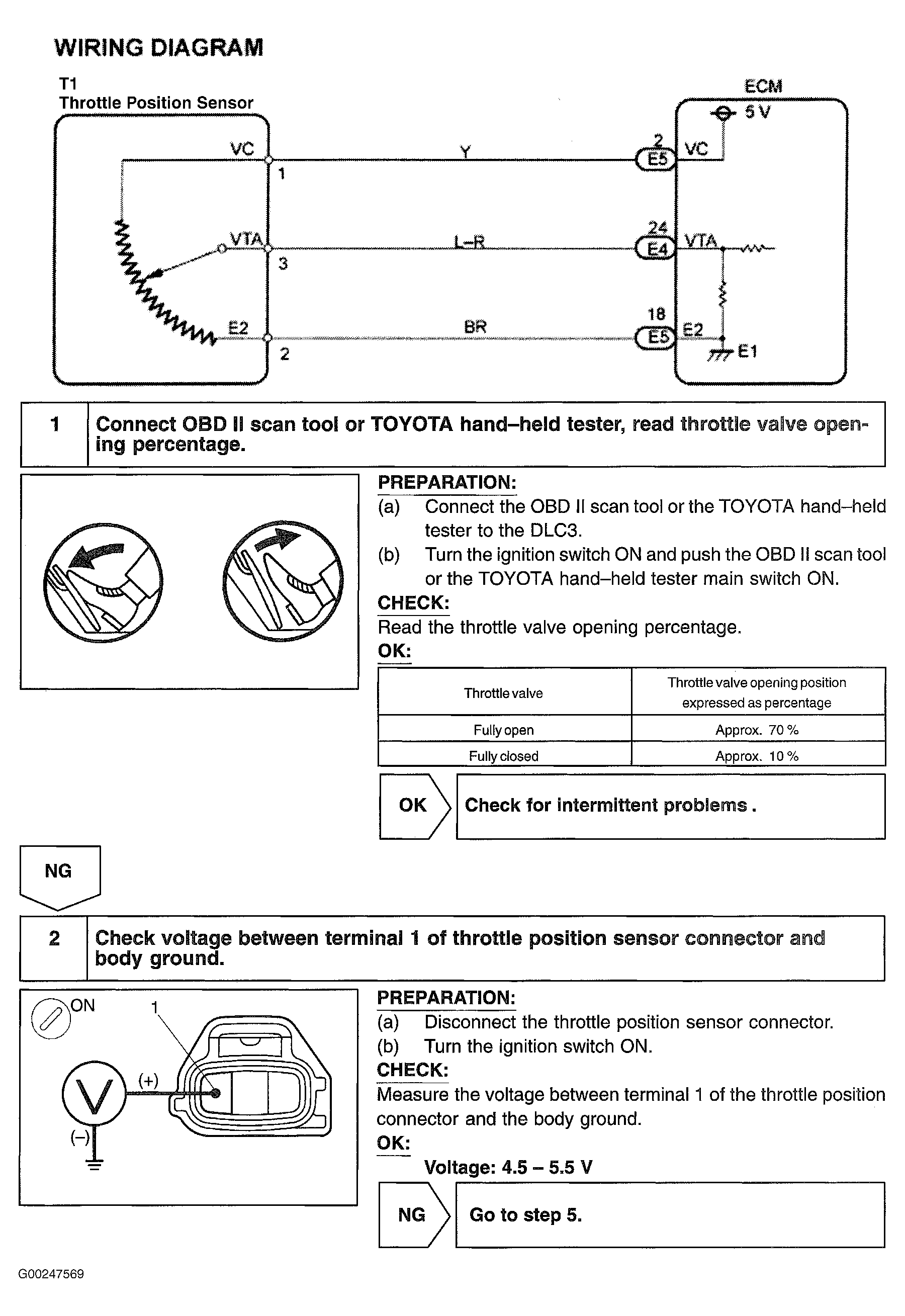

Fig 1: DTC P0120 Diagnostic Procedure (Steps 1-2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

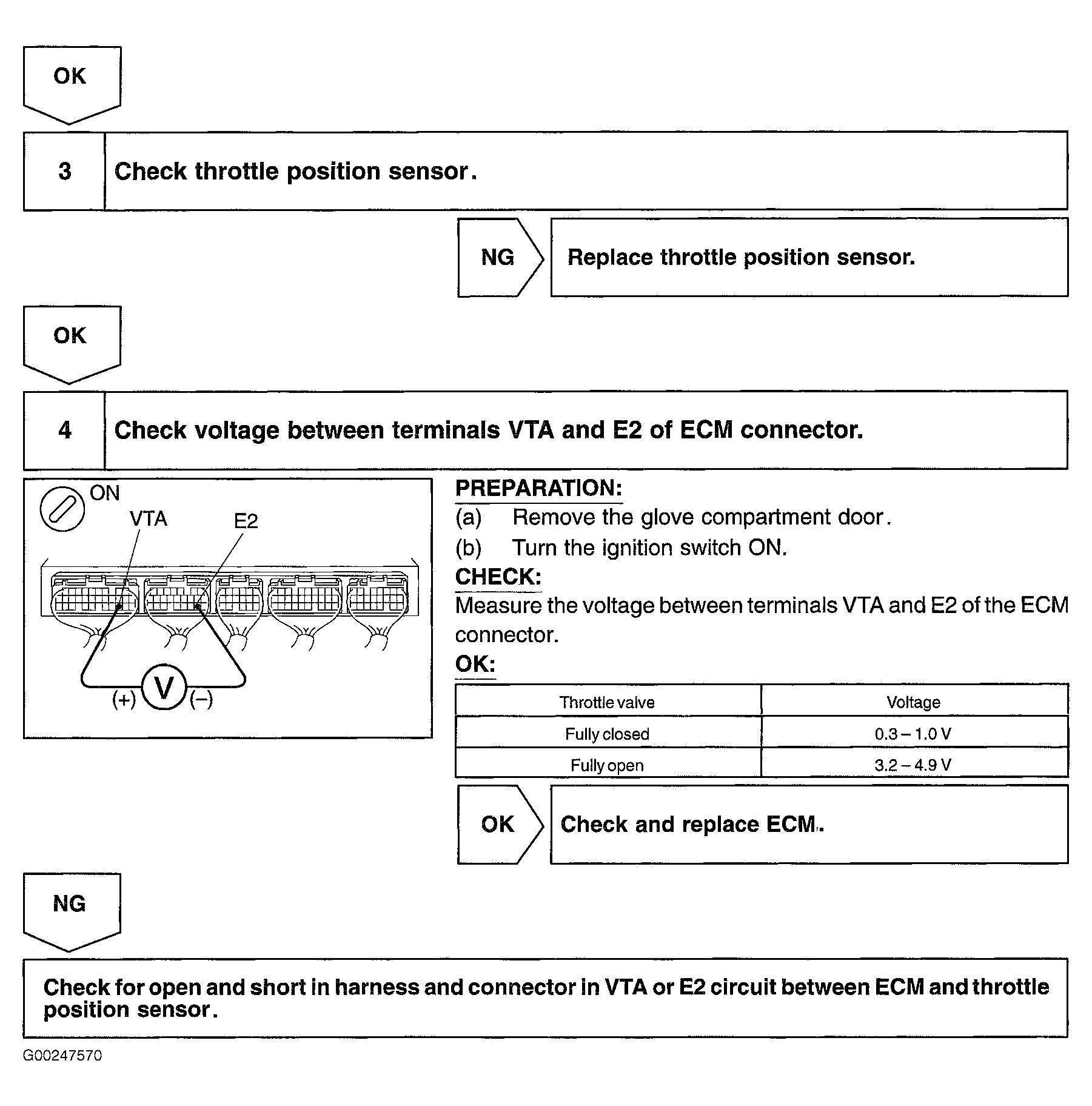

Fig 2: DTC P0120 Diagnostic Procedure (Steps 3-4)

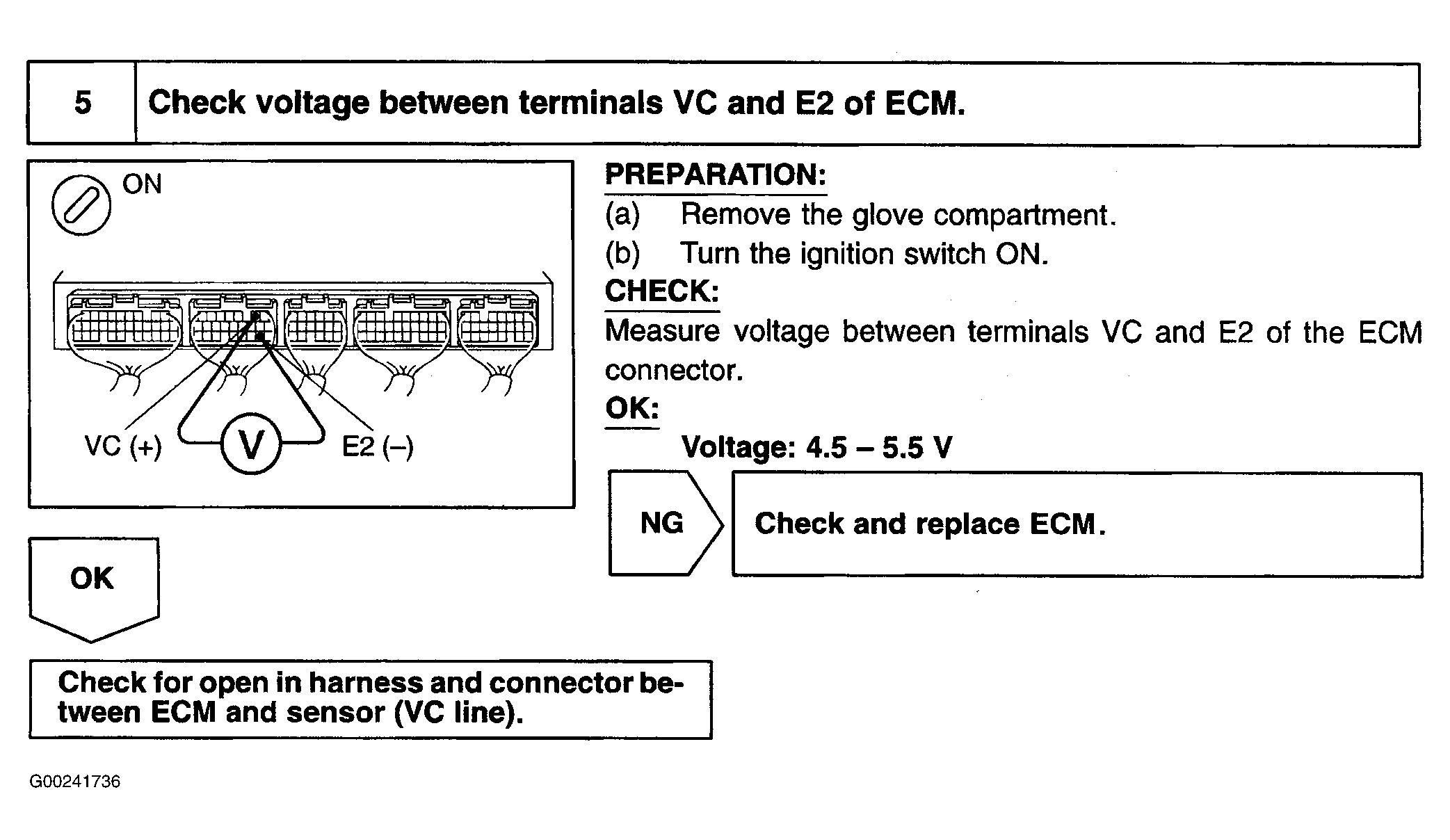

Fig 3: DTC P0120 Diagnostic Procedure (Step 5)
