Section 584 (Sliding Roof): Removal

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ROOF HEADLINING (See REMOVAL )
REMOVE SLIDING ROOF GLASS ASSEMBLY
1. Using a torx wrench, remove the 4 screws.
2. Pull the glass upward to remove it.
REMOVE DRIVE GEAR

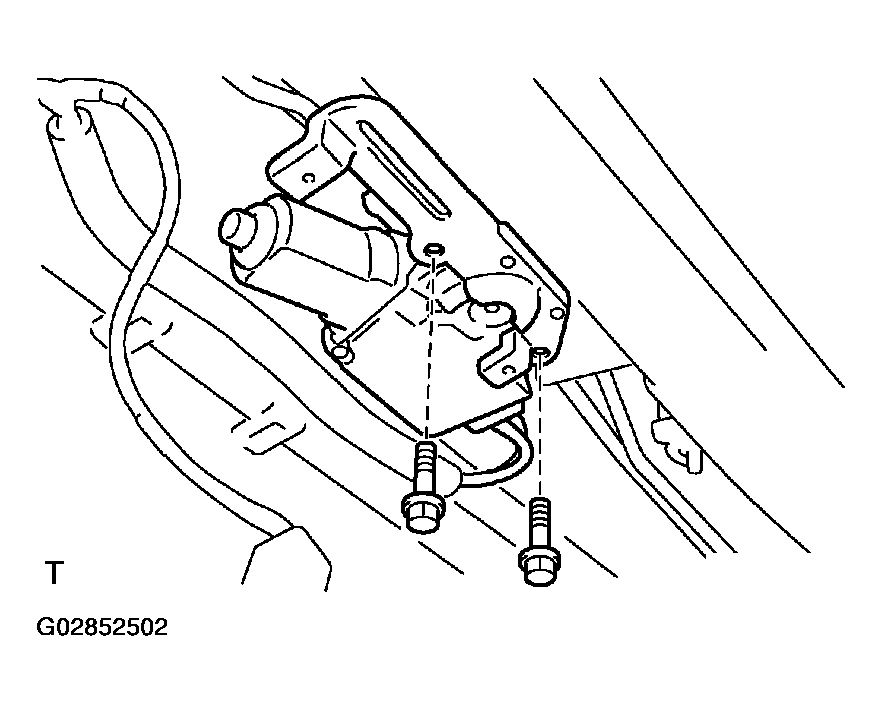

Fig 1: Removing Drive Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Remove the drive gear with the sliding roof fully closed.
1. Disconnect the connector.
2. Remove the 2 bolts and drive gear.
3. Remove the 2 screws and drive gear bracket.
REMOVE SLIDING ROOF HOUSING

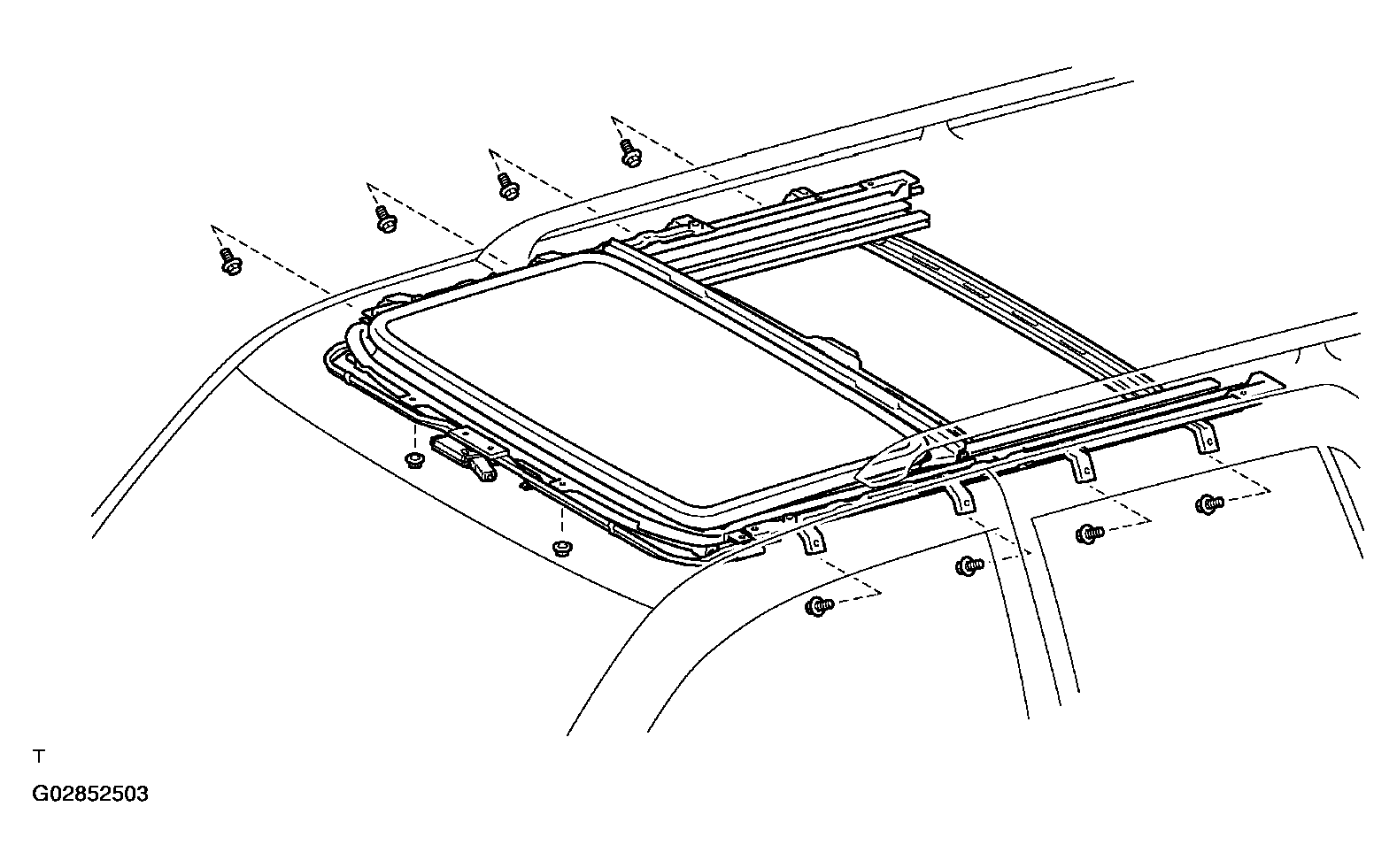

Fig 2: Removing Sliding Roof Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 4 drain hoses from the housing.
2. Disengage the wire harness clamps.
3. Remove the 8 bolts, 2 nuts and sliding roof housing.
  Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
