Front Suspension: Components

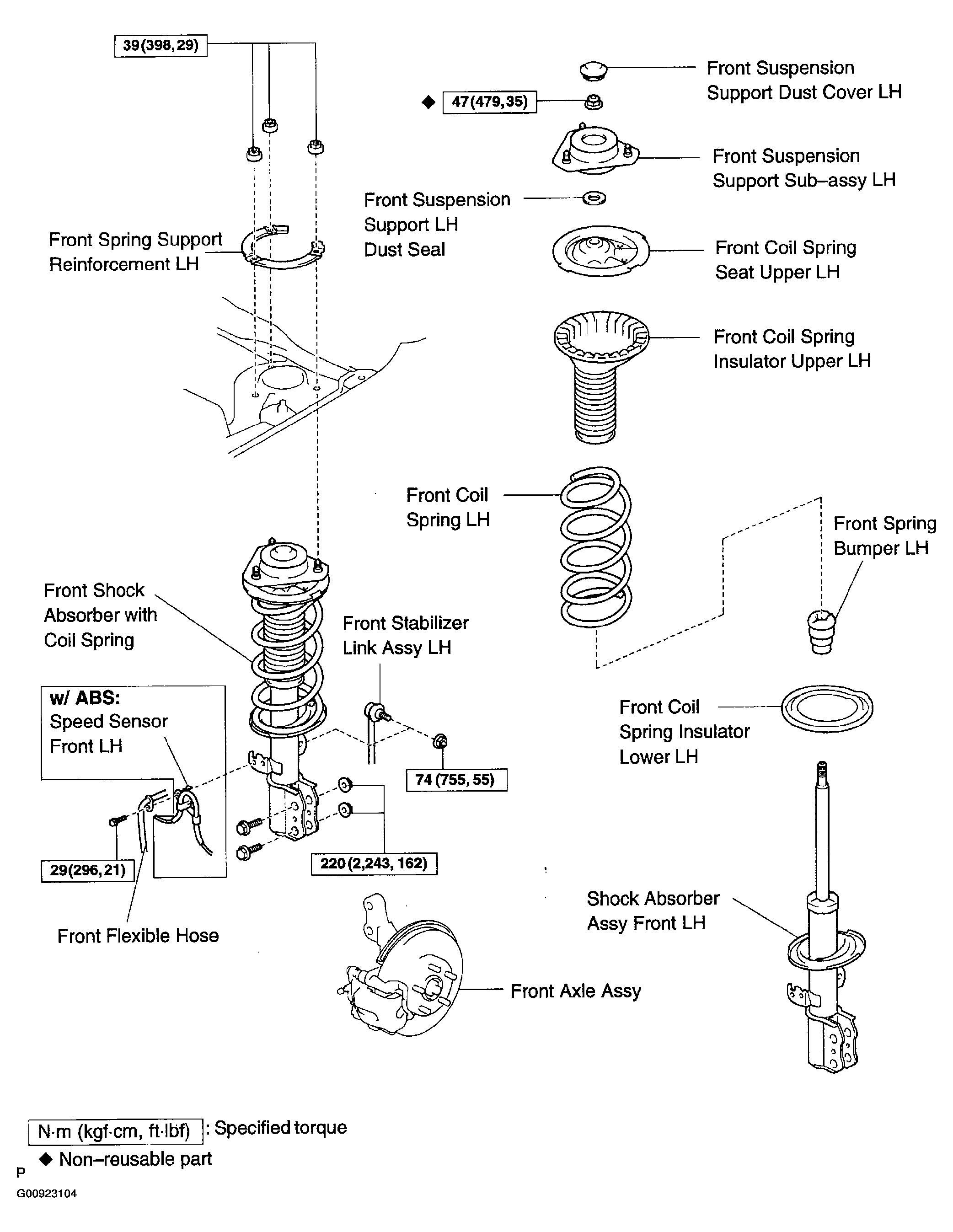

Fig 1: Front Suspension Components (1 Of 3)
G00923104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

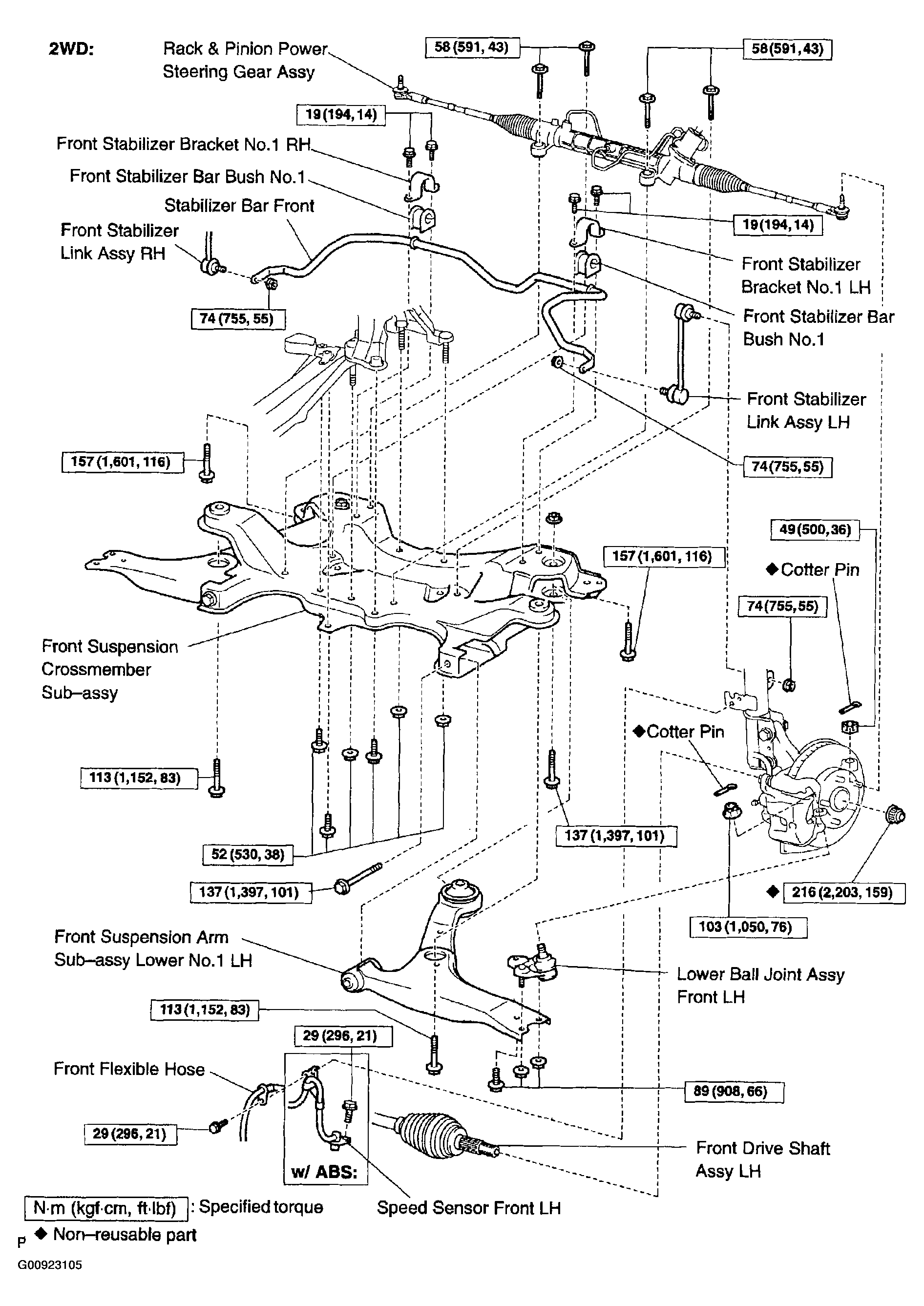

Fig 2: Front Suspension Components - 2WD (2 Of 3)
G00923105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

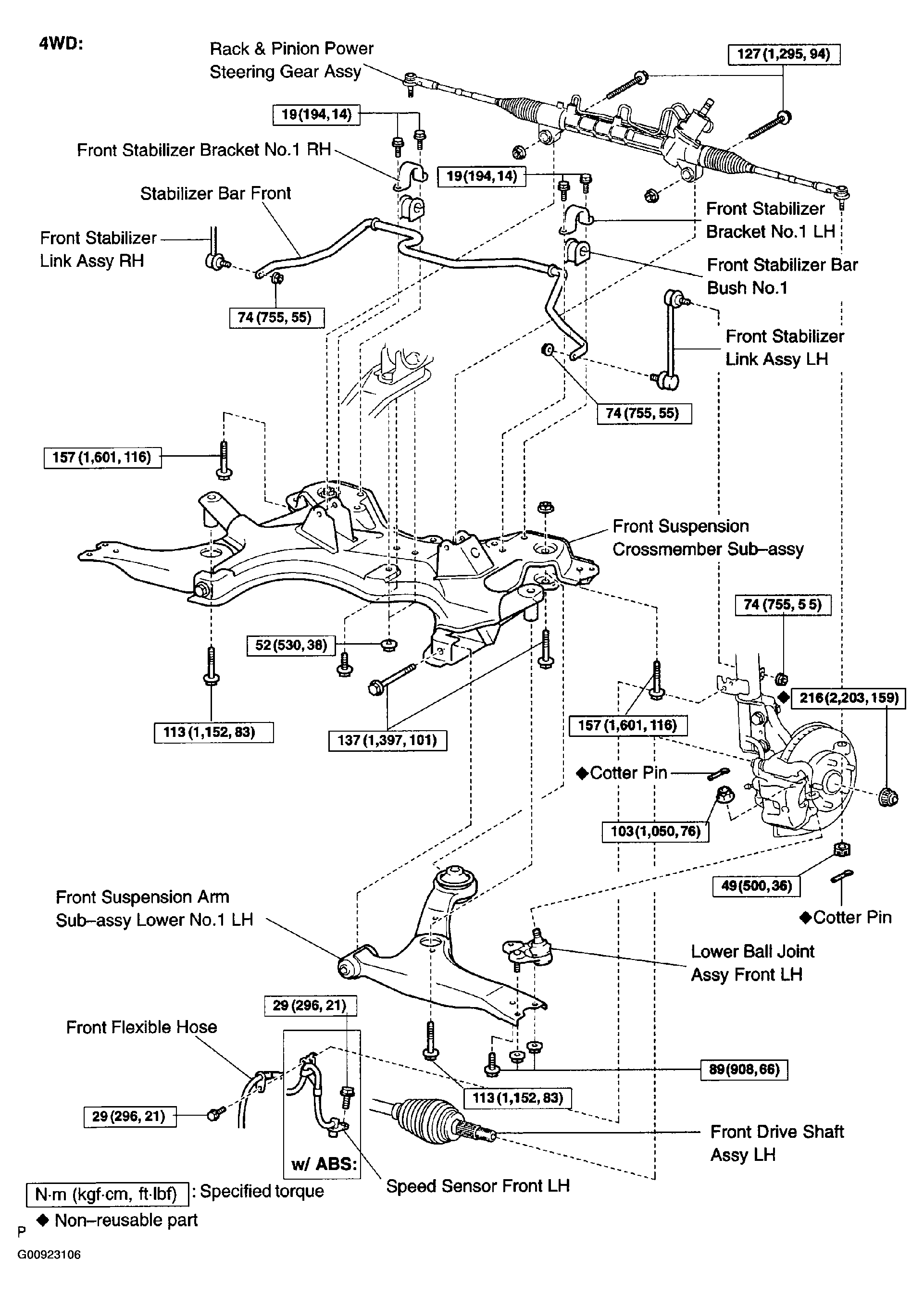

Fig 3: Front Suspension Components - 4WD (3 Of 3)
G00923106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
