Steering Angle Sensor Communication Stop Mode: Wiring Diagram

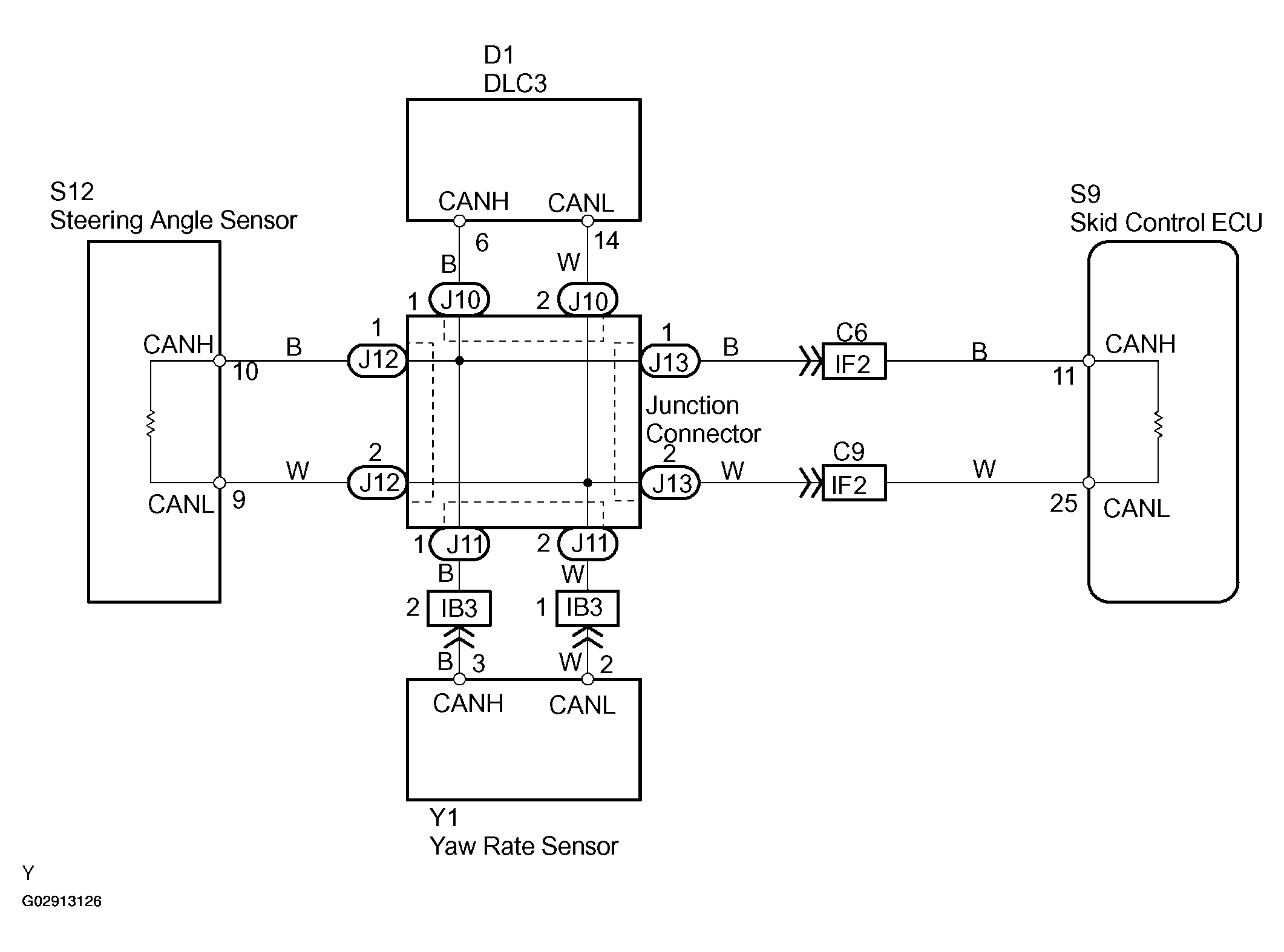

Fig 1: Wiring Diagram - Steering Angle Sensor Communication Stop Mode
G02913126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
