Roof Headlining: Components

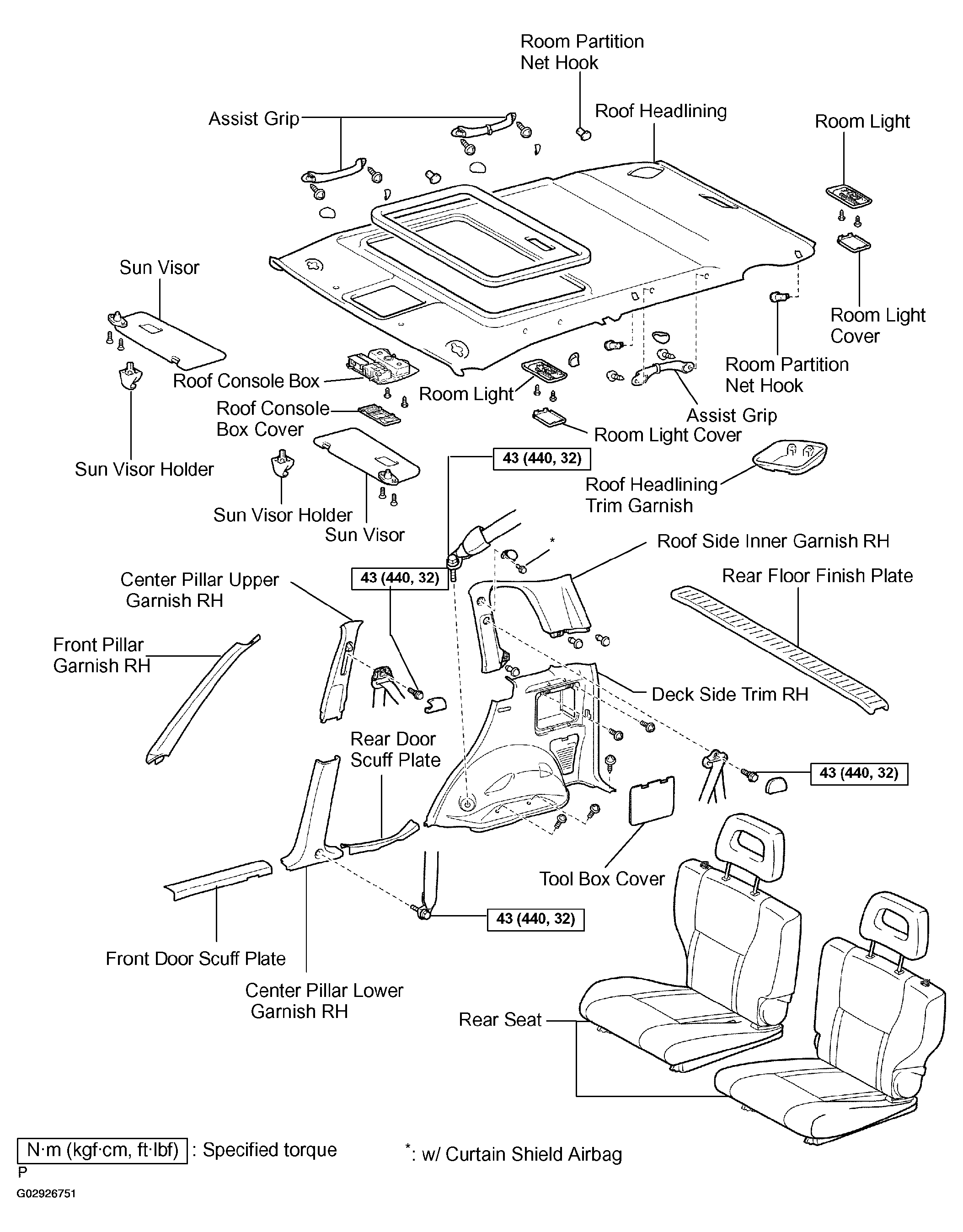

Fig 1: Identifying Roof Headlining Components
G02926751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
