DTC B1900/73: Short in P/T Squib (LH) Circuit, DTC B1901/73 Open in P/T Squib (LH) Circuit, DTC B1902/73 Short in P/T Squib (LH) Circuit (to Ground), DTC B1903/73 Short in P/T Squib (LH) Circuit (to B+): Wiring Diagram

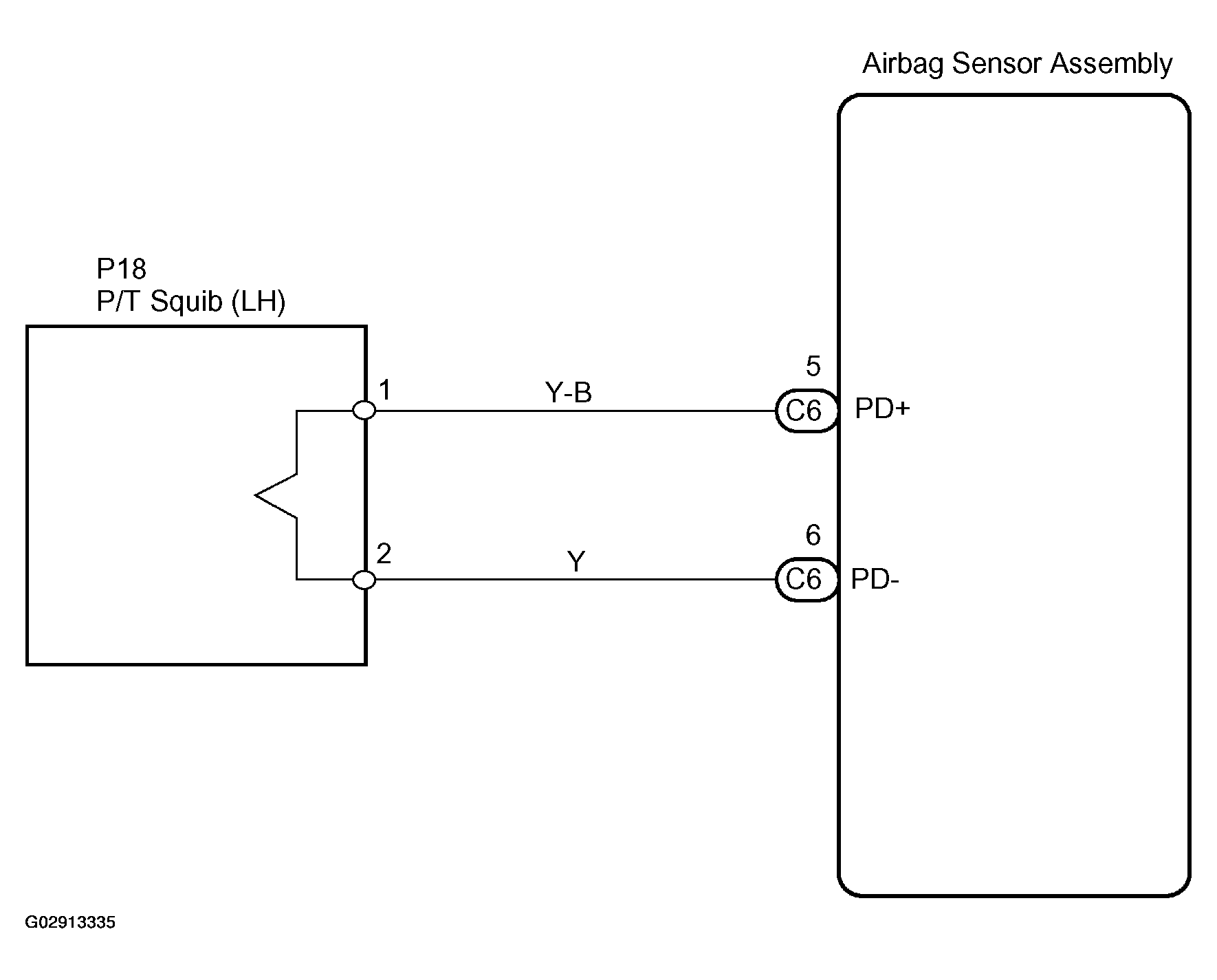

Fig 1: Wiring Diagram - P/T Squib (LH) Circuit
