Inspection Procedure

NOTE: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, as well as other data from the time when a malfunction occurred.
  1. Visually check throttle valve.

    PREPARATION:

    Remove the intake air connector.

    CHECK:

    Check whether or not a foreign body is caught between the throttle valve and housing. Also, check if the valve can open and close smoothly.

    1. NG: Remove foreign body and clean throttle body.
    2. OK: Go to next step.
  2. Check throttle control motor.

    PREPARATION:

    Disconnect the throttle control motor and sensor connector.

    CHECK:

    Measure the resistance between terminals of the throttle control motor.

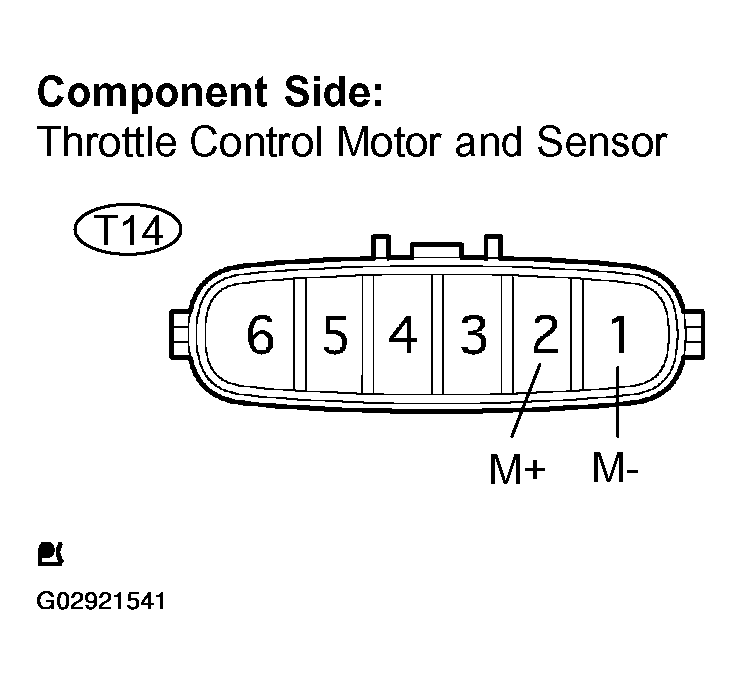

    Fig 1: Measuring Resistance Between Terminals
    G02921541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    M+ (T14-2) - M- (T14-1) 0.3 to 100 Ω (20°C (68°F))
    1. NG: Replace throttle body (See  THROTTLE BODY  ).
    2. OK: Go to next step.
  3. Check for open and short in harness and connector between ECM and throttle control motor.

    PREPARATION:

    1. Disconnect the T14 throttle control motor and sensor connector.
    2. Disconnect the E6 ECM connector.

    CHECK:

    Measure the resistance between the wire harness side connectors.

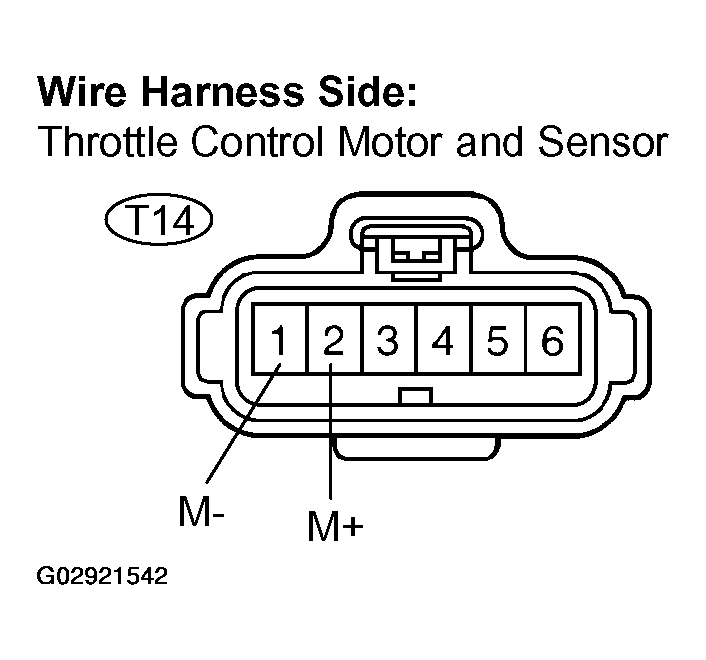

    Fig 2: Measuring Resistance Between Wire Harness Side Connectors (1 Of 2)
    G02921542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

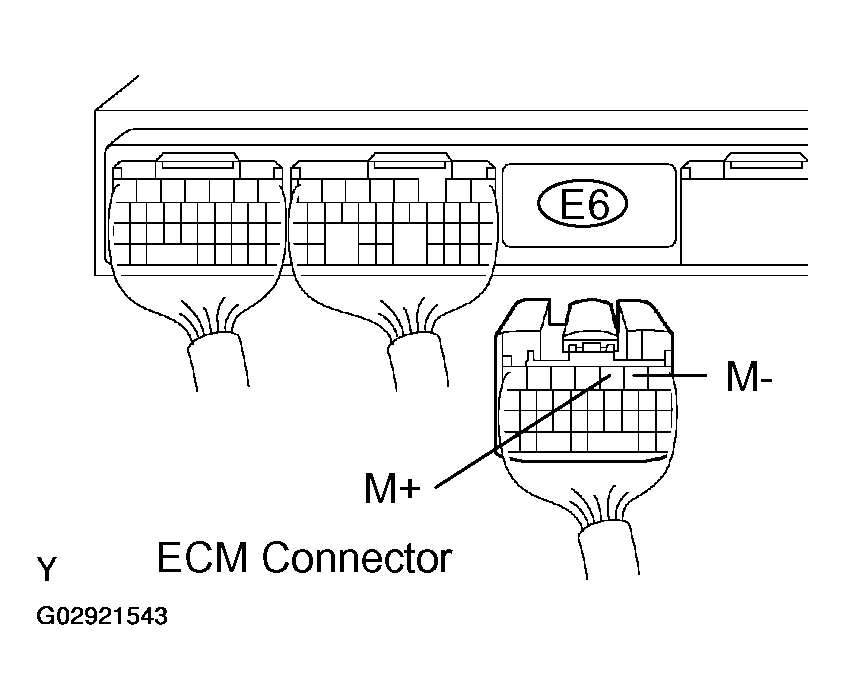

    Fig 3: Measuring Resistance Between Wire Harness Side Connectors (2 Of 2)
    G02921543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    M+ (T14-2) - M+ (E6-3) Below 1 Ω
    M- (T14-1) - M- (E6-2) Below 1 Ω
    M+ (T14-2) or M+ (E6-3) - Body ground 10 kΩ or higher
    M- (T14-1) or M- (E6-2) - Body ground 10 kΩ or higher
    1. NG: Repair or replace harness or connector.
    2. OK: Check for intermittent problems (See  PRE-CHECK  )
