Seat Belt: Components

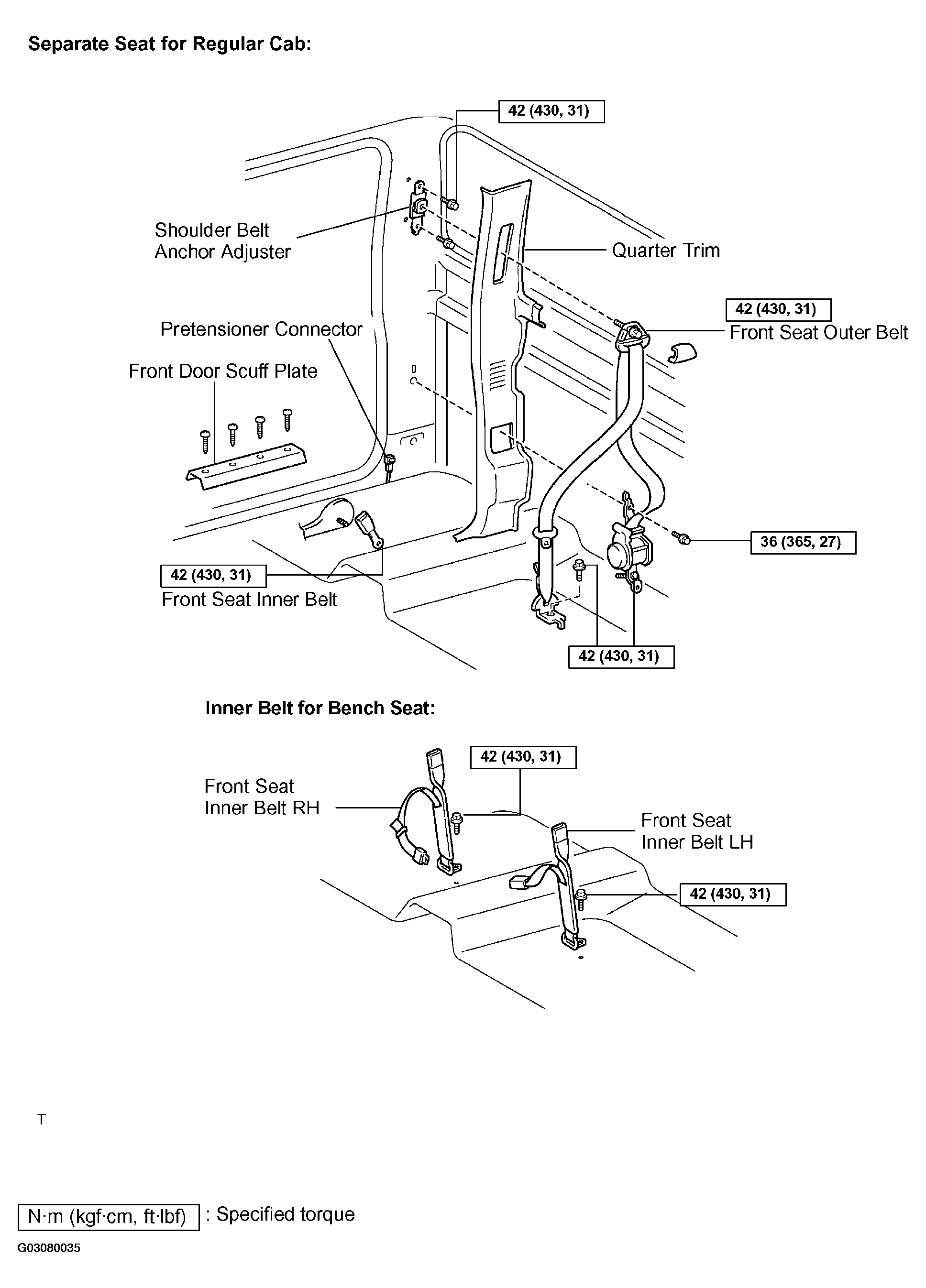

Fig 1: Locating Seat Belt Components (Regular Cab)
G03080035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

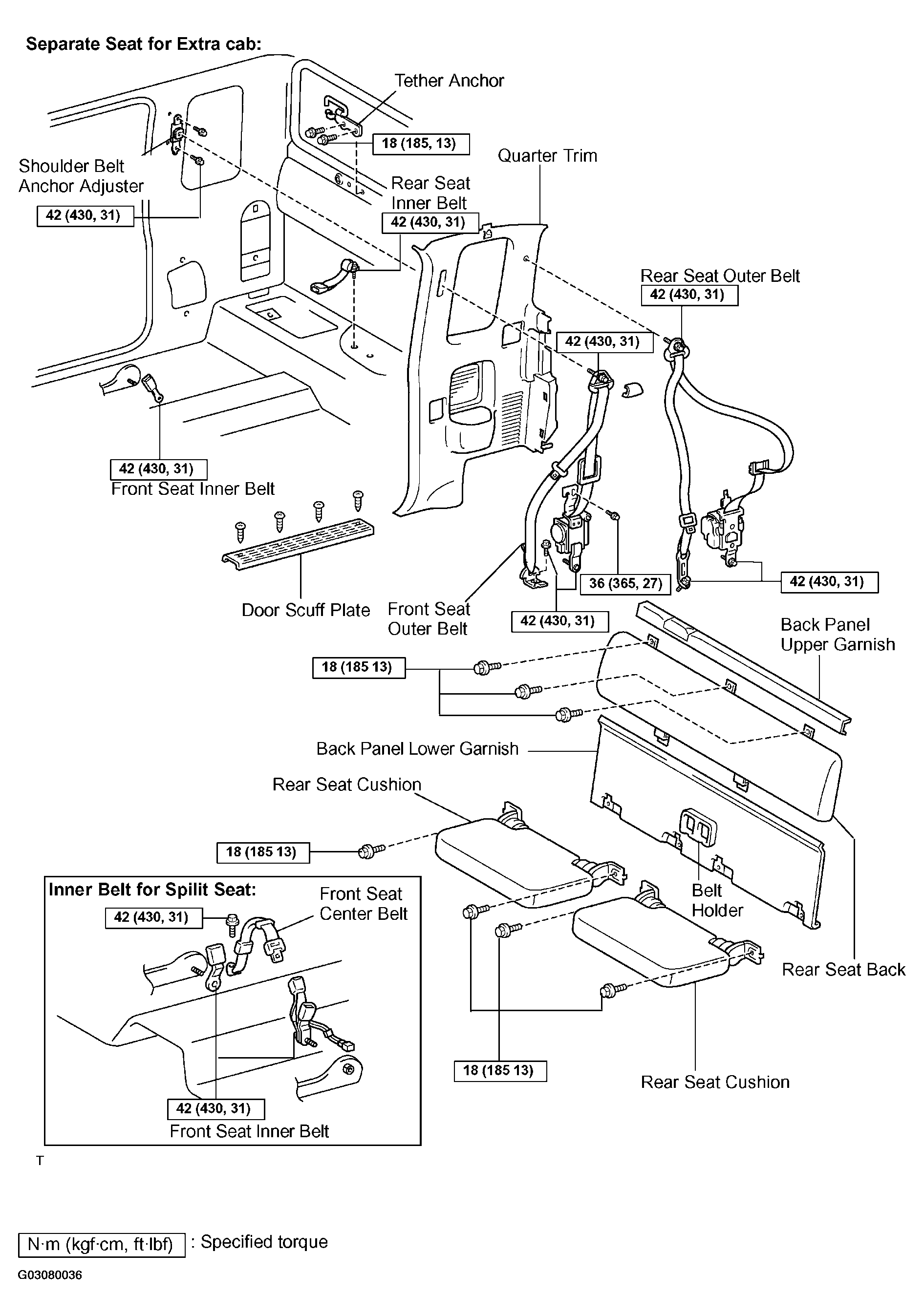

Fig 2: Locating Seat Belt Components (Extra Cab)
G03080036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

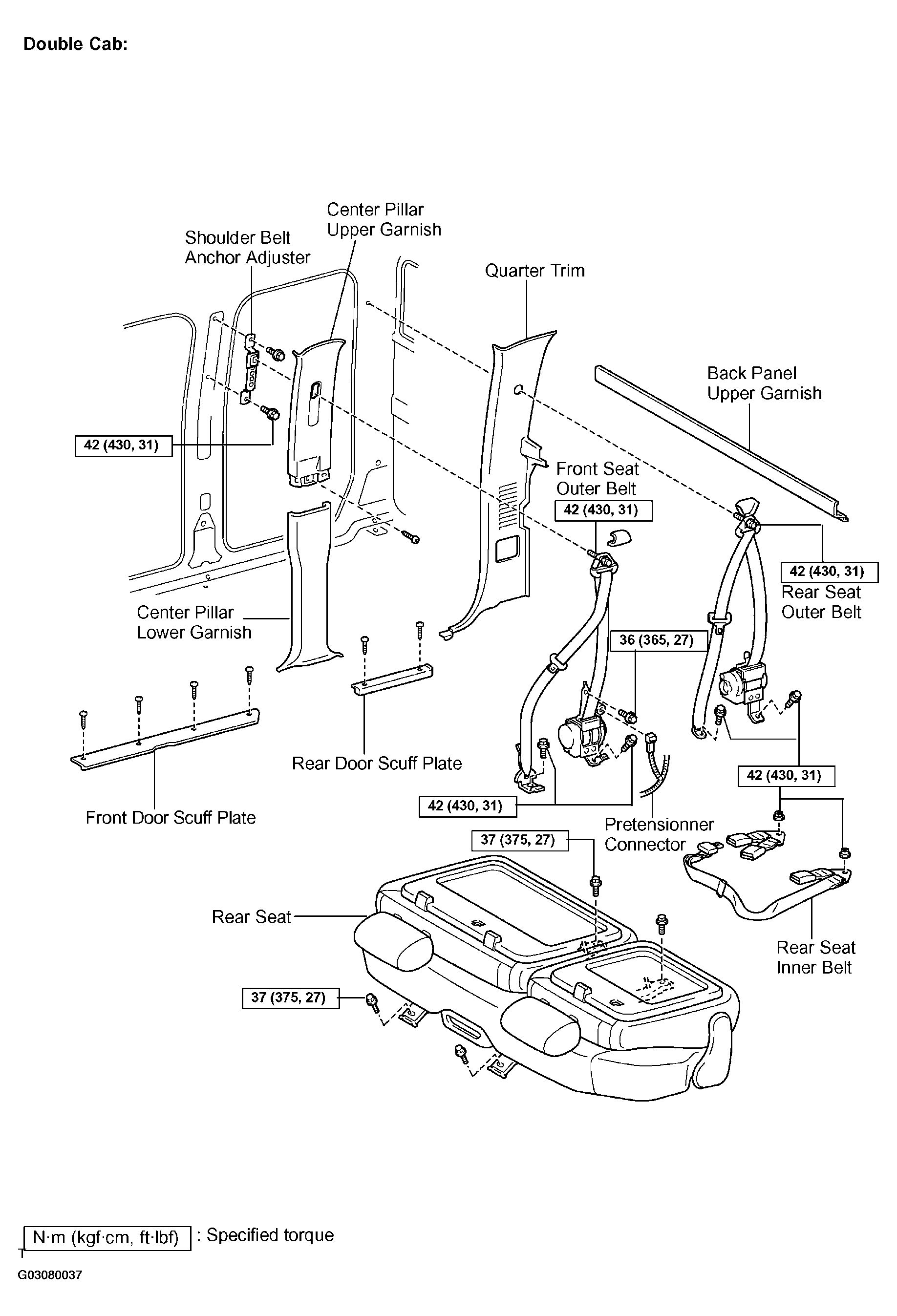

Fig 3: Locating Seat Belt Components (Double Cab)
G03080037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
