Body & Frame: Windows: Windshield: Components

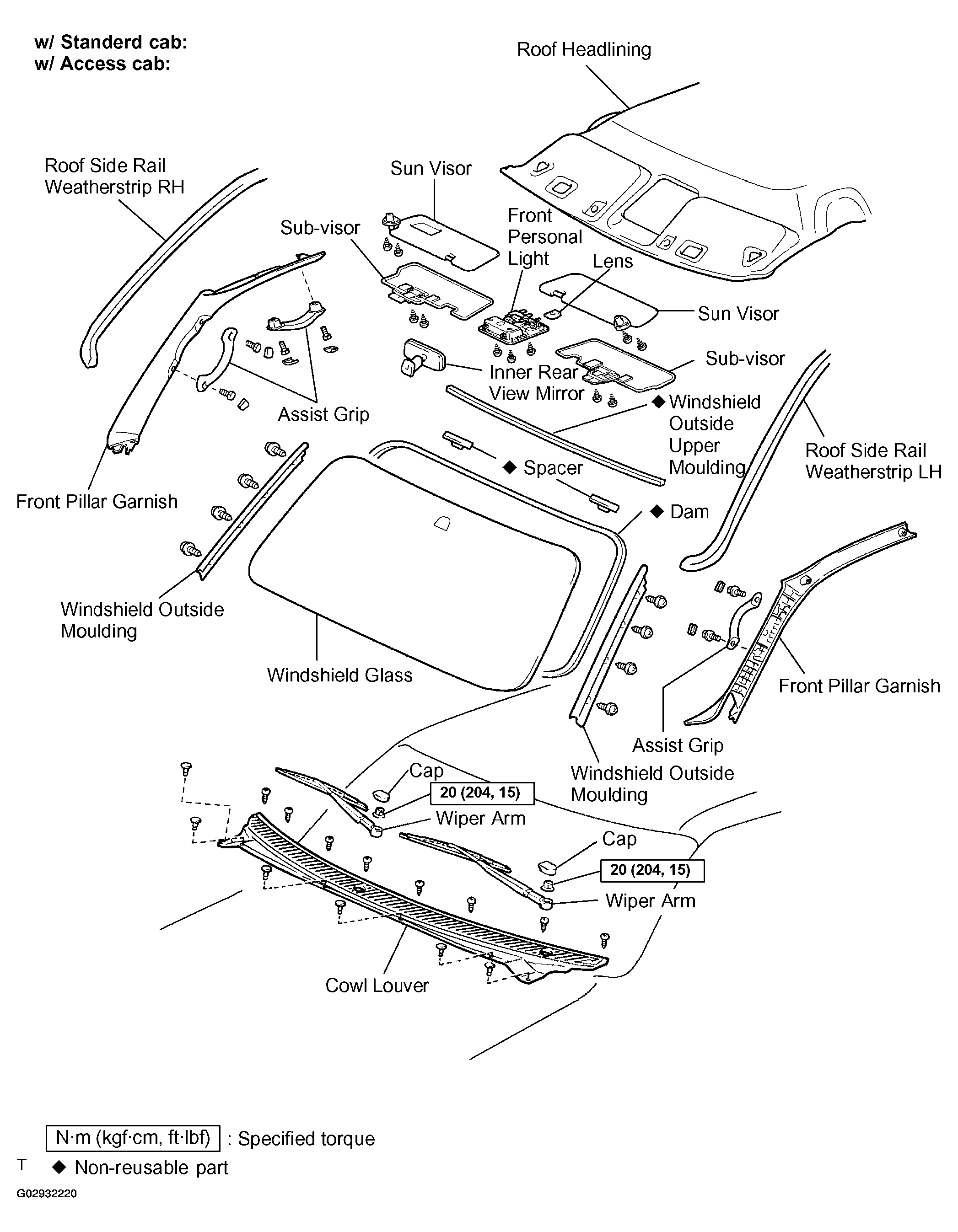

Fig 1: Identifying Windshield Components (Access Cab & Standard Cab)
G02932220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

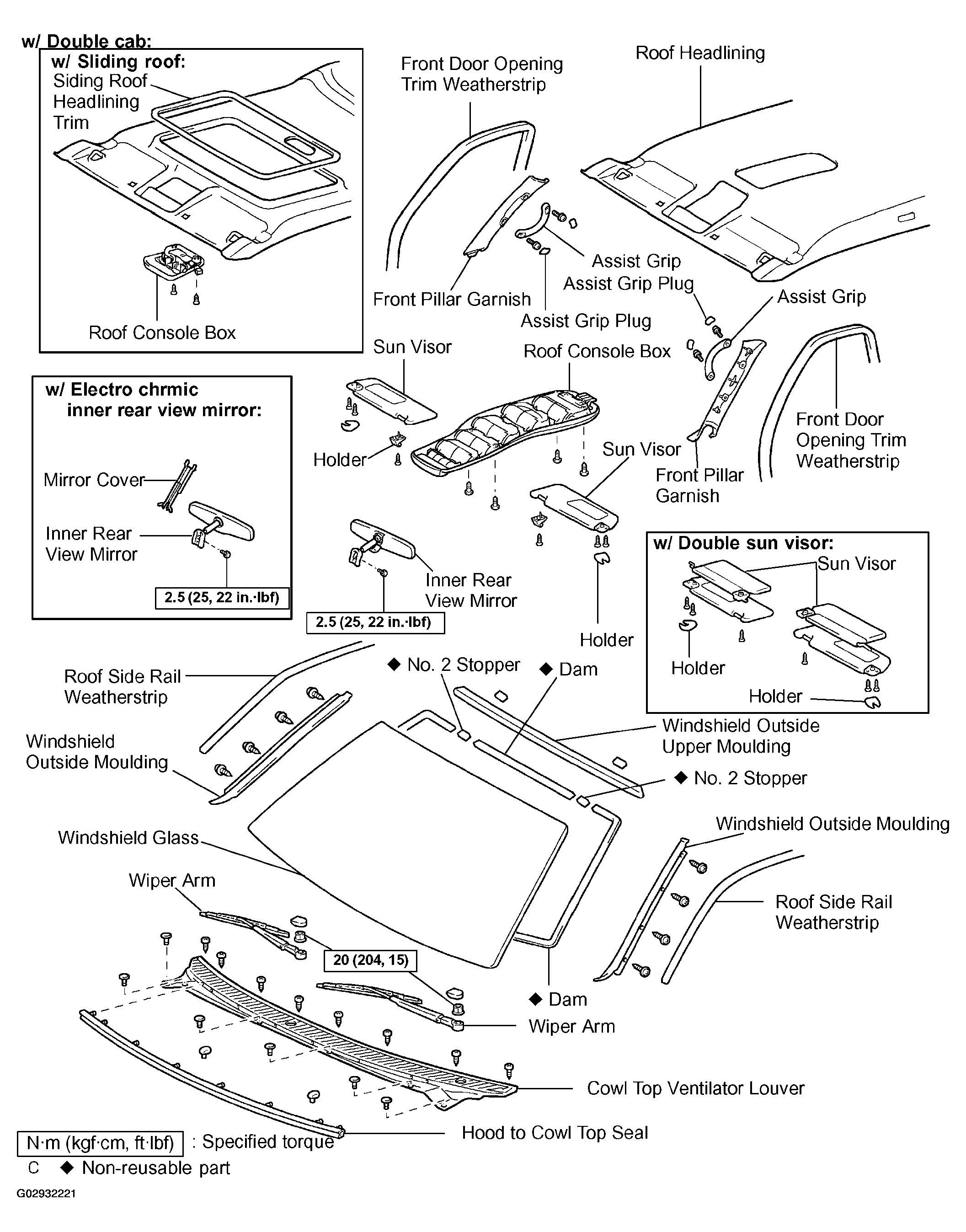

Fig 2: Identifying Windshield Components (Double Cab)
G02932221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
