Automatic Transmission System: Operation

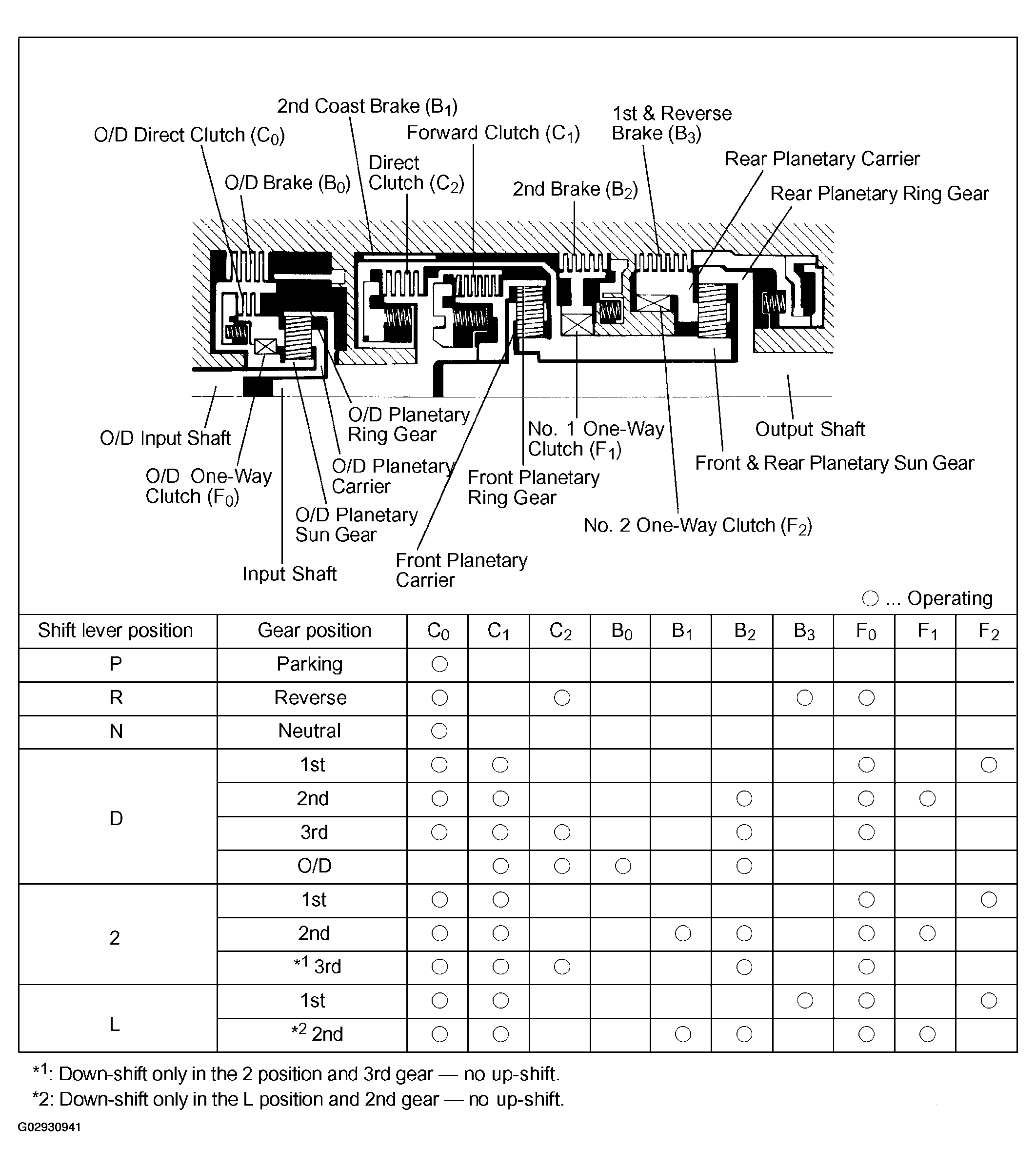

Fig 1: Cross Sectional View Of Automatic Transmission System Along With Operating Chart
G02930941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
