ACIS Control Circuit: Wiring Diagram

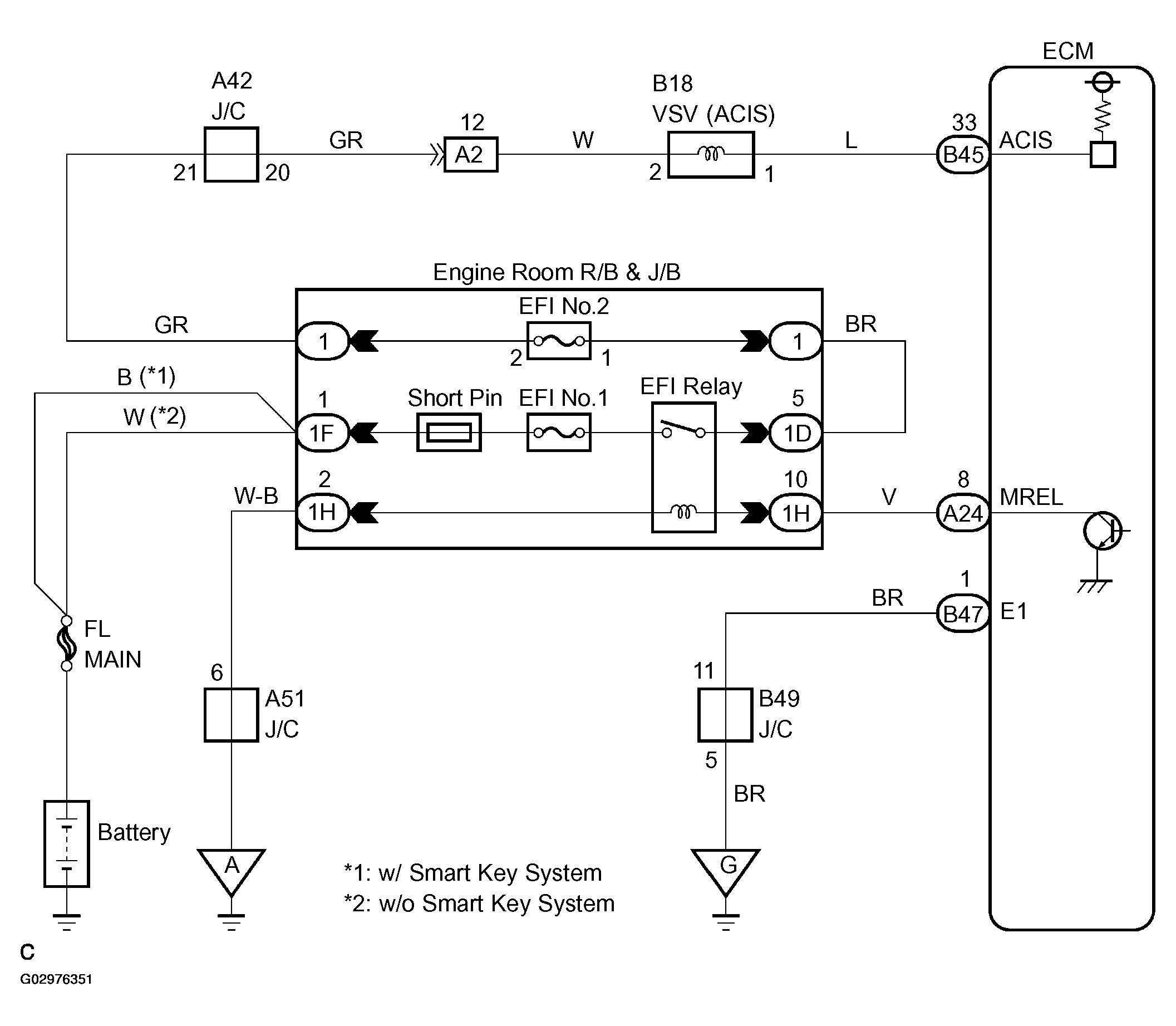

Fig 1: Identifying Wiring Diagram
G02976351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
