How To Proceed With Troubleshooting

Carry out troubleshooting in accordance with the procedure on the following illustration. Here, only the basic procedure is shown. Details are provided in Diagnostics article, showing the most effective methods for each circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning troubleshooting of that circuit.

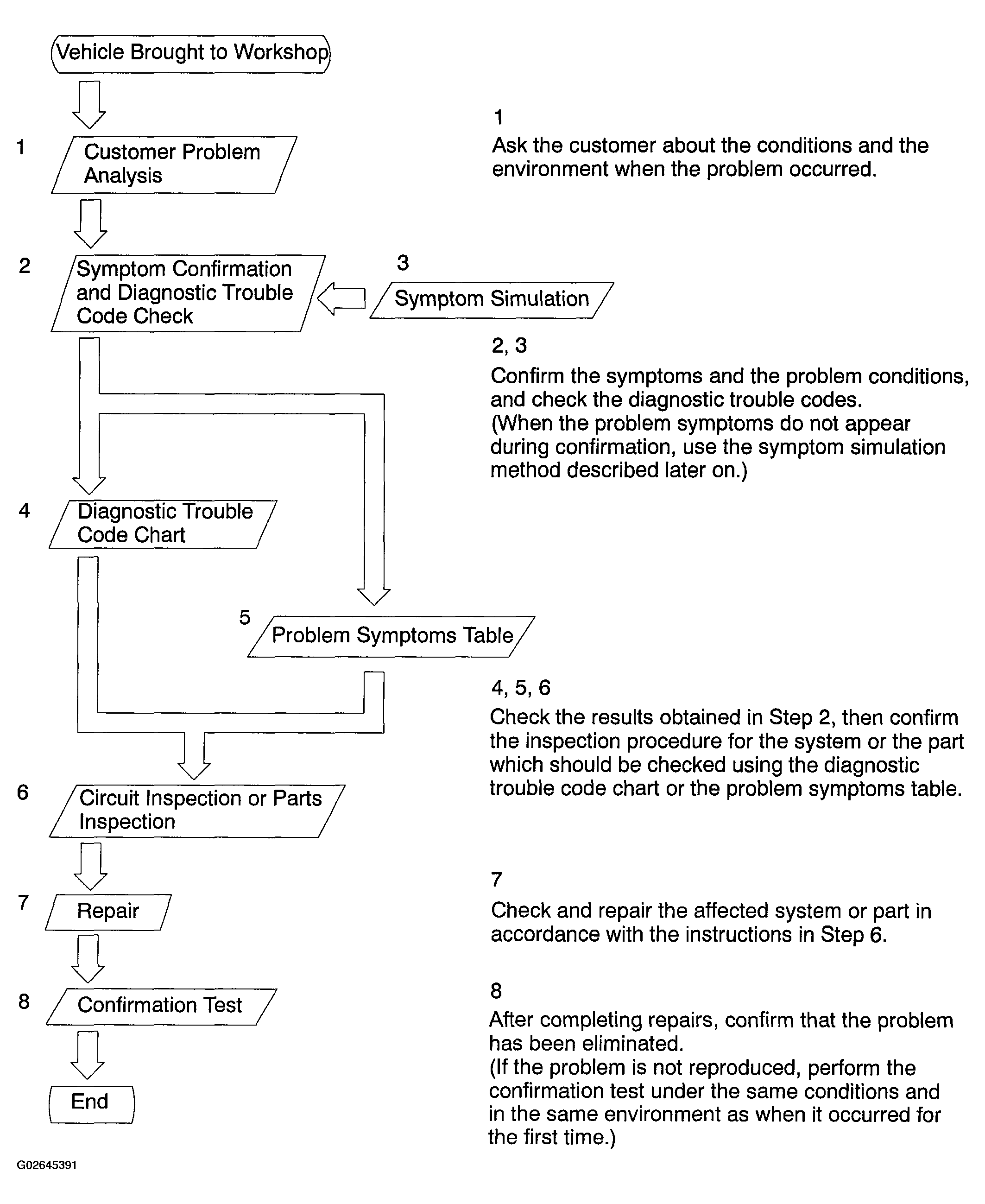

Fig 1: Troubleshooting Flow Chart
G02645391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CUSTOMER PROBLEM ANALYSIS: Go to next step.

    In troubleshooting, the problem symptoms must be confirmed accurately and all preconceptions must be cleared away in order to give an accurate judgment. To ascertain just what the problem symptoms are, it is extremely important to ask the customer about the problem and the conditions at the time it occurred.

    Important Point in the Problem Analysis:

    The following 5 items are important points in the problem analysis. Past problems which are thought to be unrelated and the repair history, etc. may also help in some cases, so as much information as possible should be gathered and its relationship with the problem symptoms should be correctly ascertained for reference in troubleshooting. A customer problem analysis table is provided in Diagnostics article for each system for your use.

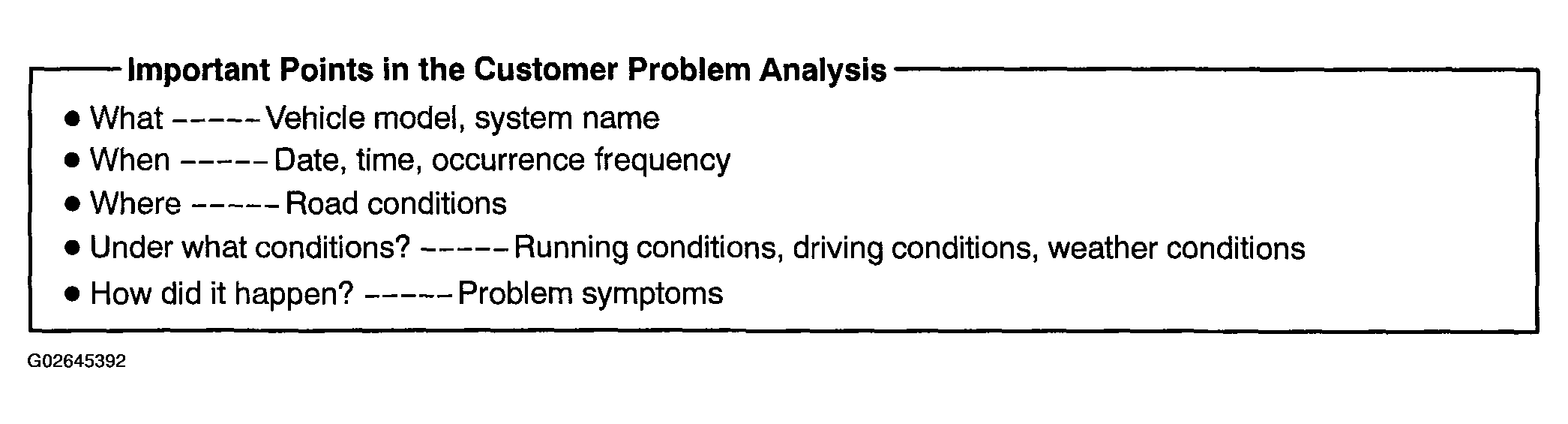

    Fig 2: Identifying Important Point In Problem Analysis Table
    G02645392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    (Sample) Engine control system check sheet.: Go to next step.

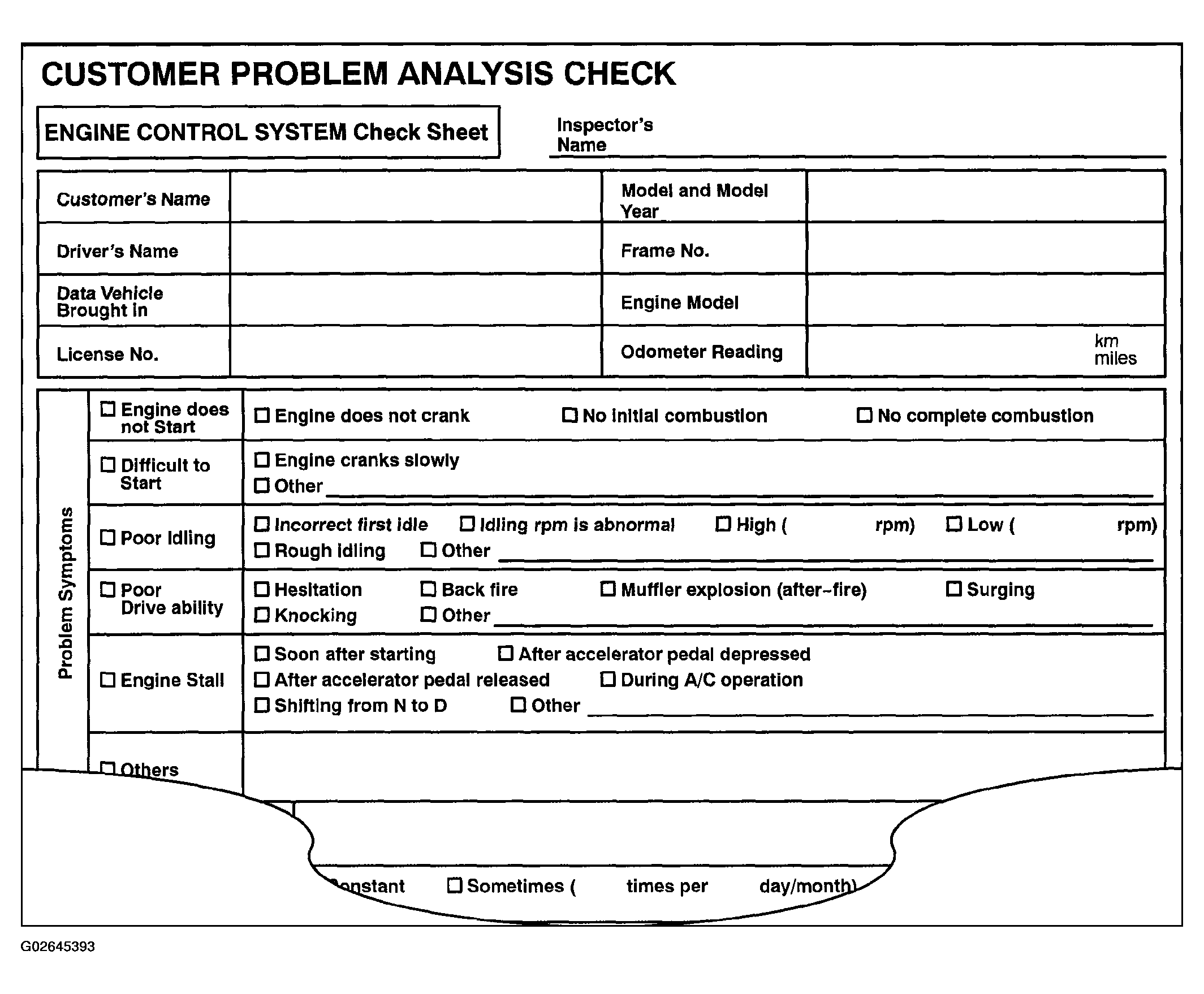

    Fig 3: Identifying Customer Problem Analysis Check Sheet
    G02645393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SYMPTOM CONFIRMATION AND DIAGNOSTIC TROUBLE CODE CHECK

    The diagnostic system in the CELICA fulfills various functions. The first function is the Diagnostic Trouble Code Check in which a malfunction in the signal circuits to the ECU is stored in code in the ECU memory at the time of occurrence, to be output by the technician during troubleshooting. Another function is the Input Signal Check which checks if the signals from various switches are sent to the ECU correctly.

    By using these check functions, the problem areas can be narrowed down quickly and troubleshooting can be performed effectively. Diagnostic functions are incorporated in the following systems in the CELICA.

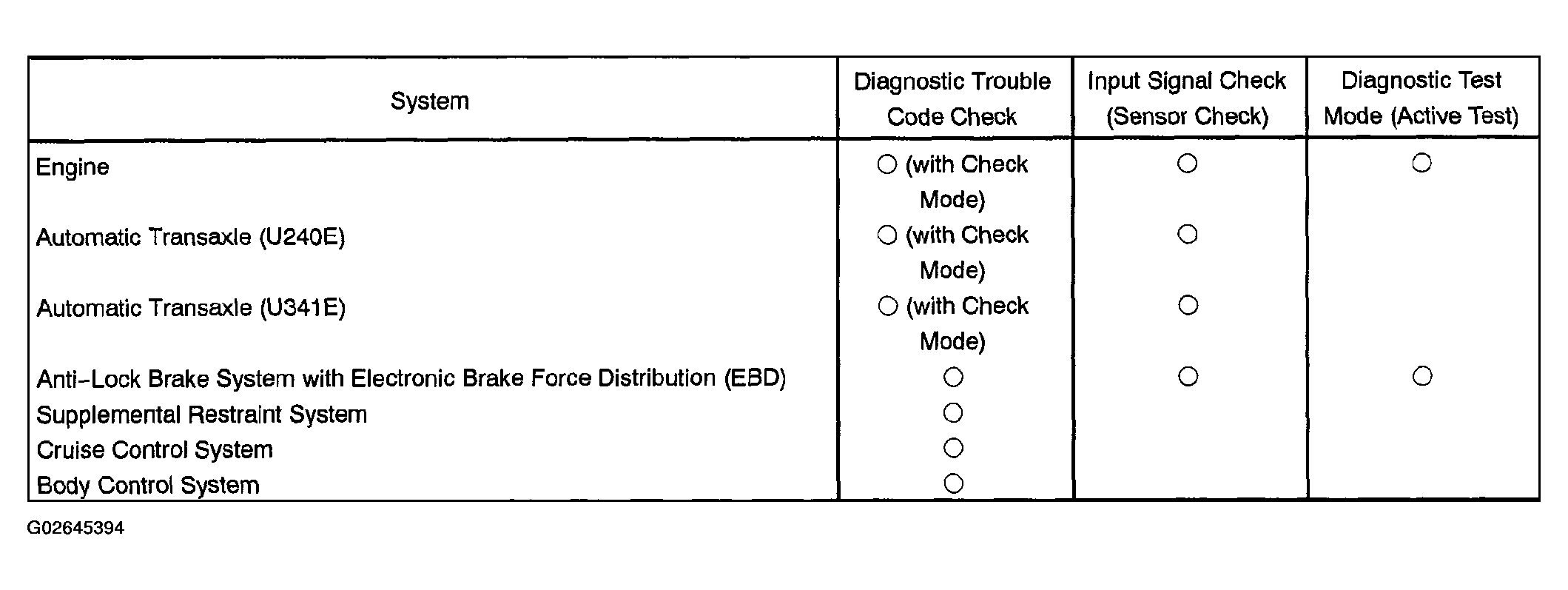

    Fig 4: Symptom Confirmation & Diagnostic Trouble Code Check Sheet
    G02645394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    In diagnostic trouble code check, it is very important to determine whether the problem indicated by the diagnostic trouble code is still occurring or occurred in the past but returned to normal at present. In addition, it must be checked in the problem symptom check whether the malfunction indicated by the diagnostic trouble code is directly related to the problem symptom or not. For this reason, the diagnostic trouble codes should be checked before and after the symptom confirmation to determine the current conditions, as shown in the Fig 5 below. If this is not done, it may, depending on the case, result in unnecessary troubleshooting for normally operating systems, thus making it more difficult to locate the problem, or in repairs not pertinent to the problem. Therefore, always follow the procedure in correct order and perform the diagnostic trouble code check.

    DIAGNOSTIC TROUBLE CODE CHECK PROCEDURE: Go to next step.

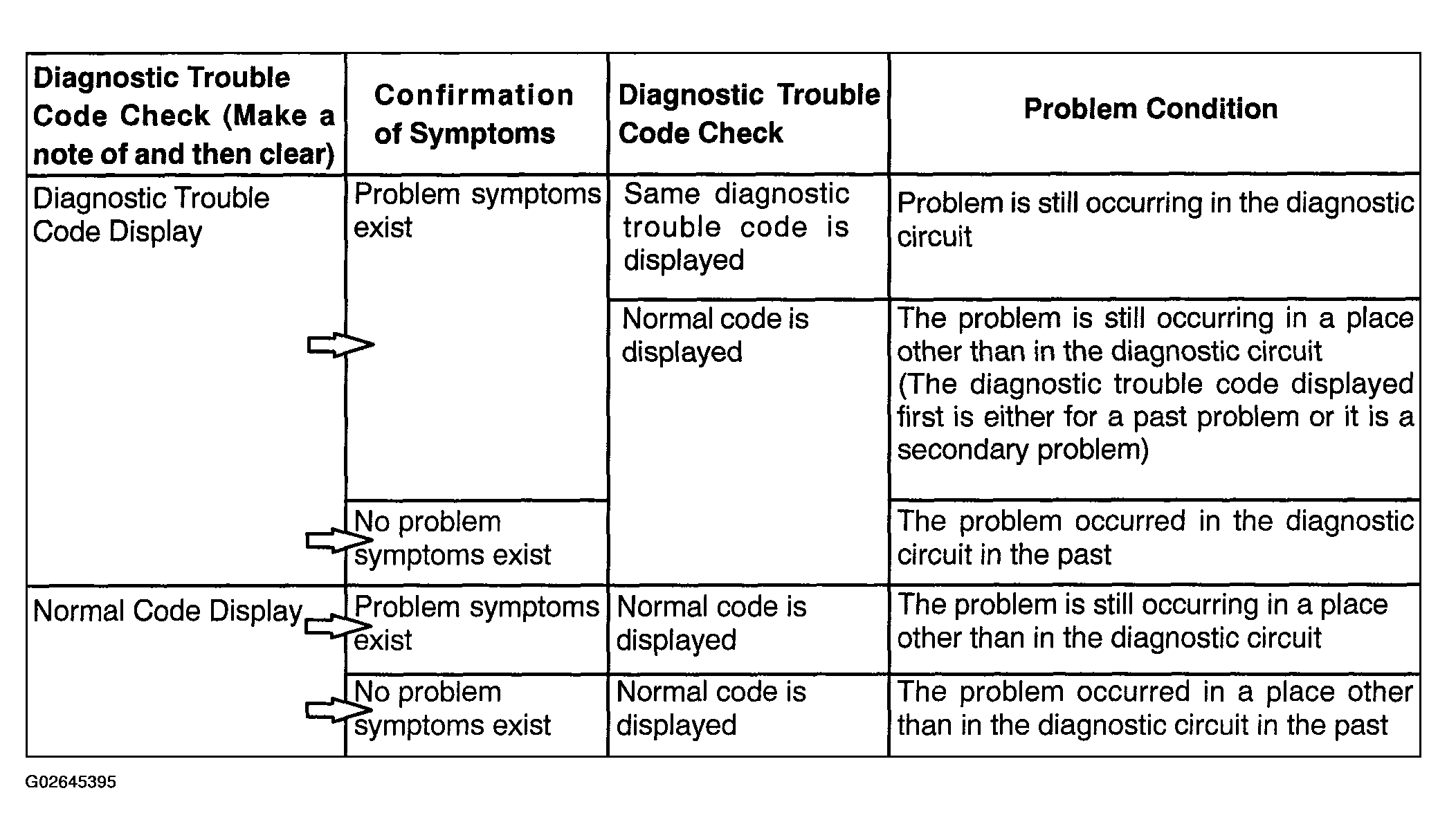

    Fig 5: Diagnostic Trouble Code Check Procedure
    G02645395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Taking into account the points on the previous illustration, a flow chart showing how to proceed with troubleshooting using the diagnostic trouble code check is shown below. This flow chart in Fig 6 shows how to utilize the diagnostic trouble code check effectively, then by carefully checking the results, indicates how to proceed either to diagnostic trouble code troubleshooting or to troubleshooting of problem symptoms table.

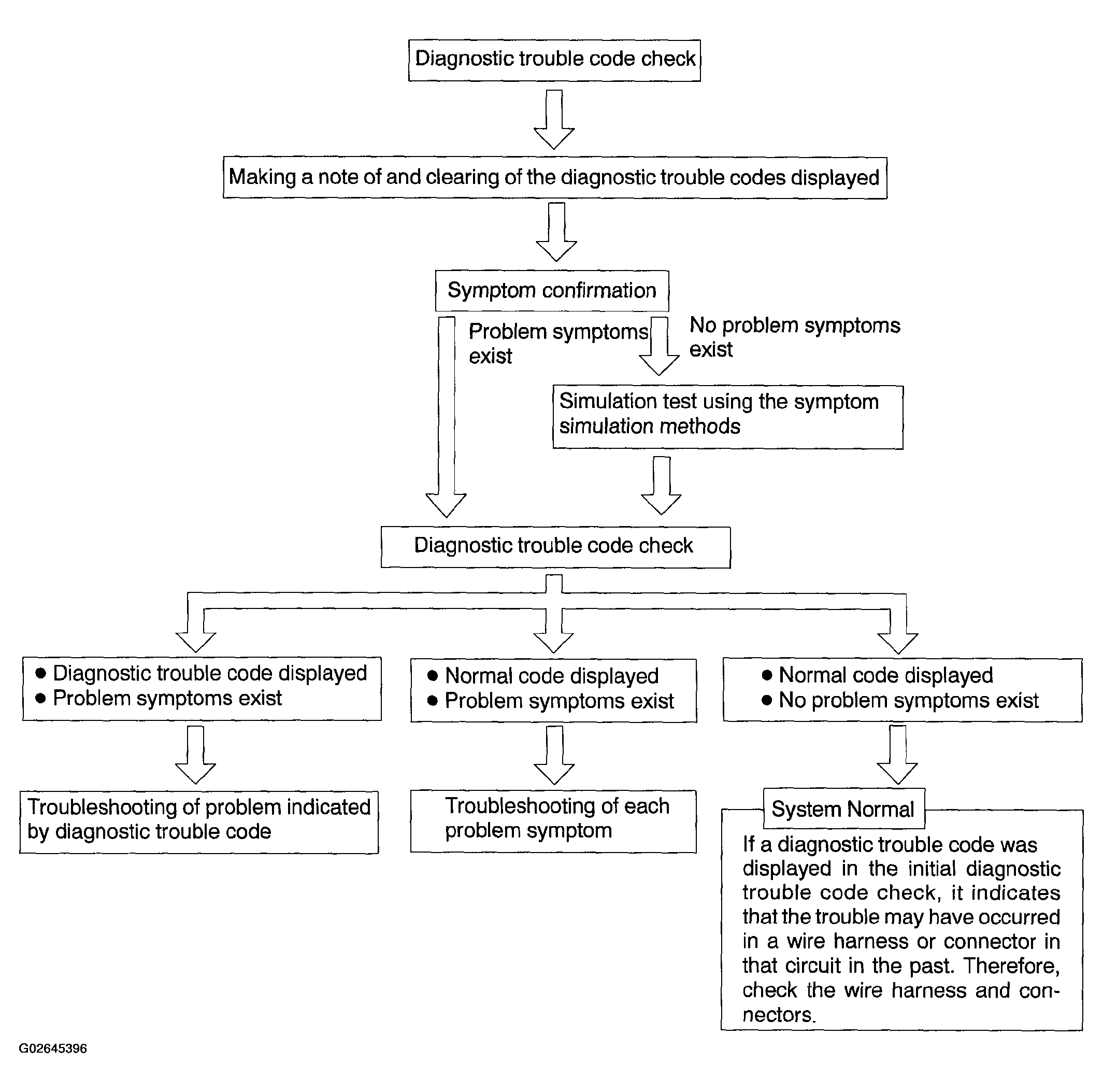

    Fig 6: Diagnostic Trouble Code Check Flow Chart
    G02645396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. SYMPTOM SIMULATION: Go to next step.

    The most difficult case in troubleshooting is when there are no problem symptoms occurring. In such cases, a thorough customer problem analysis must be carried out, then simulate the same or similar conditions and environment in which the problem occurred in the customer's vehicle. No matter how much experience a technician has, or how skilled he may be, if he proceeds to troubleshoot without confirming the problem symptoms he will tend to overlook something important in the repair operation and make a wrong guess somewhere, which will only lead to a standstill. For example, for a problem which only occurs when the engine is cold, or for a problem which occurs due to vibration caused by the road during driving, etc., the problem can never be determined so long as the symptoms are confirmed with the engine hot condition or the vehicle at a standstill. Since vibration, heat or water penetration (moisture) is likely cause for problem which is difficult to reproduce, the symptom simulation tests introduced here are effective measures in that the external causes are applied to the vehicle in a stopped condition.

    Important Points in the Symptom Simulation Test:

    In the symptom simulation test, the problem symptoms should of course be confirmed, but the problem area or parts must also be found out. To do this, narrow down the possible problem circuits according to the symptoms before starting this test and connect a tester beforehand. After that, carry out the symptom simulation test, judging whether the circuit being tested is defective or normal and also confirming the problem symptoms at the same time. Refer to the problem symptoms table for each system to narrow down the possible causes of the symptom.

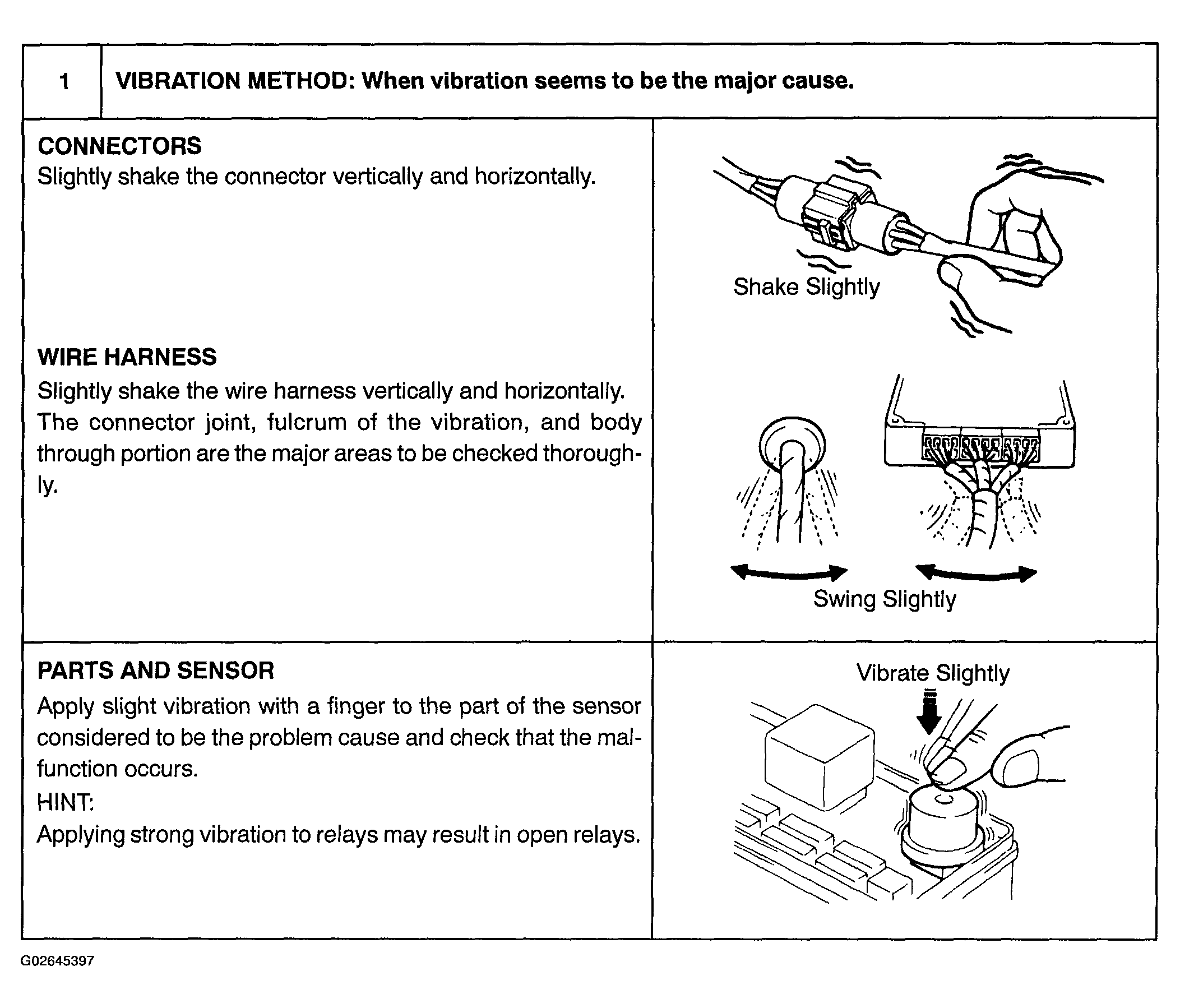

    Fig 7: Identifying Symptom Simulation Test (Vibration Method)
    G02645397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

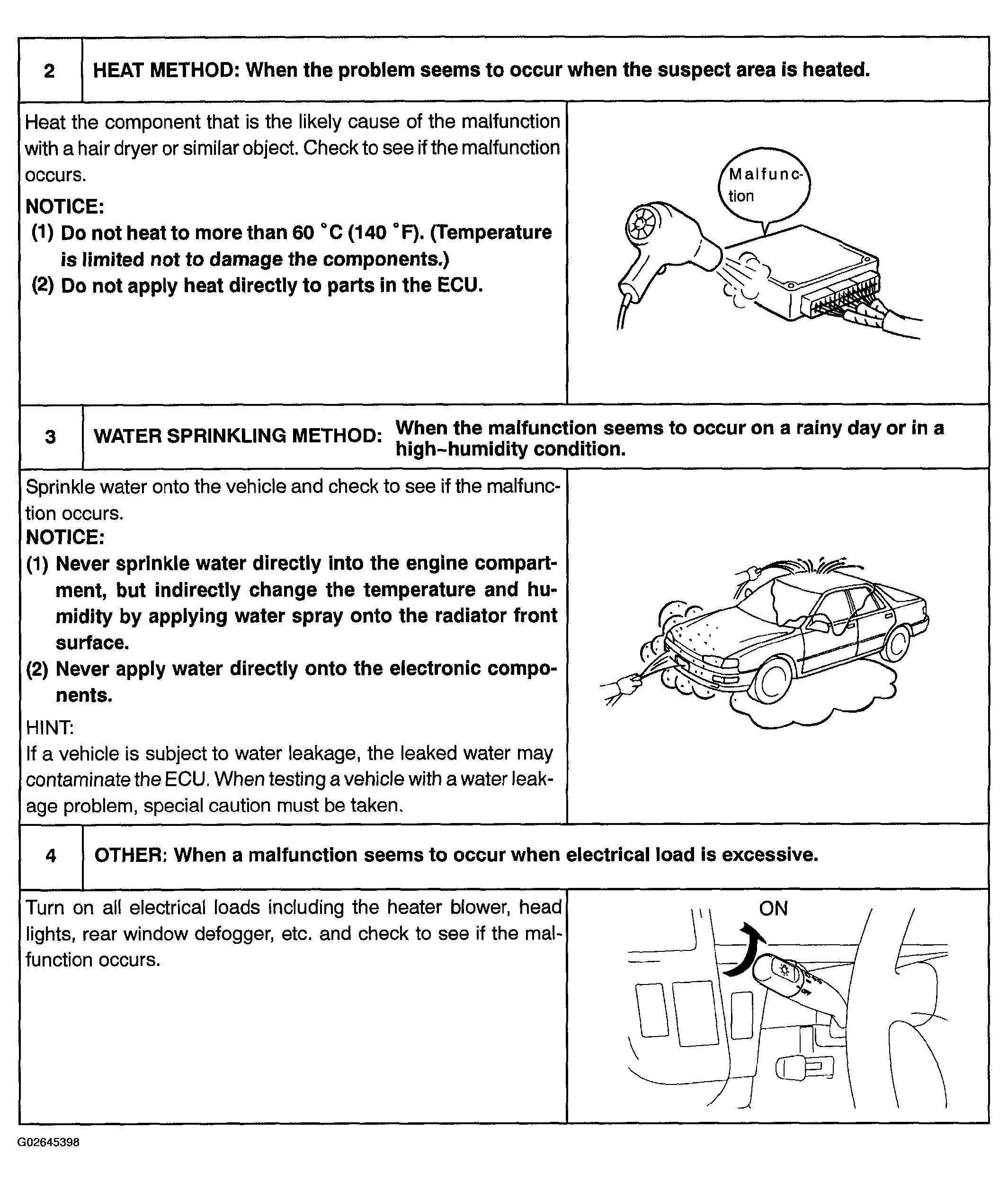

    Fig 8: Identifying Symptom Simulation Test (Heat Method)
    G02645398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DIAGNOSTIC TROUBLE CODE TABLE: Go to next step.

    This table permits efficient and accurate troubleshooting using the diagnostic trouble codes displayed in the diagnostic trouble code check. Proceed with troubleshooting in accordance with the inspection procedure given in the diagnostic chart corresponding to the diagnostic trouble codes displayed.

  5. PROBLEM SYMPTOMS TABLE

    HINT:

    When the problem is not detected by the diagnostic system even though the problem symptom is present, it is considered that the problem is occurring outside the detection range of the diagnostic system, or that the problem is occurring in a system other than the diagnostic system.

  6. CIRCUIT INSPECTION: Go to next step.

    Each Diagnostic Trouble Code (DTC) procedure, provides a circuit description, DTC detecting condition, trouble area and wiring diagram when applicable.
