Fuel Injector ASSY (1ZZ-FE): Components

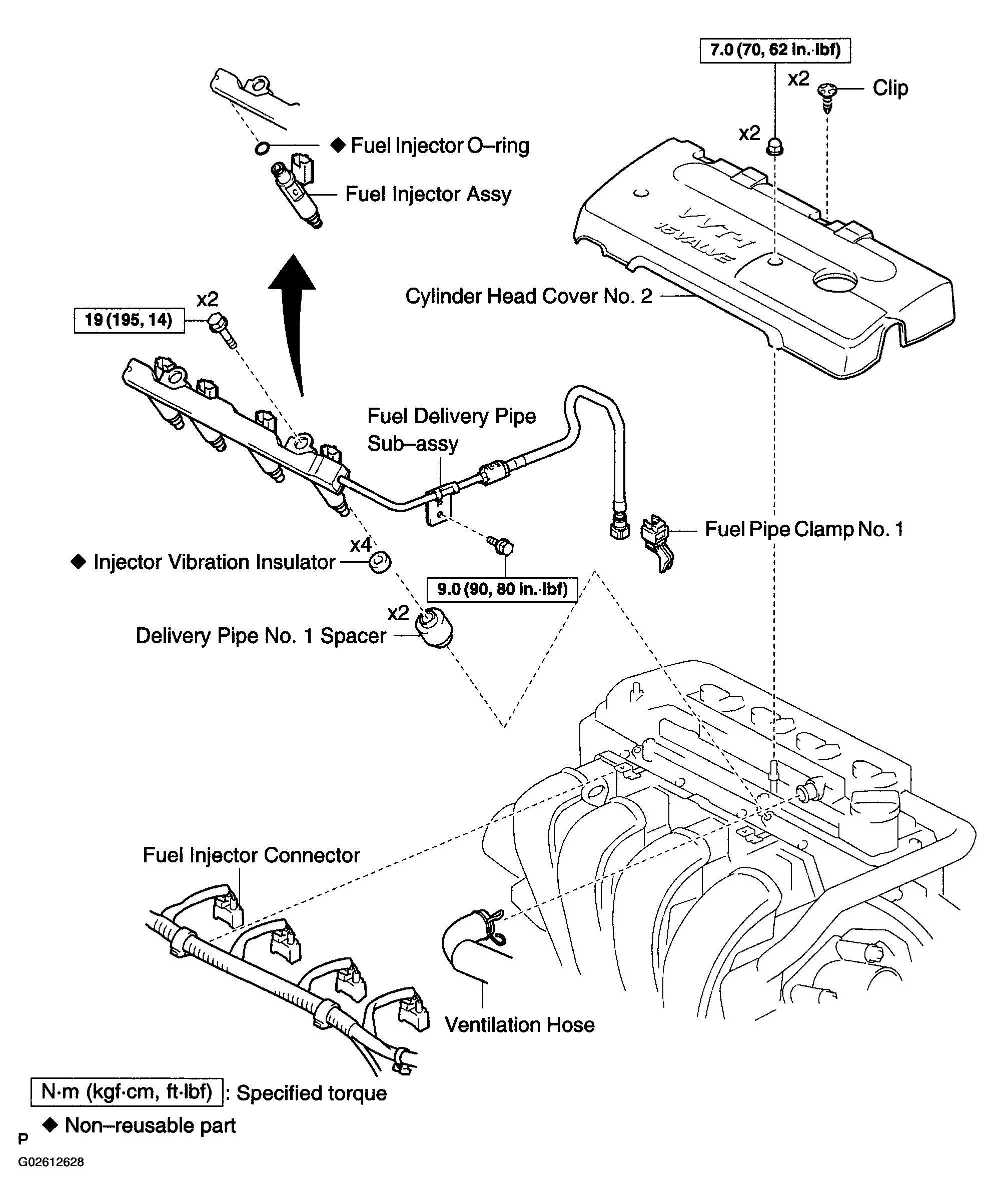

Fig 1: Identifying Fuel Injector Assy (1ZZ-FE) Components
G02612628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
