Power Steering Vane Pump: Components

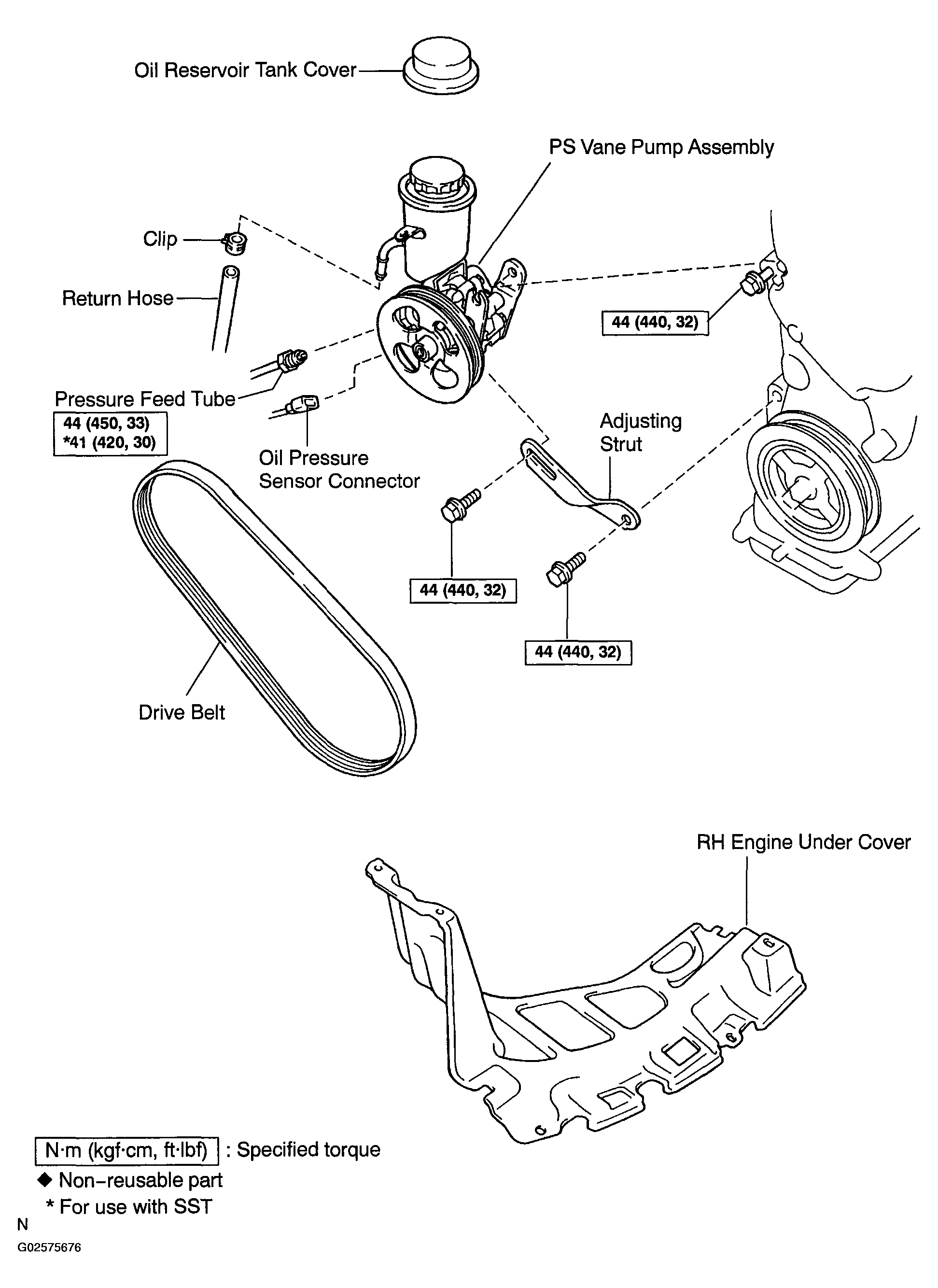

Fig 1: Removing Power Steering Vane Pump Components (1 Of 2)
G02575676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

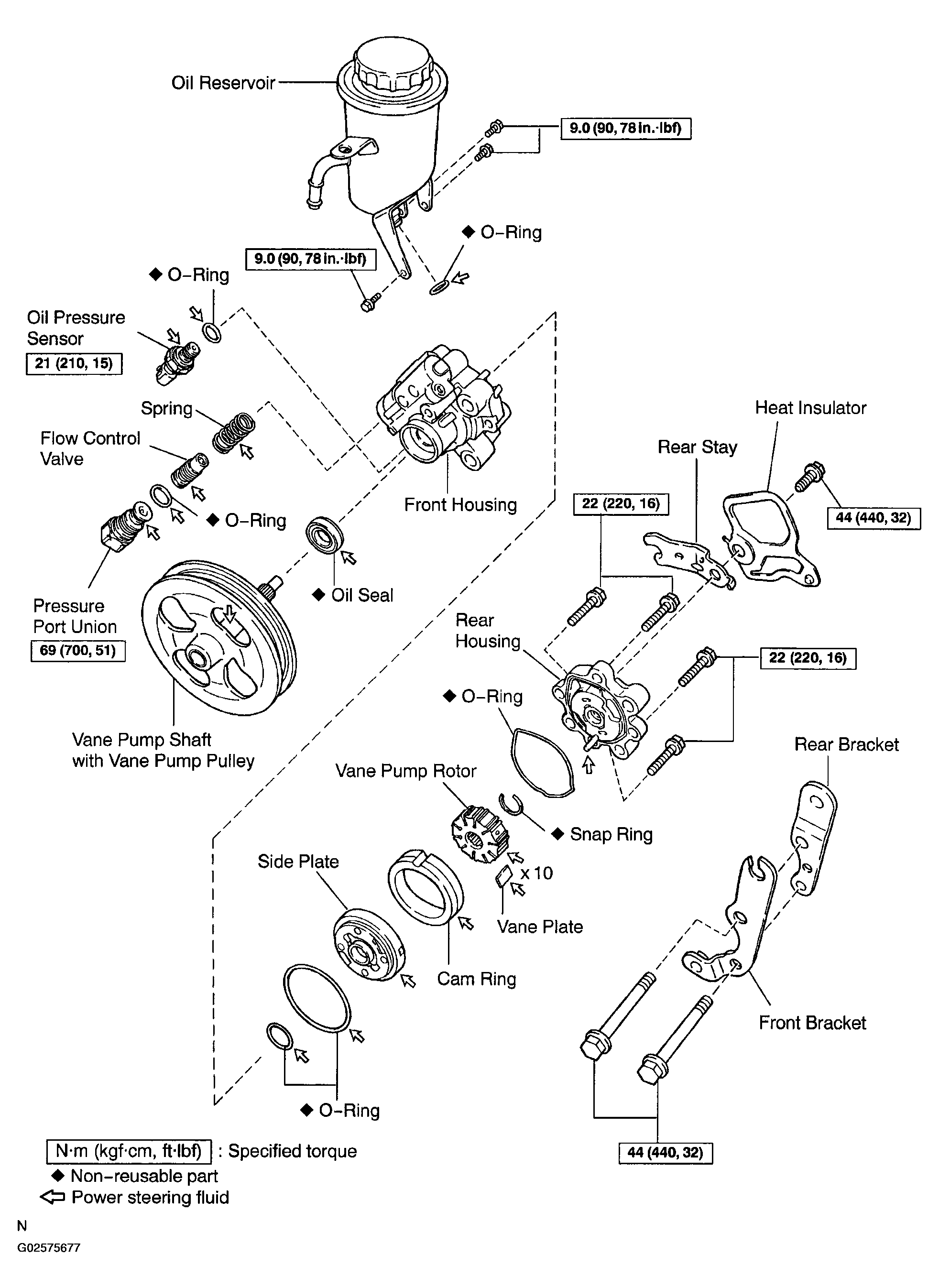

Fig 2: Removing Power Steering Vane Pump Components (2 Of 2)
G02575677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
