Power Window Control System - Diagnostics: Location

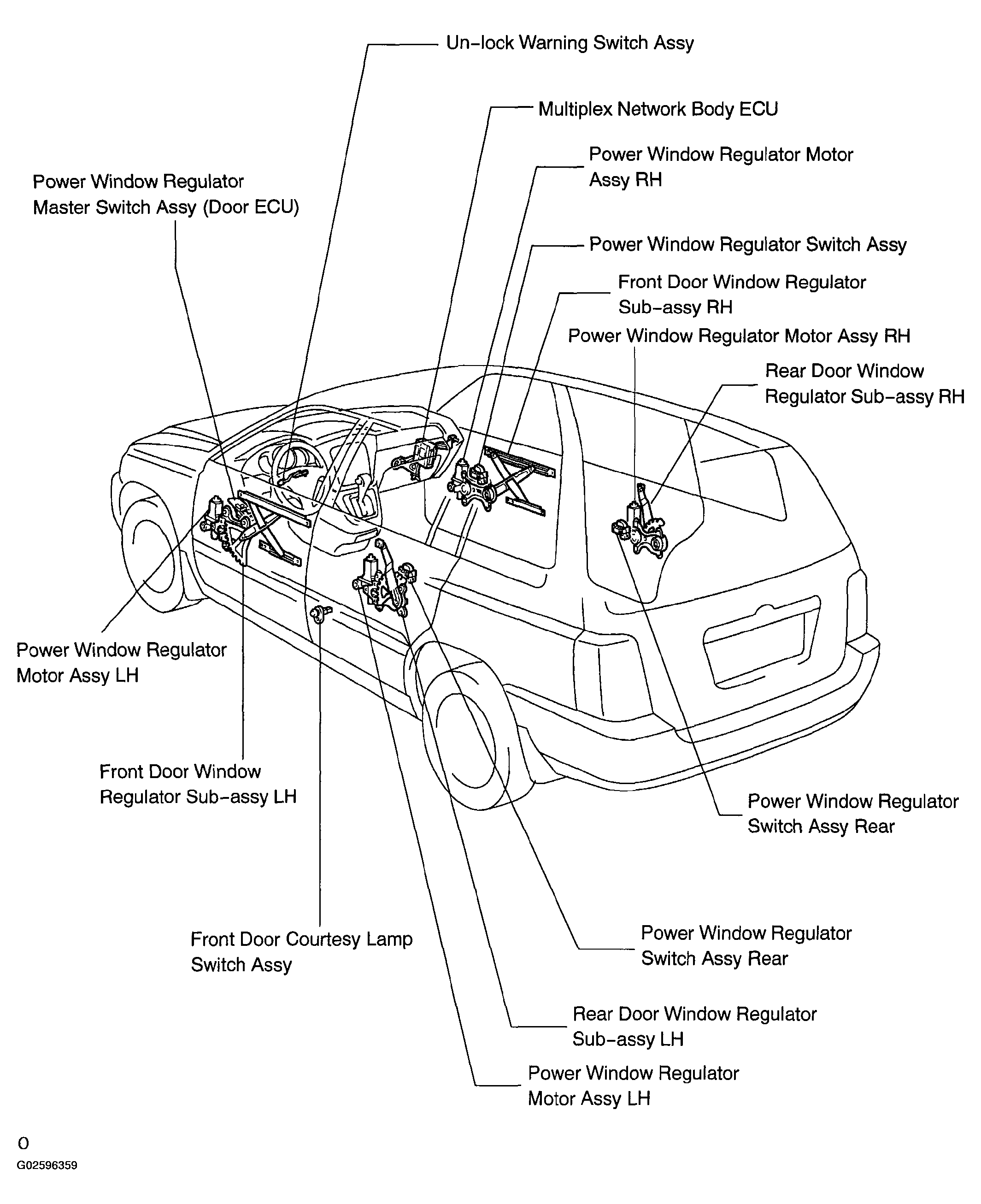

Fig 1: Identifying Location - Power Window Control System Components
G02596359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
