Charging System: Generator: Replacement

REPLACE FRONT BEARING
1. Remove the 4 screws, bearing retainer and bearing.

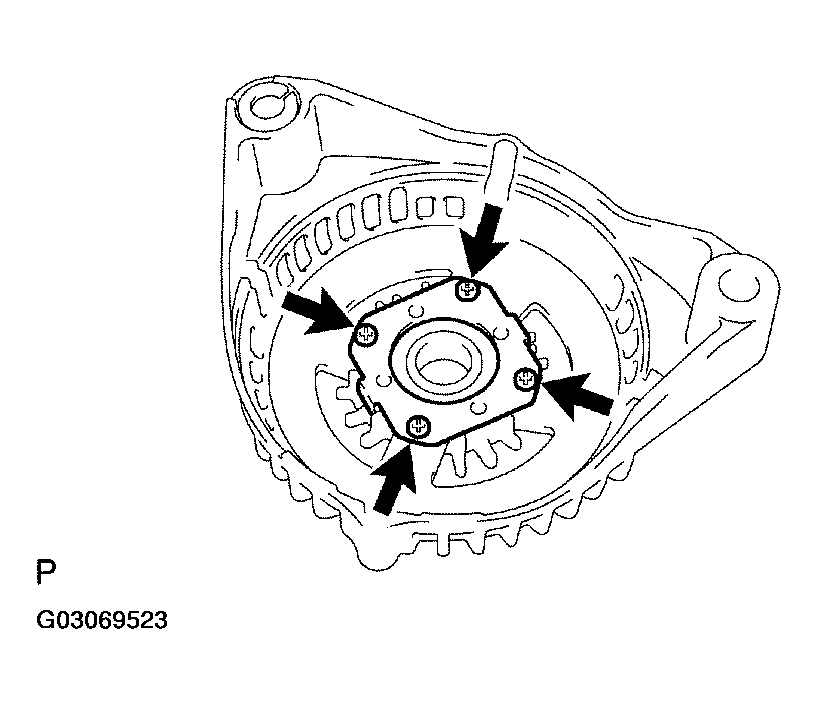

  Fig 1: Identifying Front Bearing Retainer Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the bearing.
  SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

  Fig 2: Tapping Out Bearing Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing.
  SST 09950-60010 (09951-00470), 09950-70010 (09951-07100)

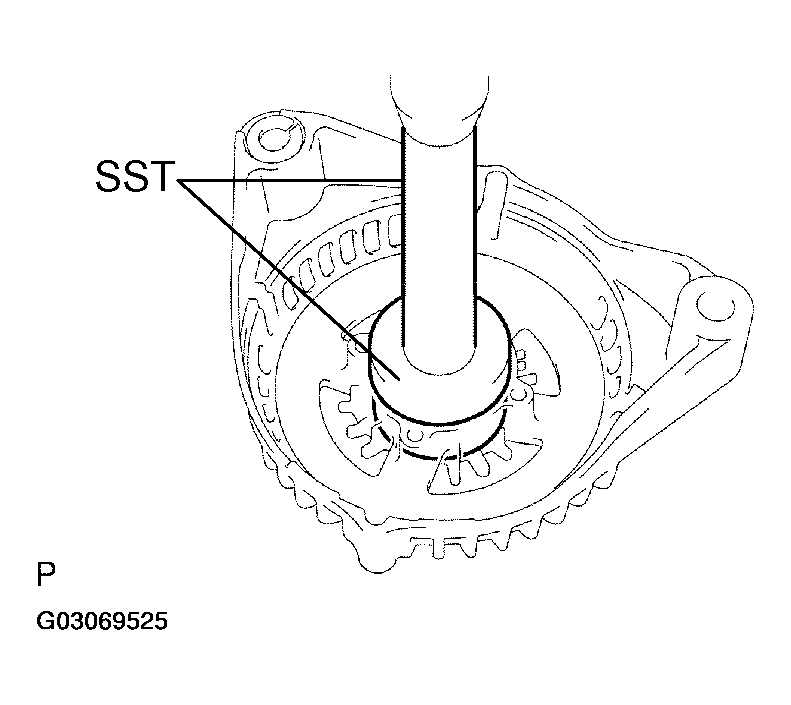

  Fig 3: Installing Bearing Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the bearing retainer with the 4 screws.
  Torque: 2.3 N.m (23 kgf.cm, 20 in.lbf)
