Seat Belt: Components

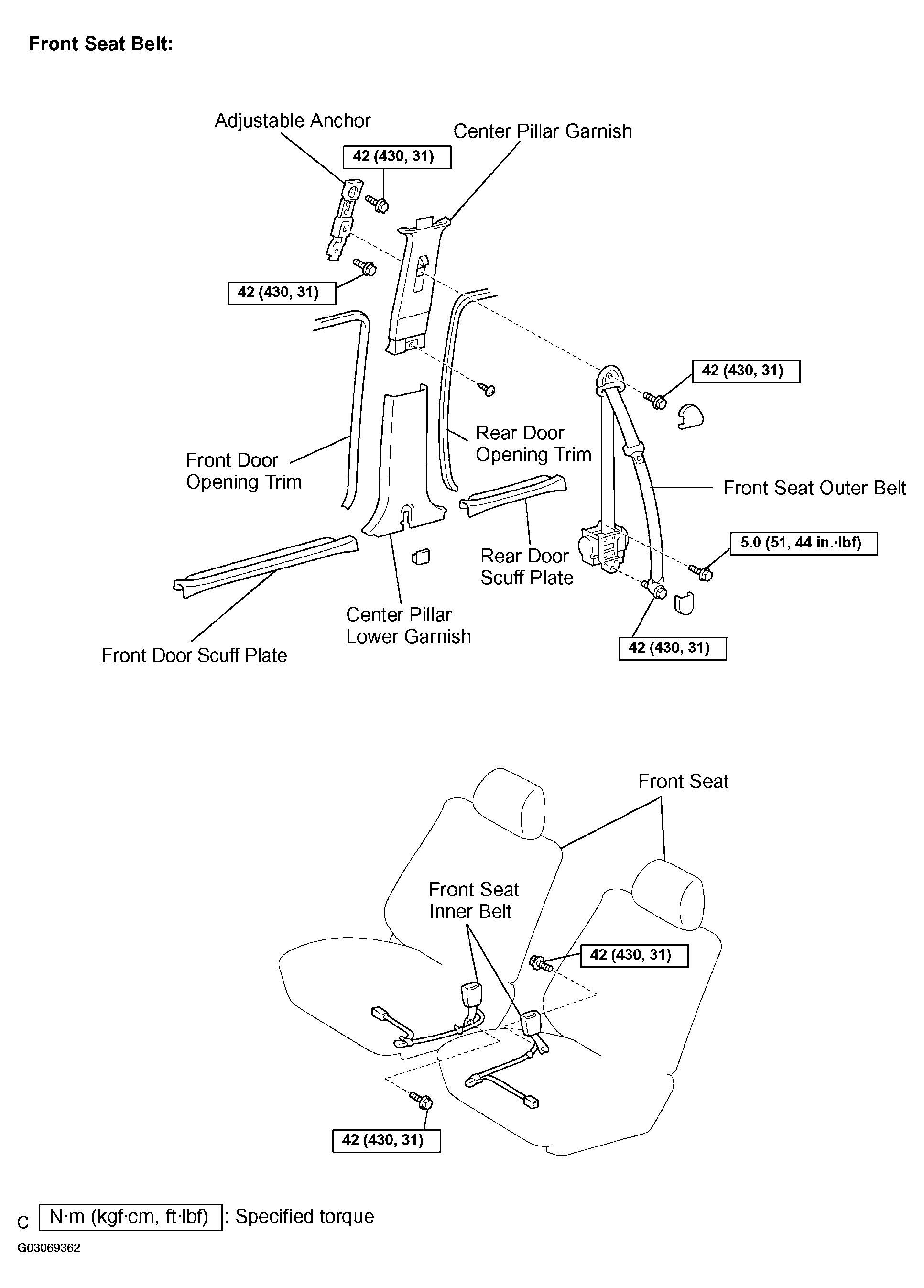

Fig 1: Identifying Front Seat Belt Components
G03069362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

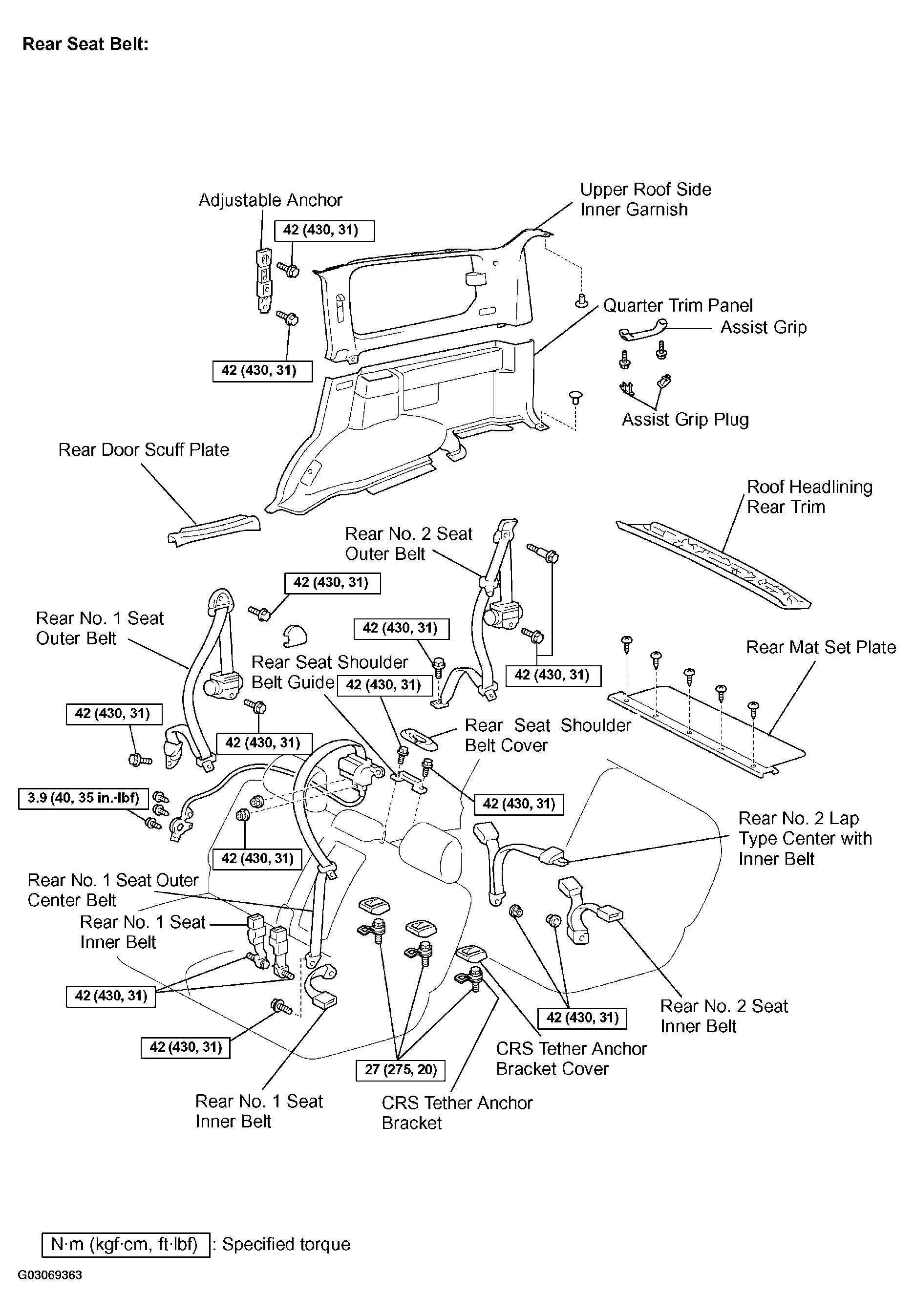

Fig 2: Identifying Rear Seat Belt Components
G03069363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
